Top Quality Black PVC Single Side Tie for Conductor
Qingdao Powtech Electronics Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：PVC Single Side Tie
- Sheath Material：PVC
- Insulation Material：PVC
- Certification：RoHS, CCC, ISO, SGS
Base Info
- Model NO.：PSCB
- Name：Single Side Tie
- Color：Black
- Condition：New
- Transport Package：Wooden Case
- Specification：CE, RoHS, SGS, ISO
- Trademark：OPTELEC
- Origin：China
- HS Code：73089000
- Production Capacity：10000PCS,Month
Description

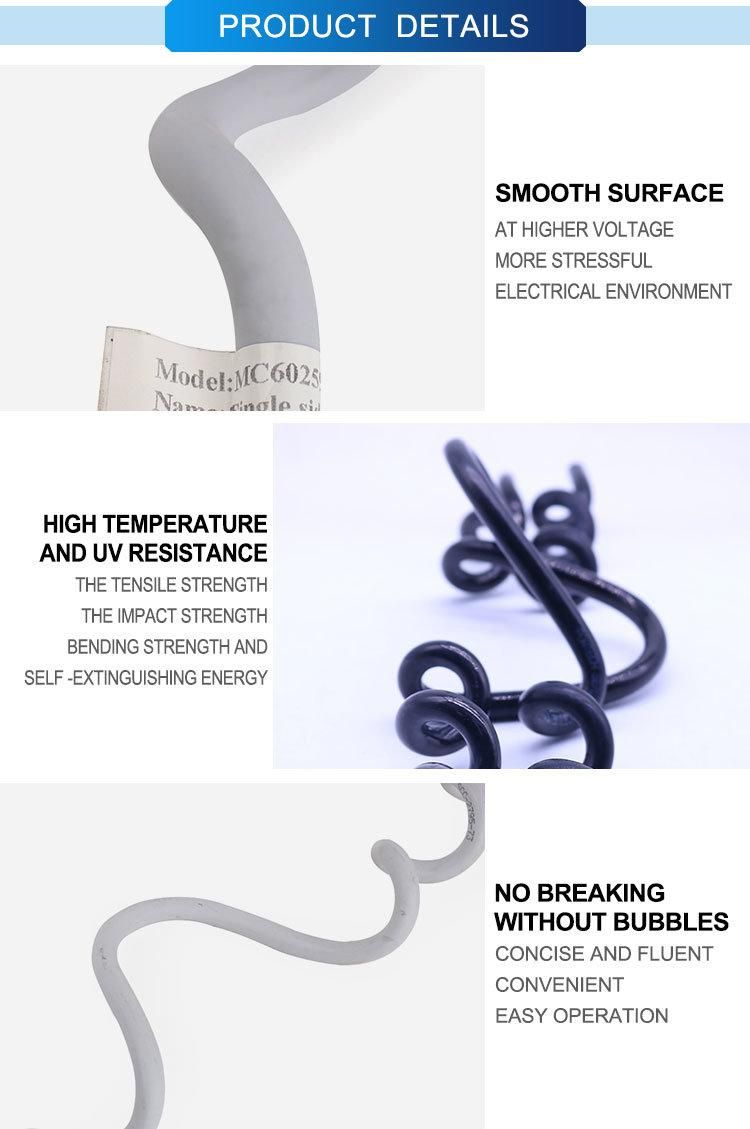

PVC plastic single side ties are intended for use with covered conductors and side-mounted tie top insulators on arm less construction.Line angles of up to 15°can be accommodated when used with any plastic covered conductors.
Material:

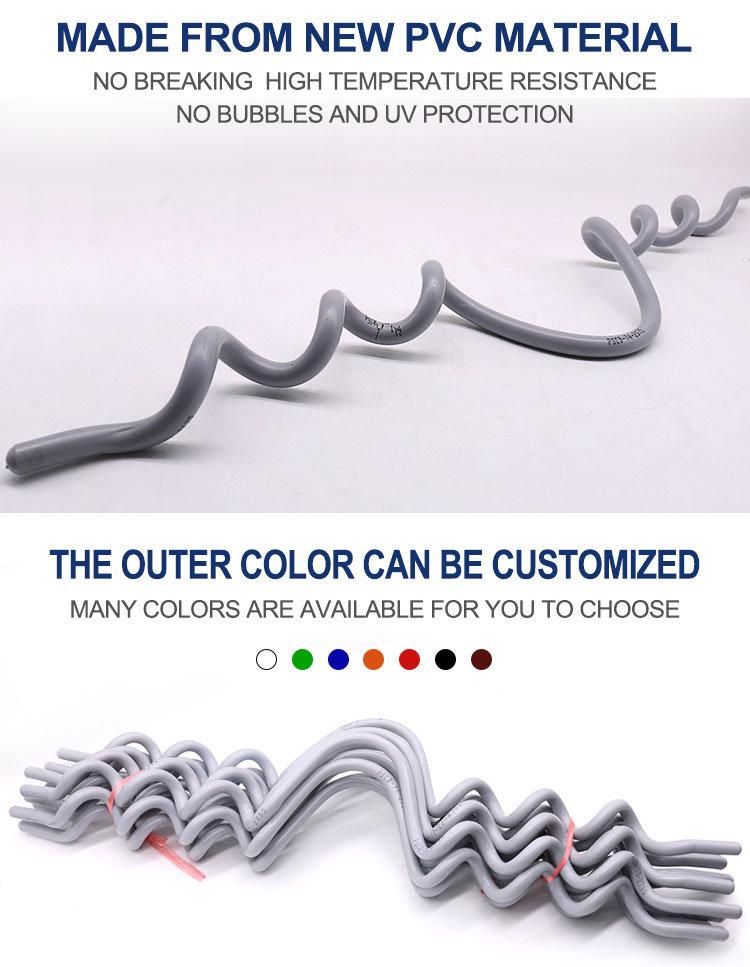

PVC plastic single side ties are made from white PVC.This material was selected for UV resistance,tensile strength,impact strength, flexural strength and self-extinguishing properties
Application: voltage to 15kV
Mechanical:PVC plastic single side ties will develop unbalanced and lift-off loads equivalent to,or in excess of, a hand tie over covered conductor.
Insulator:57mm(C neck),73mm(F neck). PVC plastic single side ties are used with either ANSI compliant polymer or porcelain insulators.
Length (mm)

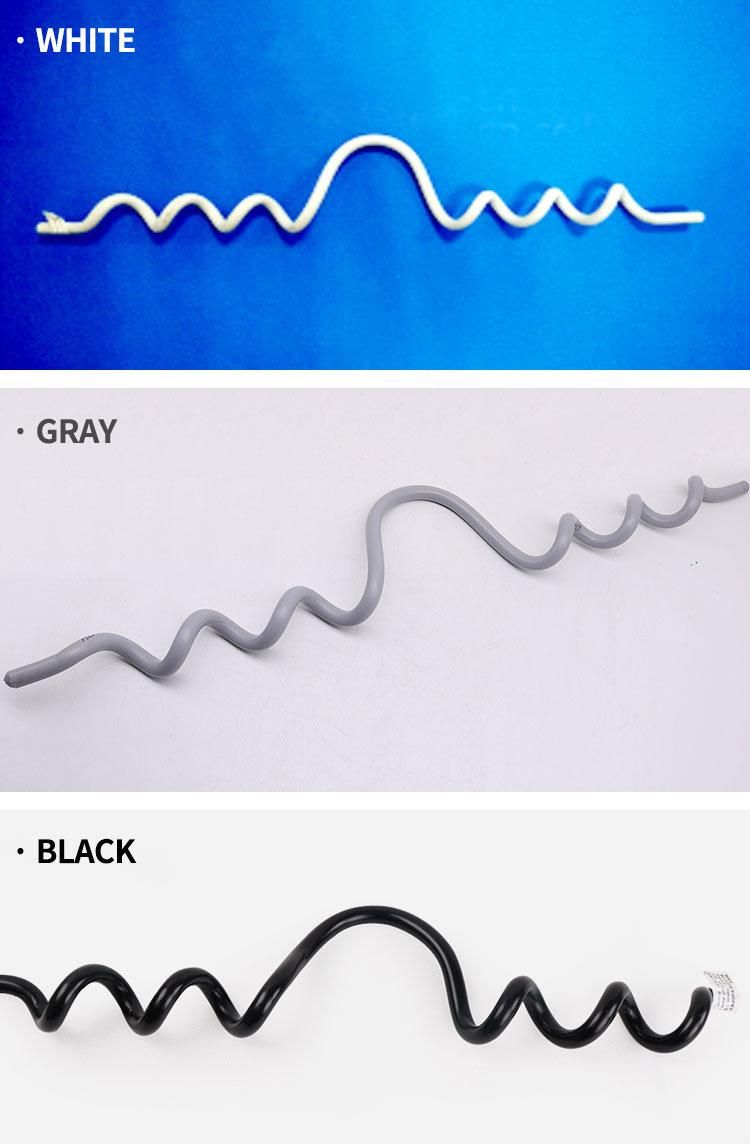

Color
code
