• Model NO.：U-1000 Arvfv and U-1000 AR2V
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

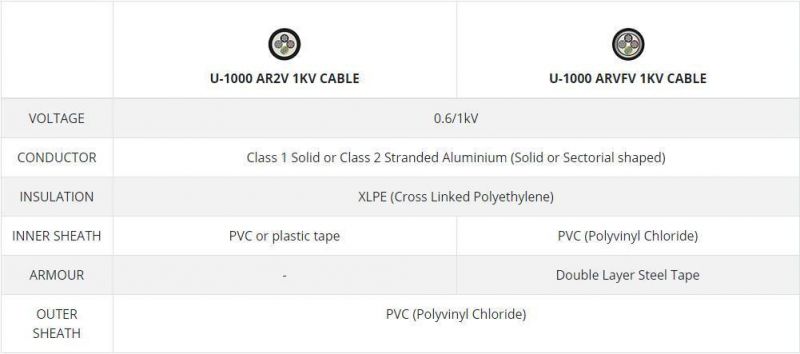

U-1000 ARVFV cable and U-1000 AR2V cables are cables designed for the French market, manufactured in accordance with Norme Français NF C32-321 and NF C32-322 to provide rigid unarmoured power and control to applications. The U-1000 designation identifies the cables as having a voltage rating of 600/1000V (0.6/1kV). The cables have a temperature range of -10^oC to +60^oC for the ARVFV and -25^oC to +90^oC for the AR2V.U-1000 ARVFV cable and U-1000 AR2V cables are cables designed for the French market, manufactured in accordance with Norme Français NF C32-321 and NF C32-322 to provide rigid unarmoured power and control to applications. The U-1000 designation identifies the cables as having a voltage rating of 600/1000V (0.6/1kV). The cables have a temperature range of -10^oC to +60^oC for the ARVFV and -25^oC to +90^oC for the AR2V.

ARVFV cables are available in configurations of 3 cores, 4 cores and 5 cores as standard, in sizes over 10mm², whilst the AR2V is available in sizes 16mm² and above with single core, 4 core and 5 core variants. There are also variants in 3 core cable with reduced earth, starting from 70mm²/35mm².

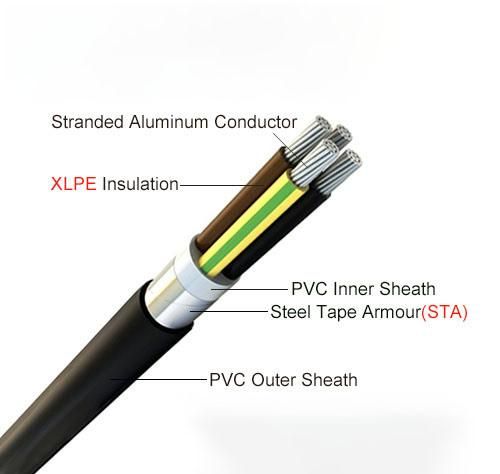

The U-1000 AR2V cable is designed for internal use, being fixed to walls or contained on cable tray or in conduit. The construction of the ARVFV cable includes a double layer of steel tape armour, providing additional mechanical protection. In relevant installations this can then be used for direct burial externally. As with the copper version of this cable, it should not be installed without additional protection into waterlogged trenches or areas subject to frequent flood.
