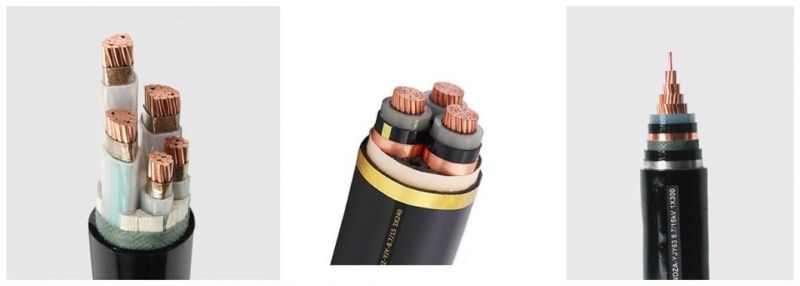

PVC High Voltage Halogen Free Flame Retardant High Strength Armoured High Voltage Power Aluminium Copper Control Wire Electric Waterproof Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Rubber
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：HVAC
- Wire Core Material：Bare Copper Wire
- Certification：CCC, CE, RoHS, UL, VDE
- Model：YC
- Brand：Feiya
- OEM：Yes
- Product Name：Rubber Insulated Power Cable
- Number of Cores：Single Core Multi-Core
- Sheath Color：Black
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper
- Trademark：Feiya
- Origin：China
- HS Code：8544492100
- Production Capacity：80000 Meter,Meters Per Month
Description
Operating featuresOperating temperature
Max.Permissible continuous operating temperature of conductors shall not exceed 90ºC
Conductor Short circuit temperature
Not exceeding 250ºC.(Max. Duration 5 seconds)
Bending radius
Bending radius of single core cable:20D
Bending radius of multi-core cable: 15D
D=Actual overall diameter of cable(mm)
Installation temperature:
The lowest temperature of installation is 0ºC
Laying conditions and basic parameters for calcalating current ratings:
Method of laying Ambient temperature
In air 40ºC
Direct burial 25ºC
Soil thermal resistivity 1.0ºC m/W
Type,description and main applications
YJLV,YJLY
Laying Single core cable in magnetic duct is not permissble.
YJLV22
YJLV32
