• Model NO.：GJYFJBH
• Core：2-24
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：Efon
• Sheath Material：LSZH,PE Sheath,Flame Retardant Sheath,Anti-Rodent
• Fiber Type：G.652D or G.657A1 A2
• Fiber Count：1-48
• Strength Member：FRP
• Material of Jacket：UV and Flame Resistant LSZH
• Jacket Color：White or Black
• Tensile Strength：1000n
• Crush Resistance：300n
• Applications：Indoor Outdoor Access Cabling
• Certifications：Ce SGS
• Warranty：2 Years

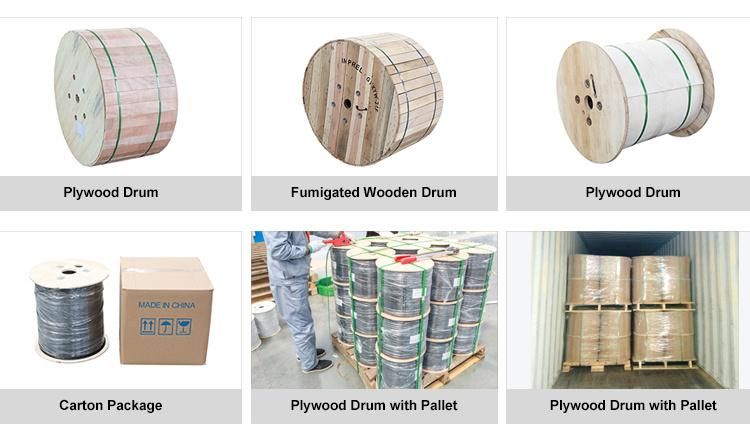

• Transport Package：Wooden Drum Iron-Wooden Drum with Fumigated or Not
• Specification：CE
• Trademark：OEM
• Origin：China
• HS Code：85447000
• Production Capacity：300km,Week

Fiber Type             Attenuation Overfilled launch BandwidthEffective Modal Bandwidth10GB/S Ethernet link length Min Bending Radius  Conditions 1310/1550nm 850/1300nm    850/1300nm      850nm     850nm  Unit     dB/km    dB/km    MHZ.km     MHZ.km          m        mm G652D  0.36/0.22            16 G657A1  0.36/0.22            10 G657A2  0.36/0.22            7.5 50/125    3.0/1.0     ≥500/500          30 62.2/125    3.0/1.0     ≥200/500          30 OM3    3.0/1.0     ≥1500/500      ≥2000      ≥300        30 OM4    3.0/1.0     ≥3500/500      ≥4700      ≥550        30 B1-OM3    3.0/1.0    ≥1500/500      ≥2000      ≥300        7.5 B1-OM4    3.0/1.0     ≥3500/500      ≥4700       ≥550        7.5

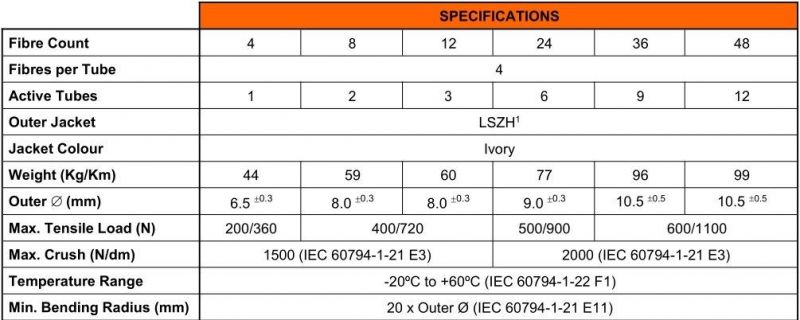

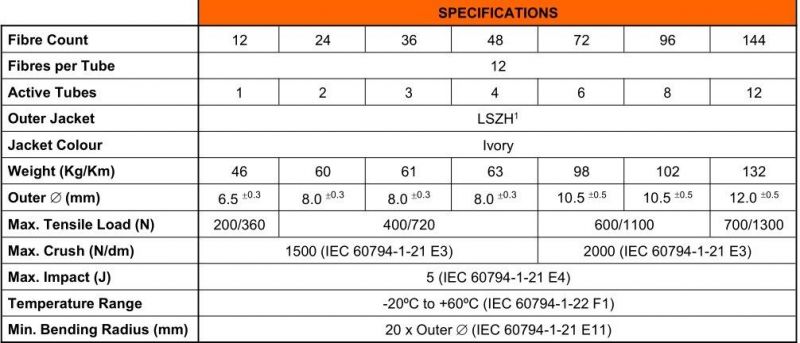

Specifications:

 Note: This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.The cable core use the colored coating fiber of 250μm.
