• Model NO.：Indoor Cable
• Core：Double Core
• Certification：RoHS, ISO9001, CPR
• Brand：OEM
• Sheath Material：LSZH, PVC, PE
• Fiber Type Sm：G652D, G657A, G657b3
• Fiber Type mm：Om1, Om2, Om3, Om4, Om5
• Length：1km, 2km, 3km, 4km
• Transport Package：Carton
• Specification：0.9,2.0,3.0,5.0mm
• Trademark：OEM
• Origin：China
• HS Code：8544700000
• Production Capacity：6000km Per Month

Fiber type221Single mode or Multi modeItemsDescriptionFiber Counts2 coresStrength MemberMaterialAramid yarnColorYellowTight BufferDia (mm)0.6±0.05mm or 0.9±0.05mmMaterialPVC(LSZH,Hytrel,PA or Customer required)ColorYellow and WhiteOuter JacketMaterialPVC (LSZH or Customer required)ColorYellow, Aqua, Purple or OrangeThickness(mm)≥0.20 (Φ1.6mm)≥0.30 ( Φ2.0mm)≥0.40 (Φ2.8mm)ItemCable DiaWeightAllowable Tensile Strength(N)Crush Load (N/100mm)(mm)(kg/km)Long termShort termLong termShort termGJFJV-21.6×3.4 (±0.2)5.240801005002.0×4.1 (±0.2)7.8801501005002.8×5.7 (±0.2)11.6150300100500Min Bending Radius(mm)Long term10DShort term20DTemperature characteristicBase on the working temperature range: Dwell time 8H / 2cycles.The variation on attenuation:SM≤0.5 dB/km;MM≤0.3 dB/kmHight temperature and humidity ability≥500h,85ºC/85%RH,No damage to the sheath.Installation Temperature range-5 ~ +50ºCOperation and transport temperature-20 ~ +60ºCAttenuationBandwidthEffective modal bandwidth10 Gb/s Link LengthConditions1310/1550nm850/1300nm850/850nm850nmTypicalMaximumTypicalMaximum1300nmUnitdB/kmdB/kmdB/kmdB/kmMHz.kmMHz.kmmG652D0.5/0.40.6/0.5/////G657A10.5/0.40.6/0.5/////G657A20.4/0.30.5/0.4/////G657B30.5/0.40.6/0.5/////62.5/125//3.5/1.03.5/1.5≥160/500//50/125///3.0/1.03.5/1.5≥200/500//OM150/125///3.0/1.03.5/1.5≥500/500//OM2OM3-150//3.0/1.03.5/1.5≥700/500≥950150OM3-300//2.5/0.83.0/1.0≥1500/500≥2000300OM4-550//2.5/0.83.0/1.0≥3500/500≥4700550

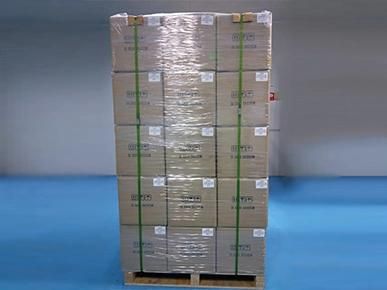

Package


FAQ
1. Can I visit you?
-Sure,our factory is in Shenzhen ,China. Kindly contact us to make an appointment.

2. How long is your delivery time?
-Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. What is your payment terms?
-Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
4. How about the warranty?
-There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

5. Can you produce according to the samples?
-Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
