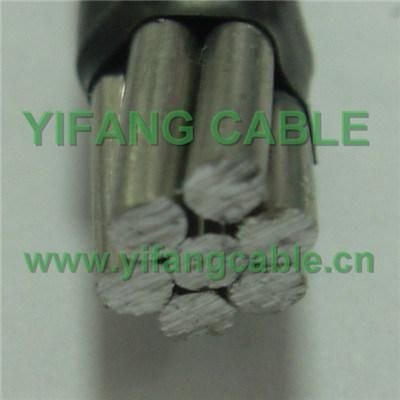

ABC Cable 3X25mm2

YIFANG ELECTRIC GROUP INC.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead
  • Conductor Material：Aluminum
  • Sheath Material：None
  • Insulation Material：XLPE

Base Info

  • Model NO.：ABC
  • Material Shape：Round Wire
  • Range of Application：Overhead
  • Certification：ISO9001, CE, CCC
  • Brand：Yifang
  • Insulation：XLPE,PE
  • Color：Red ,Blue,Black,Grey
  • Transport Package：Drum
  • Specification：ABC cable 3x25mm2 4x25mm2
  • Trademark：Yifang
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：5000000m Per Month

Description

TECHNICAL DATA SHEET FOR LV ABC CABLE
0.6/1KV 3,4x25MM2NO.DESCRIPTIONUNITDATADATA1Standards IECIEC2Rated voltage (Uo/U)KV0.6/10.6/13Phase Core Construction   3.1Conductor    Number & Cross-section Areamm23x254x25 Material--Stranded Aluminum Wire, CompactedStranded Aluminum Wire, Compacted Shape--RoundRound Stranding number of conductorNos77 Approx. Diameter of conductormm6.26.23.2Insulation    Material--Black XLPEBlack XLPE Nominal Thickness mm1.41.4 Approx. Diameter of insulated coremm9.0 9.0 4Approx. Dia. Of complete cablemm19.0 21.5 5Approx. weight of complete cable per kmKg2953956Max. Conductor DC resistance at 20 °C/km1.21
