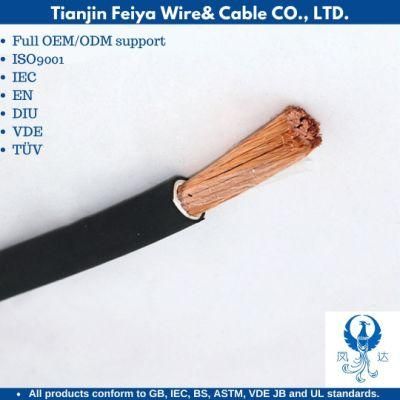

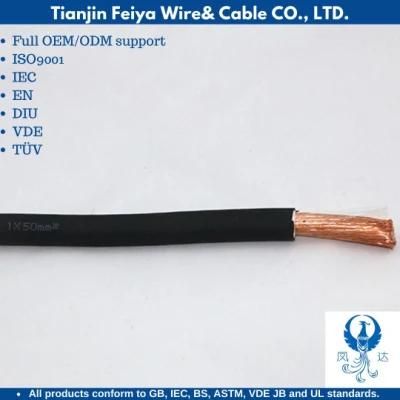

Fdgg-55 Copper Core Silicon Rubber Insulated Sheath Severe Cold Resistant Twisted Resistant Flexible Wind Power Generation Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Wind Turbine Generator System
- Conductor Material：Copper
- Sheath Material：Rubber
- Insulation Material：Silicone Rubber
Base Info
- Model NO.：FDGG-55
- Material Shape：Round Wire
- Range of Application：Wind Turbine Generator System
- Certification：CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- OEM：Yes
- Designation：450,750V
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper
- Trademark：Feiya
- Origin：China
- HS Code：854449210
- Production Capacity：80000 Meter,Meters Per Month
Description
Spec. and sizeFDEF-25
FDEF-40
FDES-25
FDES-40
FDES-55
FDGG-40
FDGG-55
FDEG-40
FDEG-55
FDEH-25
FDEH-40
FDEH-55
Technical performance
1.The conductor shall comply with the requirements of fifth kinds of soft round stranded conductors specified in GB/T 3956-2008
2.The highest operating temperature of Conductor: ethylene propylene rubber insulation 70ºC, 90ºC; silicone rubber insulation 90ºC.
3.The finished cable shall be to withstand the normal temperature torsion test and the low temperature torsion test specified in Appendix B of GB/T 29631-2013.
4.The finished cable shall be able to withstand weight test as specified in Appendix C of GB/T 29631-2013.
5.The finished cable shall be able to withstand the low temperature bending test specified in Appendix D of GB/T 29631-2013.
