• Model NO.：Lihch Tp
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：5000000km,Year

Basic Info.

Model NO. Lihch Tp Material Shape Round Wire Range of Application Flame Retardant Certification CE, UL, CCC, RoHS, VDE Brand Feiya Color Black Red Yellow, According to Voltage Level Whether It Is Environmentally Friendly Yes Whether Quality Inspection Provide Inspection Certificate Standard Customized According to Specified National Standar OEM/ODM Accepted Core Single Core and Multicore Transport Package Standard Export Packaging Specification International General Specifications Trademark Fengda Origin Tianjin, China(Mainland) HS Code 8544492100 Production Capacity 5000000km/Year

Product Description





Areas of Use

These screened HFFR cables are used as signal transmission cables for indoor applications. These can be easily used with their flexible construction in narrow applications like electronic control systems of computer or audio systems or the communication sector, electronic circuits, measurement devices, machine design, office equipment, etc. Screening protects the cable against the outer electrical effects. Because of the HFFR material, These don't burn easily and the flames go off by themselves. These have low smoke density and These don't emit poisonous and corrosive gases during the fire. These used in buildings where there are important goods or human population.

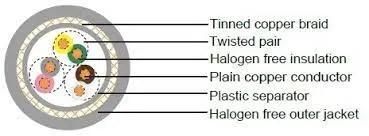

Cable Construction

• ConductorStranded Annealed Copper (IEC/EN 60228, Class 5, 0.34 mm²: Class 2)
• InsulationHFFR (EN 50290-2-26)
• Core ColorsDIN 47100
• Lay-upCores are twisted as pairs and pairs are stranded in layers
• SeparatorPET Foil
• ScreenTinned Copper Wire Braid (50% Coverage)*
• Outer SheathHFFR (EN 50290-2-27), RAL 7001 - Grey
• Reference StandardsVDE 0812, TS 13755

Technical Properties

• Operating Voltage0.14 mm²..0.25 mm² 250 V; 0.34 mm²..1.50 mm² 300 V / 500 V; 2.50 mm²…... 450 V / 750 V
• Test Voltage0.14 mm²..25 mm² 1200 V; 0.34 mm²..10 mm² 1500 V; 1.50 mm²….. 2500 V
• Loop Resistance0.14 mm²-≤276 Ω/km; 0.22 mm²-≤170 Ω/km; 0.25 mm²-≤155.6 Ω/km; 0.34 mm²-≤112 Ω/km; 0.50 mm²-≤78 Ω/km; 0.75 mm²-≤52 Ω/km; 1.00 mm²-≤39 Ω/km; 1.50 mm²-≤26.6 Ω/km
• Insulation Resistance>200 M.Ωxkm
• Capacitance (@800Hz)Core - Core: 0.14 mm²-≤80 nF/km; 0.22 mm²..0.34 mm²-≤100 nF/km; 0.50 mm²..0.75 mm²-≤110 nF/km; 1.00 mm²..1.50 mm²-≤120nF/km; 2.50 mm²- ≤140 nF/km Core-Screen: 0.14 mm²-≤120 nF/km; 0.22 mm²..0.34 mm²-≤150 nF/km; 0.50 mm²..0.75 mm²-≤170 nF/km; 1.00 mm²..1.50 mm²-≤180nF/km; 2.50 mm²- ≤240 nF/km
• Indutance (approx.)0.65 mH/km
• Temperature RangeFixed: -30 °C ........+70 °C, Flexible: -5 °C ........+70 °C
• Flame RetardancyIEC/EN 60332-1
• Smoke DensityIEC/EN 61034-2
• Amount of Halogen Acid GasIEC/EN 60754-1
• Corrosive Gases MeasurementIEC/EN 60754-2
• Min. Bending RadiusFixed: 8 x Cable Diameter, Flexible: 15 x Cable Diameter
