• Model NO.：NSHXAFOE
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, RoHS
• Transport Package：Optional
• Specification：Multicore
• Trademark：AEIN
• Origin：Shanghai
• HS Code：8544492100

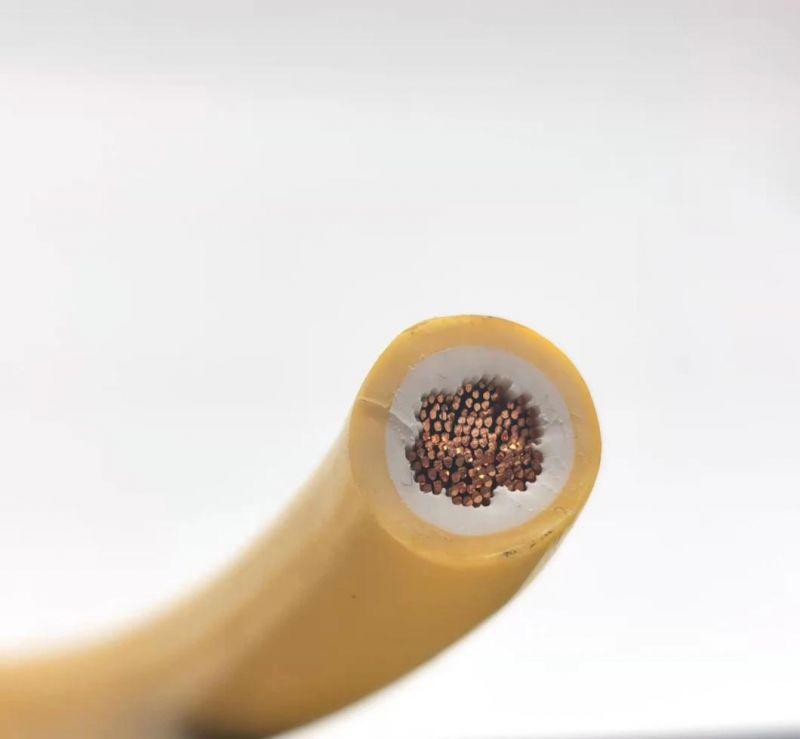

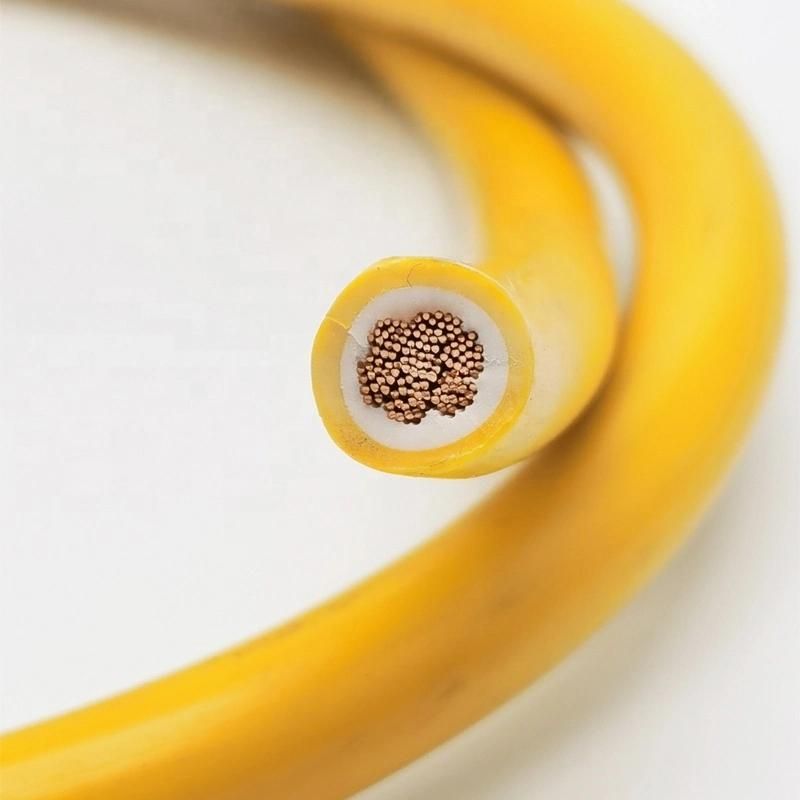

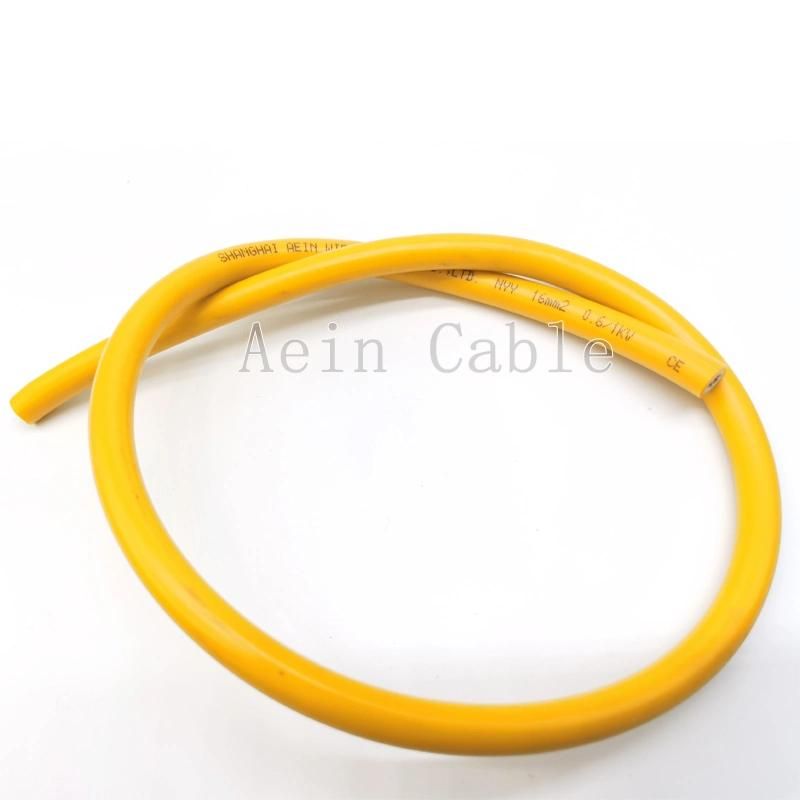

ItemNSHXAFOEConductorBare copperInsulationEthylen-Propylen-Rubber (EPR) Outer sheathVulcanized rubber compoundNominal VoltageAC U0/U 1.8/3 kV Test Voltage6 kVMax. permissible temperature at conductor90 °CMax. short circuit temperature of the conductor250 °CAmbient temperatureFix installation min. -40 °C
Flex. operation min. -25 °CColorOptionalCertificationCEApplication- For fixed installation and occasionally moving indoors and outdoors;
- In conduits for electrical wiring at, in and under plaster as well as in closed installation conduits;
- In switchgear and distribution boards up to 1000 V, also for unfused connections (DIN VDE 0100-520 and DIN VDE 0660-500);
Because of their increased mechanical strength due to the greater insulation thickness as compared with LV single-core cables, they are classified as shortcircuit-proof and earth-fault-proof. The short-circuit withstand capability, on the other hand, must be assured by specifying a conductor cross-section suitable for the short-circuit currents concerned. Please see table below for the permissible short-circuit currents.
The cables have a covering over the insulation to serve as mechanical protection during the cable installation, but are without protection against
accidental contact. Therefore it has to be secured that the unscreened cables with voltages over 1000 V shall not be touched during operation.
In other respects the specifications of DIN VDE 0298-3 apply
