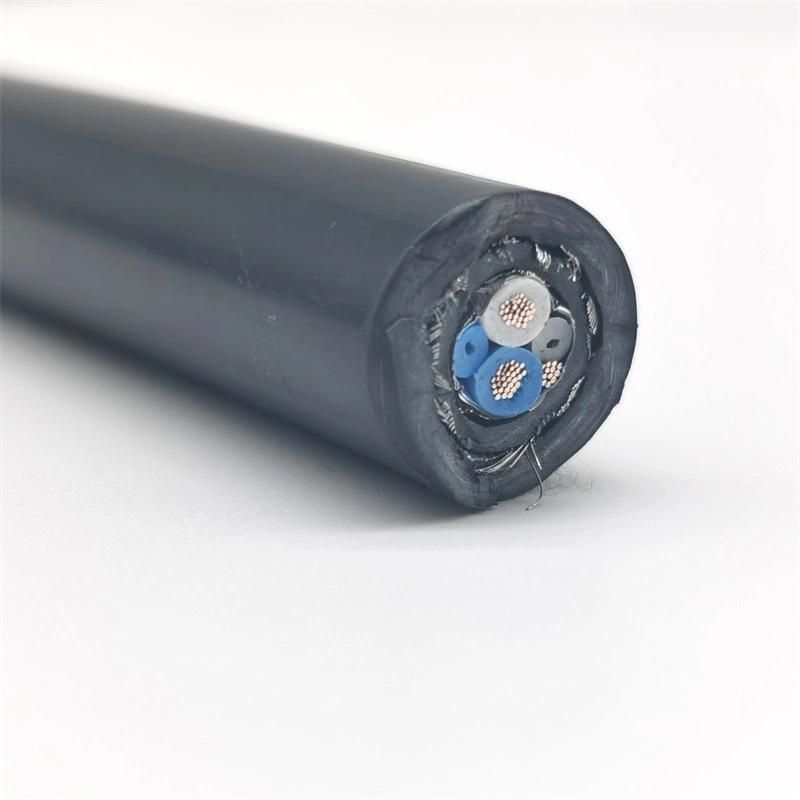

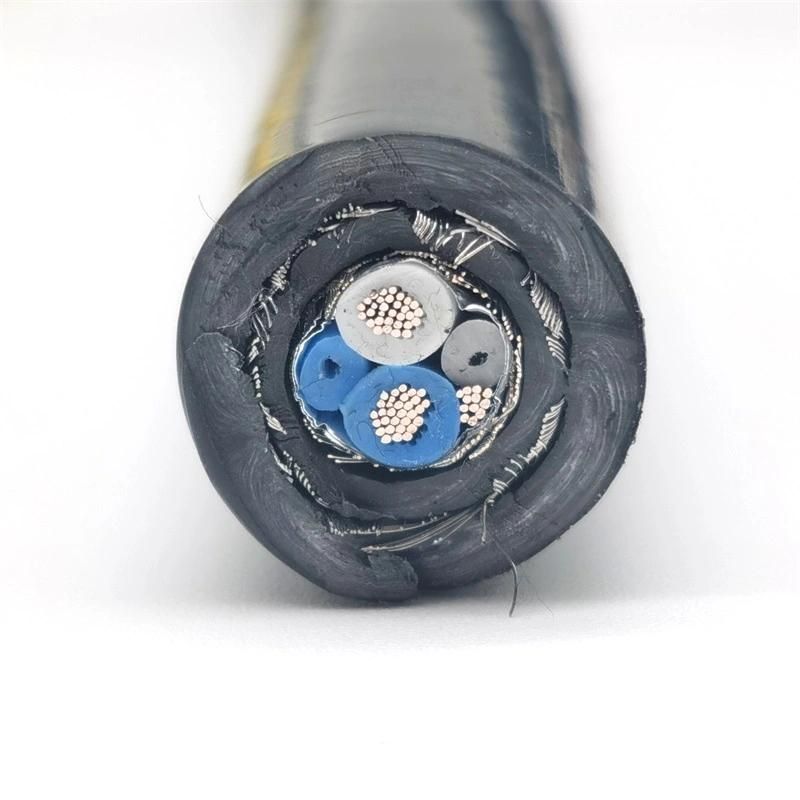

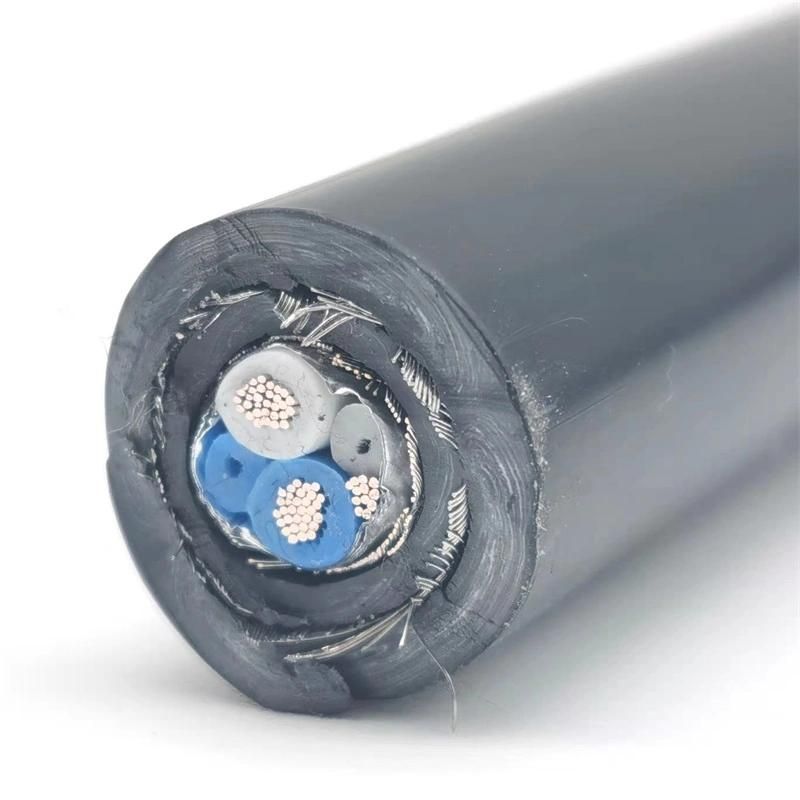

XLPE Environmental Protection Lfmsgssgo and High Immunity Composite Shielded Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：Special Elastomer Mixture
  • Insulation Material：Special XLPE Thermoplastic Insulation
  • Material Shape：Round Wire

Base Info

  • Model NO.：LFMSGSSGO Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemXLPE Environmental Protection LFMSGSSGO Cable and High Immunity Composite Shielded CableConductorCopper wire bareInsulationSpecial XLPE thermoplastic insulationCore structure Three cores twisted groupsSplit-phase shiledingTinned copper wire braided shield, coverage rate 80%, with polyester film separatorFirst layer of total shieldingTinned copper wire braided shield, coverage rate 80%Inner sheathSpecial halogen-free elastomer mixture sheath Inner ShieldTinned copper wire braided shield, coverage rate 80%Outer sheathSpecial elastomer mixture sheath materialCore NumberMulticores (As client's requirement)Peak operating voltageUo/U 500 V Test Voltage2000 VTemperature-10 ºC ~ + 85 ºCColorOptionalApplicationThe cable is flexible, weather-resistant, and corrosion-resistant. It is suitable for fixed installation on the hull where it is no subject to mechanical stress, such as various water buildings such as rivers and seas, and offshore oil platforms.
