• Model NO.：american aluminum cable
• Transport Package：Wooden Drum
• Specification：american aluminum cable 2 awg ground wire 6awg
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

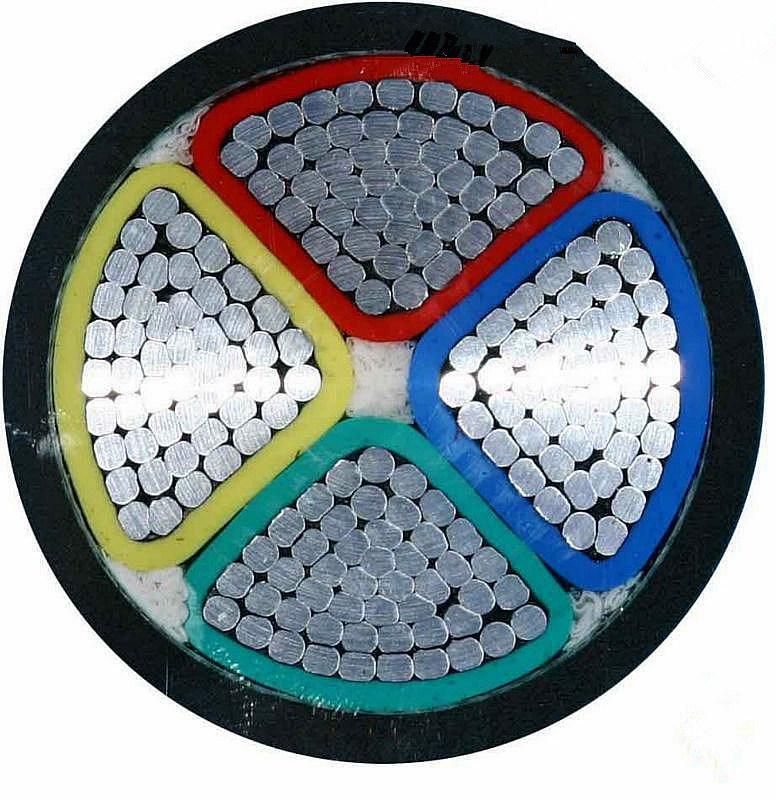

1 CoreRed or Black2 CoresRed Black3 CoresRed Yellow Blue4 CoresRed Yellow Blue Black5 CoresRed Yellow Blue Black GreenAbove 5 CoreasBlack Cores with White numerals

Colour Code (2)

1 CoreBrown or Blue2 CoresBrown  Blue3 CoresBrown, Black, Grey4 CoresBlue, Brown, Black, Grey5 CoresGreen/Yellow, Blue, Brown, Black, GreyAbove 5 CoreasBlack Cores with White num

Other colours can be manufactured upon request.

Assembly / Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores,
a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder
is permitted before application of an extruded inner covering. The materials used for inner coverings and fillers shall be
suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables,
the inner covering and fillers shall also be halogen free compound.

Lead Sheath

lead or lead alloy and shall be applied as a reasonably tight-fitting seamless tube.

Seperation Sheath

The seperation sheath shall be of extruded PVC Type ST2 as per IEC 60502-1, or other material refer to outer
sheath material.

Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double
aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.

Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free
compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available
on request.
