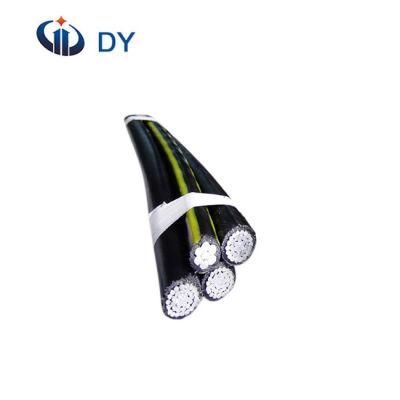

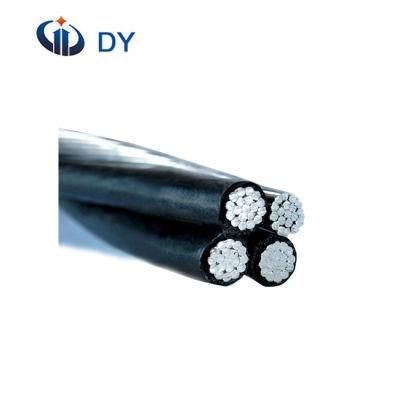

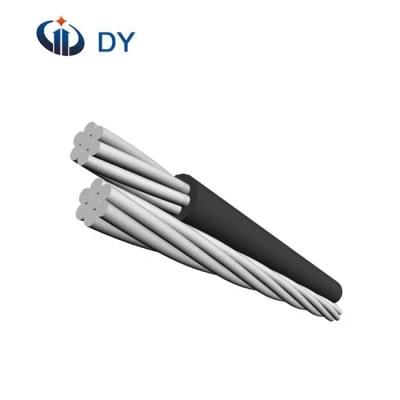

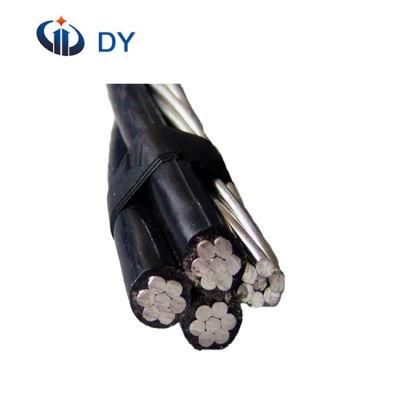

Medium Voltage Twisted Cable AAAC/ACSR/AAC Overhead Conductor
Luoyang Sanwu Cable Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：No Insulation
Base Info
- Model NO.：AAC conductor
- Material Shape：Round Wire
- Range of Application：Overhead LV, Mv, Hv
- Certification：ISO9001, CE, CCC, RoHS, Ohsas
- Brand：Dayuan
- Product Name：Overhead All Aluminium Stranded AAC Conductor
- Standard：CSA IEC ASTM DIN BS GOST Sas
- Applicable Voltage：Low Voltage, Medium Voltage, High Voltage
- Type of Conductor：Stranded, Bare
- Certificate：ISO9001, CCC, CQC, Ohsas, TUV, etc.
- Transportation：by Sea or as Your Requirement
- Supplier′s Nature：Manufacturer, Exporter
- Core：According to Your Requirement
- Manufacturer Experience：Since 2006
- Factory Area：200, 081mm2
- Transport Package：Wooden Drum,Wooden Steel Drum,Rolls
- Specification：1.5-800mm2
- Trademark：Dayuan
- Origin：Luoyang, Henan, China
- HS Code：76149000
- Production Capacity：100, 000m,Day
Description
CodeSize Section No. of Strands Diameter Strands Weight Rated Strength Maximunm Resistance
@20°C AWG o MCM in² mm mm kg/km kg Ω/km Peachbell 6 13.3 7×1.56 4.66 36.6 254 2.170 Rose 4 21.15 7×1.96 5.88 58.3 399 1.364 Iris 2 33.62 7×2.47 7.42 92.7 611 0.857 Pansy 1 42.41 7×2.78 8.33 117 740 0.681 Poppy 1/0 53.51 7×3.12 9.36 147.5 897 0.539 Aster 2/0 67.44 7×3.50 10.51 186 1136 0.427 Phlox 3/0 85.02 7×3.93 11.8 235 1375 0.339 Oxlip 4/0 107 7×4.42 13.25 296 1738 0.268 Daisy 266.8 135 7×4.96 14.88 373 2191 0.213 Laurel 266.8 135 19×3.01 15.05 373 2254 0.213 Tulip 336.4 171 19×3.38 16.9 470 2786 0.169 Canna 397.5 201 19×3.68 18.38 555 3219 0.143 Cosmos 477 242 19×4.02 20.12 666 3803 0.119 Syringa 477 242 37×2.88 20.18 666 3932 0.119 Dahlia 556.5 282 19×4.35 21.73 777 4431 0.102 Mistletoe 556.5 282 37×3.11 21.8 777 4495 0.102 Orchid 636 322 37×3.33 23.31 888 5154 0.089 Violet 715.5 363 37×3.53 24.73 1000 5791 0.079 Nasturtium 715.5 363 61×2.75 24.76 1000 5960 0.079 Arbutus 795 403 37×3.72 26.07 1110 6303 0.071 Lilac 795 403 61×2.90 26.11 1110 6501 0.071 Anemone 874.5 443 37×3.91 27.37 1222 6821 0.065 Crocus 874.5 443 61×3.04 27.36 1222 7144 0.065 Magnolia 954 483 37×4.08 28.55 1333 7428 0.059
ACSR (Aluminum Conductor Steel Reinforced) Cable consisting of a galvanized steel
core, is surrounded by concentric layers of aluminum wire, and grease if necessary.
ACSR cable is widely used in the overhead power distribution system in our country.
We can supply this conductor according to different recognized standards, such as IEC61089, BS215, ASTM B232, CSA C49, DIN48204, JIS C3110, and customers' special
specifications also can be satisfied.
Overhead Line AAC AAAC ACSR ACSR Conductor ACSR Cable Application:
Conductor (AAC and ACSR) have been widely used in power transmission lines with
various voltage, because they have such good characteristics as simple structure,
convenient installation and maintenance, low cost and large transmission capacity.
Overhead Line AAC AAAC ACSR ACSR Conductor ACSR Cable Specifications:
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced
(ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced
(ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced
(ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors,
Steel Reinforced (ACSR)
Overhead Line AAC AAAC ACSR ACSR Conductor ACSR Cable Material Standard:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR cable confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204
Relation Products
Each time we receive an big order with different standards we will make a meeting about the production process in order to make sure the quality and delivery time.
Certificates:
SECRI, ISO9001:2008, OHSAS, CCC, TUV Certifications:
Packaging & Shipping
Package: Support to pack as rolls, or with wooden drum or wooden steel drums.
Shipment terms: DHL, Fedex, UPS, etc. And usually by Sea.
Customer Coming
Welcome come our factory at any time! we trust you will like it!
