• Model NO.：H05VV-F
• Material Shape：Flat Wire
• Range of Application：Flame Retardant
• Certification：UL, RoHS, VDE
• Brand：Bort
• Packaging：1000FT,Spool
• Weight：About 1kg,1000FT
• Color Available：Any Colors
• Delivery Time for Samples：3-5days
• Delivery Time for Mass Production：7-10days
• Appliance：Flexible Drag Chain Cable
• Warranty Time：at Least 10years for Proper Use
• Standard of Production：RoHS & Reach
• Factory Management Standard：ISO9001:2008
• Annual Capacity：300,000kms
• Transport Package：Coiled in The Plastic Spool
• Specification：22AWG
• Trademark：BoRt
• Origin：Zhangzhou, China
• HS Code：8544492900
• Production Capacity：300000kms

Basic Info.

Model NO. H05VV-F Material Shape Flat Wire Range of Application Flame Retardant Certification UL, RoHS, VDE Brand Bort Packaging 1000FT/Spool Weight About 1kg/1000FT Color Available Any Colors Delivery Time for Samples 3-5days Delivery Time for Mass Production 7-10days Appliance Flexible Drag Chain Cable Warranty Time at Least 10years for Proper Use Standard of Production RoHS & Reach Factory Management Standard ISO9001:2008 Annual Capacity 300,000kms Transport Package Coiled in The Plastic Spool Specification 22AWG Trademark BoRt Origin Zhangzhou, China HS Code 8544492900 Production Capacity 300000kms

Product Description

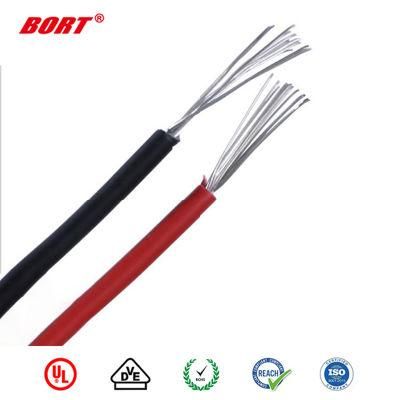

H05VV-F 1.5 Sqmm 3*0.75mm control cable 2.5mm 2 core PVC insulated electric RVV cable wire

Insulation Material: PVC
Type: Low Voltage
Application: power cable 5 wire
Conductor Material: Copper
Jacket: PVC
Number of Conductor: Multi cores
Peak voltage: 350/500V
Conductor: Bare copper or tinned copper
Static Temperature: - 40 ºC to + 80 ºC
Deflection Temperature: -5ºC to +70ºC
Conformity Approval: RoHS CE/VDE
Color: Grey/Black/white/yellow/red/blue/green(Optional)
Sheath: Special pvc
Advantages: Easy- peeling, easy-cutting, convenient for installation.

Packaging & Delivery: Cable are packed as 100/200/300/500/1000 meters per roll or as customer's requirement.

Delivery Time: Shipped in 7-15 days after the deposit

Marking for VDE approved PVC Insulation 2x2x0.5mm flexible drag chain cable:
Above kind of cable is single or multiconductor signal and control cable recommended for use in European designed computer, data transmission and office equipment, process control and instrumentation, where additional EMI protection is required.

Construction of VDE approved PVC Insulation 2x2x0.5mm flexible drag chain cable:

Conductor: bare copper strands   with reference to DIN VDE 0812
Insulation: PVC, YI2 acc. to DIN VDE 0207 part two or more Color code: with reference to DIN 47100 Stranding: in layers  Wrapping: PETP foil  Screen: tinned copper braiding
Jacket material: PVC, YM1 acc. to DIN VDE 0207 part 5   Jacket color: gray

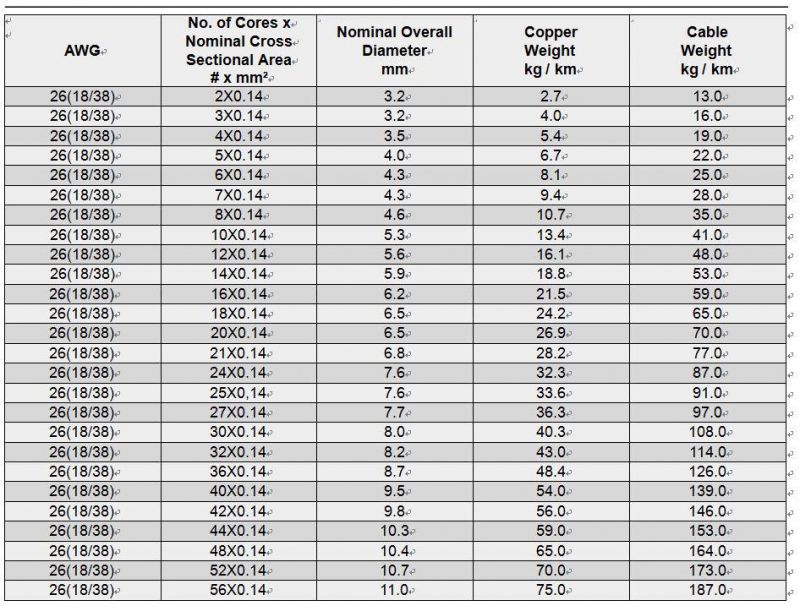

Technical data of VDE approved PVC Insulation 2x2x0.5mm flexible drag chain cable:

Peak operating voltage: < 24 AWG = max. 350 V
> 24 AWG = max. 500 V  Testing voltage: < 24 AWG = 800 V  > 24 AWG = 1200 V
Min. bending radius  fixed installation: 5 x O.D.   free movement: 10 x O.D.
Capacitance: see page N/8 Radiation resistance: 8 x 107 cJ/kg Temperature range
static: -30/+70 °C  flexing: -5/+70 °C
Burning characteristics: flame retardant and self-extinguishing
acc. to IEC 60332-1-2 + EN 60332-1-2
Oil resistance: acc. to internal standard, see page N/27
Chem. resistance: see page N/9  Color code: see see page N/24
Absence of acc. to RoHS directive of the European Union
harmful substances: see page N/28 power cable 5 wire
