UTP CAT6 LSZH Outdoor Cable LAN Cable
GENERAL CLAD CO., LTD.- Application：Local Communication Cable, Coaxial Cable, LAN Cable, RF Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：UTP CAT6
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Color：Grey, Blue, Black, Yellow, Red etc
- Transport Package：Carton Box
- Specification：305m,roll
- Trademark：General Clad
- Origin：China
- Production Capacity：10000 Boxes, Month

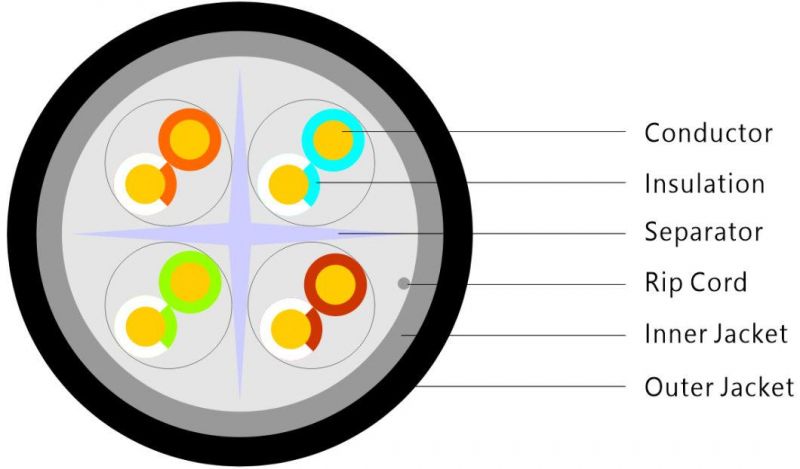

Description
Standard UL444, TIA/EIA568B, ISO/IEC11801
23 awg wire gauge
A single bare copper conductor
Insulating high density polyethylene
Line of 4
Sheathed PVC/low smoke halogen free (as required)
Tear the rope as needed
1.0~ 250.0mhz delay difference (ns/100m) ≤45
At 20ºC, the maximum dc resistance (ohms/km) of the conductor is less than or equal to 65.8
Conductor resistance unbalance (%) ≤1.0
100 Base - TX
100 VG - AnyLAN
155 Mbps ATM
622 Mbps ATM
Package
