Aerial Cable with Rated Voltage 10kv
Guangdong Vango Cable Industry Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Copper
- Insulation Material：XLPE
- Material Shape：Round Wire
Base Info
- Model NO.：JKYJ JKTRYJ JKLYJ etc.
- Range of Application：Fixed Installation
- Transport Package：Wooden Reel, Steel Reel
- Specification：0.5-630 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- Production Capacity：20000km Per Month
Description
Cable should keep some distance from trees when it is being laid, and it can touch the trees frequently when it is on operation. JKY Copper conductor PE insulated aerial cable JKTRY Soft copper conductor PE insulated aerial cable JKLY Aluminum conductor PE insulated aerial cable JKLYJ/Q Aluminum conductor thin XLPE insulated light aerial cable Used for fixed installation. JKLGYJ/Q Steel core aluminum conductor XLPE insulated light aerial cable JKLY/Q Aluminum conductor thin PE insulated light aerial cable Cable should keep some distance from trees when it is being laid, but it can touch the trees frequently when it is on operation.
Features
1.The rated voltage (U/Um) is 10kv. These cables can be used in the system where the single phase earting fault duration is not more than 1 min, the maximum fault duration is not more than 8h each time and total fault duration are not more than 125h one year.
2.The installation temperature of cable shall be not lower -20ºC
3.The maximum short circuit (maximum duration is not more than 5s) temperature:
-XLPE insulated cable: 250ºC
-HDPE insulated cable: 150ºC
4.The minimum installated bended radius shall be not less than:
-Single core cable--20(D+d)
-Multicore cable--15(D+d)
(D--diameter of cable, mm; d--Nominal diameter of conductor)

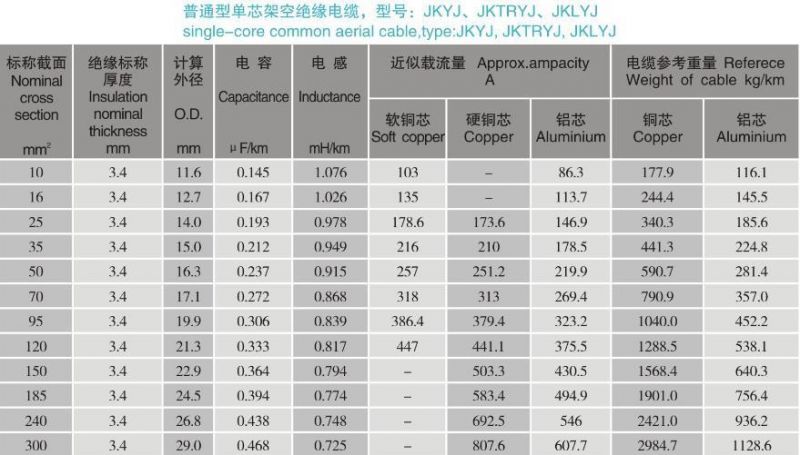

Main Technical Parameter
Our company
Workshop
Certificates
Features
1.The rated voltage (U/Um) is 10kv. These cables can be used in the system where the single phase earting fault duration is not more than 1 min, the maximum fault duration is not more than 8h each time and total fault duration are not more than 125h one year.
2.The installation temperature of cable shall be not lower -20ºC
3.The maximum short circuit (maximum duration is not more than 5s) temperature:
-XLPE insulated cable: 250ºC
-HDPE insulated cable: 150ºC
4.The minimum installated bended radius shall be not less than:
-Single core cable--20(D+d)
-Multicore cable--15(D+d)
(D--diameter of cable, mm; d--Nominal diameter of conductor)
