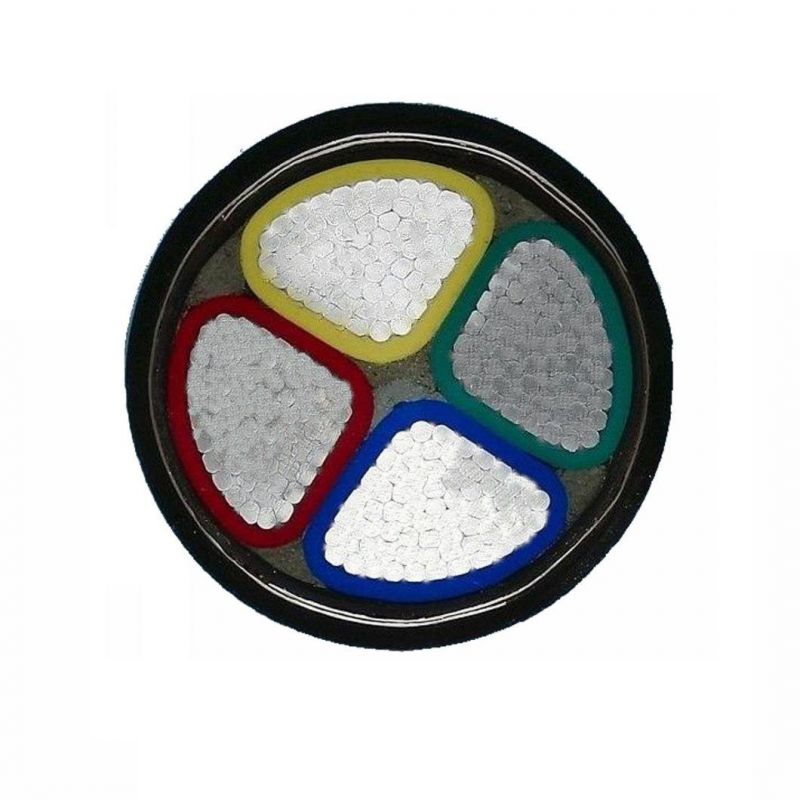

IEC 60502-1 Szamkam PVC Insulation Al Tapes Screen Power Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：PVC
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：SZAMKAM
  • Wire Core Material：Aluminum Wire
  • Certification：ISO, CCC, SGS
  • Model：YJLV22
  • Brand：Hongda
  • Rated Voltage：0.6,1kv, 600,1000V, 1.1kv
  • Transport Package：500m or 1000m Per Drum
  • Specification：1.5-300 mm2
  • Trademark：Hongda or OEM
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：7000 Km , Year

Description

Conductor
 Aluminum wires solid or stranded
class 1 or 2, according to IEC 60228InsulationPVC compoundCable coreInsulated cores are twistedInner sheathPolymer tapesMetal screenAl tapesSheathPVC compoundColorblack Conductors typerecircular, solid conductorrmcircular, stranded conductorsmsector, stranded conductor Color coding4 - core- blue, brown, black, greyNumber of conductorsand nominal

 Thic­kness of insula-

 Bedding layer
tapes
 Aluminium tapes

 Thickness of sheath

 Outer diameter approx.Current carrying
capacity in
airCurrent carry­ing capacity in groundN x mmmmmmmmmmmmAA4x16 re1.00.40.41.821.063764x25rm1.20.40.41.824.583102        4x50sm1.40.40.42.030.01251444x95sm1.60.40.42.339.01902154x150sm1.80.60.62.647.02522754x185sm2.00.60.62.752.02893134x240 sm2.20.60.63.058.0339364

IEC 60502-1 Szamkam PVC Insulation Al Tapes Screen Power Cable


*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.
