Multiple Core FEP Coated Rtd Cable with Shield
Yangzhou Fongming Cable Factory- Type:Insulated
- Conductor Type:Stranded
- Application:Heating, Underground
- Conductor Material:Copper
- Sheath Material:FEP
- Insulation Material:FEP
Base Info
- Model NO.:RTD-F-PF
- Material Shape:Round Wire
- Range of Application:Internal Wiring
- Certification:ISO9001, CE, UL, CCC, RoHS, CSA
- Brand:Fongming
- Name:Multiple Core FEP Coated Rtd Cable with Shield
- Color:as Required, Red, Green, Yellow, Blue
- Sample:3 Meters Free, 3 Days
- Customize:Available
- MOQ:1000 Meters
- Transport Package:305m Per Roll, Carton Box Outside
- Specification:3*26-3*14AWG
- Trademark:Fongming
- Origin:Yangzhou, P. R China
- HS Code:8544492100
- Production Capacity:100000000meters Per Month
Description
Basic Info.
Model NO. RTD-F-PF Material Shape Round Wire Range of Application Internal Wiring Certification ISO9001, CE, UL, CCC, RoHS, CSA Brand Fongming Name Multiple Core FEP Coated Rtd Cable with Shield Color as Required/ Red, Green, Yellow, Blue Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Transport Package 305m Per Roll, Carton Box Outside Specification 3*26-3*14AWG Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
Product DescriptionMultiple Core FEP Coated RTD Cable with shield
Description
Name: Multiple Core FEP Coated RTD Cable with shield
Model: RTD-F-PF
Size: 3*26-3*14AWG

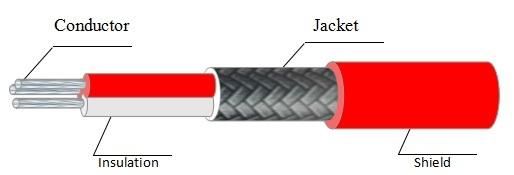

Structure
Conductor: Tinned Copper
Insulation: FEP
Color: 2Red,1White
Jacket: FEP
Color: 2Red
Shield: Stainless Steel Wire
Size (AWG) | Conductor Structure P&N (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Shield Thickness (mm) | Diameter (mm) | Jacket Thickness (mm) | O.D. (mm) |
3*26 | 7/0.16 | 0.48 | 0.2 | 0.9 | 0.2 | 2.1 | 0.5 | 3.1±0.2 |
3*24 | 7/0.2 | 0.6 | 0.2 | 1.0 | 0.2 | 2.4 | 0.5 | 3.4±0.2 |
3*22 | 7/0.254 | 0.76 | 0.2 | 1.2 | 0.2 | 2.8 | 0.5 | 3.8±0.2 |
3*20 | 7/0.32 | 0.96 | 0.2 | 1.4 | 0.2 | 3.2 | 0.5 | 4.2±0.2 |
3*18 | 7/0.39 | 1.17 | 0.25 | 1.7 | 0.2 | 3.9 | 0.5 | 4.9±0.3 |
3*16 | 19/0.3 | 1.5 | 0.25 | 2.0 | 0.2 | 4.5 | 0.5 | 5.5±0.3 |
3*14 | 19/0.37 | 1.85 | 0.25 | 2.4 | 0.2 | 5.4 | 0.5 | 6.4±0.3 |
Certifications
Company Information
Packaging&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why is the price so low?
You are ordering directly from the factory.
2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3. Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
