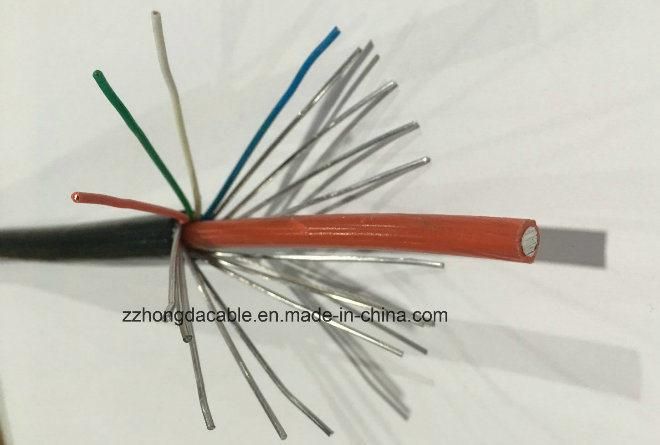

XLPE PVC Insulated Aluminum Al PVC Split Concentric Power Cable 10mm2

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Industrial, Telecommunication
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：PVC
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Split Concentric Power Cable
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC
  • Model：Yjlv
  • Brand：Hongda
  • Transport Package：Wooden
  • Specification：16mm
  • Trademark：hongda
  • Origin：Henan,China
  • HS Code：8544492100
  • Production Capacity：20km,Day

Description

 Aluminium concentricCopper concentricConductorSolid aluminium (Class 1)Stranded copper conductor (Class 2)InsulationXLPE (Cross-linked Polyethylene)XLPEConcentric conductorSingle layer of plain copper wiresSingle layer of plain copper wiresOuter sheathPVC (Polyvinyl Chloride)PVC
XLPE PVC Insulated Aluminum Al PVC Split Concentric Power Cable 10mm2

SPLIT CONCENTRIC CABLES

These cables are used when the power supply has separate PE & N conductors and are only combined as PEN near the power source. The Protective Earth and Neutral are not connected after the building entry point. Aluminium split concentricCopper split concentricConductorSolid aluminium (Class 1)Stranded copper (Class 2)InsulationXLPEPVC Type TI1Neutral conductorPlain copper wires (Class 1) covered with blue polymeric insulationPlain copper wires (Class 1) covered with blue polymeric insulationEarth continuity conductorPlain copper conductor (Class 1)Plain copper conductor (Class 1)String separatorNon-hygroscopic string separatorNon-hygroscopic string separatorOutersheathPVC TM1 or LSZHPVC TM1
Voltage: 0.6/1kv.
Operating temperature: Maximum 90°C, minimum -30°C.

XLPE PVC Insulated Aluminum Al PVC Split Concentric Power Cable 10mm2
XLPE PVC Insulated Aluminum Al PVC Split Concentric Power Cable 10mm2
XLPE PVC Insulated Aluminum Al PVC Split Concentric Power Cable 10mm2
