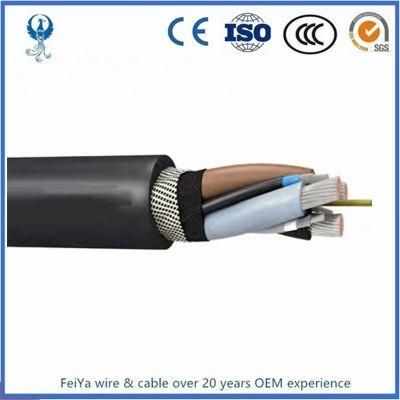

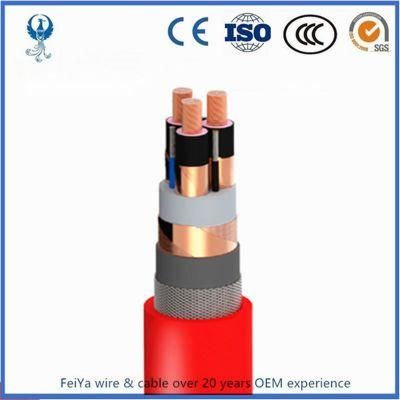

Flexible Electric Trailing Cable Type 241 Mining Cables
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Coal Mine
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Wire Core Material：Red Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：Mvv;Mvv22
- Brand：Feiya
- Transport Package：Rolls or According to Customers′ Request
- Specification：Rated voltage(kV): 0.6-1
- Trademark：Fengda
- Origin：Tianjin, China
- HS Code：8544421900
Description
NOMINAL WEIGHTAMPACITY NO. OF CORES×AWG/KCMIL - AWG/KCMIL AWG/KCMIL INCH MM INCH MM INCH MM LBS/KFT KG/KM A 3×6 133 10 10 0.07 1.8 0.155 3.9 1.29 32.8 1130 1682 93 3×4 259 8 10 0.07 1.8 0.155 3.9 1.4 35.6 1460 2173 122 3×3 259 7 10 0.07 1.8 0.17 4.3 1.51 38.3 1680 2500 140 3×2 259 6 10 0.07 1.8 0.17 4.3 1.59 40.4 1990 2961 159 3×1 259 5 8 0.08 2 0.19 4.8 1.76 44.7 2385 3549 184 3×1/0 266 4 8 0.08 2 0.19 4.8 1.86 47.2 2765 4115 211 3×2/0 329 3 8 0.08 2 0.205 5.2 2 50.8 3255 4844 243 3×3/0 418 2 8 0.08 2 0.205 5.2 2.13 54.1 3890 5789 279 3×4/0 532 1 8 0.08 2 0.22 5.6 2.31 58.7 4720 7024 321 3×250 627 1/0 6 0.095 2.4 0.22 5.6 2.51 63.8 5460 8125 355 3×300 741 1/0 6 0.095 2.4 0.235 6 2.68 68.1 6395 9517 398 3×350 888 2/0 6 0.095 2.4 0.235 6 2.81 71.4 7280 10834 435 3×500 1221 4/0 6 0.095 2.4 0.265 6.7 3.19 81 9820 14614 536
Ampacity-Based on a conductor temperature of 90ºC and an ambient air temperature of 40ºC, per ICEA S-75-381.
