• Model NO.：NL
• Material Shape：Round Wire
• Range of Application：Cold-Resistant
• Certification：ISO9001, CE, UL, CCC, RoHS
• Brand：Optelec
• Transport Package：Carton
• Trademark：Powtech
• Origin：China
• HS Code：73269000
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. NL Material Shape Round Wire Range of Application Cold-Resistant Certification ISO9001, CE, UL, CCC, RoHS Brand Optelec Transport Package Carton Trademark Powtech Origin China HS Code 73269000 Production Capacity 1000PCS/Day

Product Description

Auto Parts ADSS Cable Hardware Dead End Sets for Stay Wire



Description:

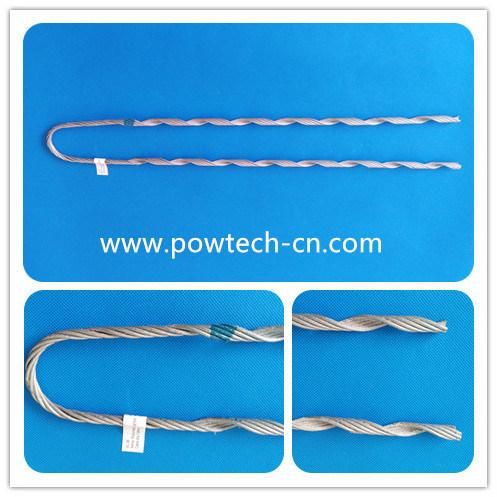

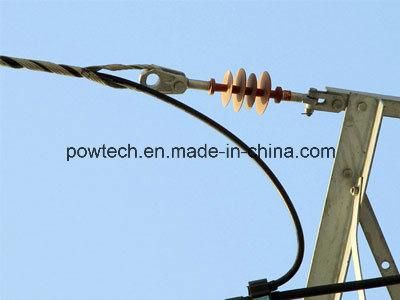

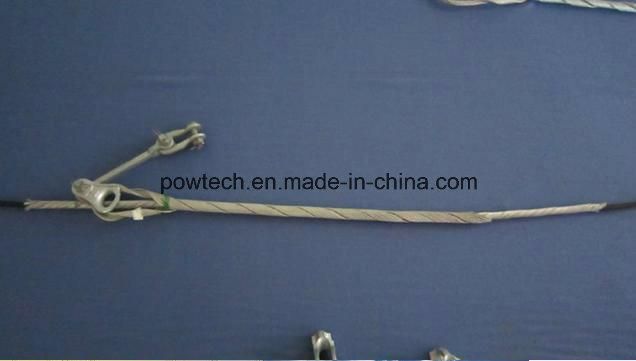

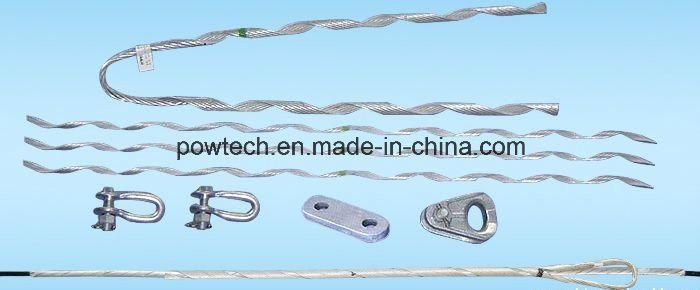

The Preformed guy end grips are used for fixing terminals tower stay wire and where the large size stay wires are needed, such as electric transmission line, antenna, correspondence and lines etc, which can replace the common U-T clamps and wedge type clamps of line tower. The structure of preformed guy grip is simple. Two legs of preformed wire form an empty pipe, and its rear is a preformed stranding link. After coiled around the stay wire, the two legs of preformed wire can generate great grip strength, and stranding link is fixed on the earth anchor or tower. The unique theory and structure provide the clamp with particular function and vivid characters.

Model	Guy Wire (mm)	Length (mm)	Guy Wire (mm2)	Weight (kg)	Color code
NL-25/G	6.6	635	25	0.2	Yellow
NL-35/G	7.65~7.95	711	35	0.3	Black
NL-50/G	8.95~9.30	901	50	0.5	Orange
NL-70/G	10.82~11.10	1016	70	0.8	Green
NL-95/G	12.5	1333	95	1.7	Orange
NL-100/G	13.0	1333	100	1.7	Yellow
NL-120/G	14.0	1460	120	2.2	Yello
