Leaky Feeder Cable of Slywv Bare Copper Wire Braiding Fire Retardant

ZHEJIANG LIBO INDUSTRIAL CO., LTD.
  • Application：Local Communication Cable, Coaxial Cable, Fiber Optic Cable, Long Distance Symmetric Cable, RF Cable
  • Conductor Material：Copper
  • Cover Material：PE
  • Type：Cat 1
  • Material Shape：Hollow Line
  • Conductor Type：Stranded

Base Info

  • Model NO.：SLYWV 75-10 VHF Leaky Feeder
  • Wire Core Material：Steel
  • Certification：CE, ISO, RoHS, CCC, UL
  • Model：MHYV-xx
  • Brand：FUJI
  • Free Copper Inner Conductor：Slywv 75-10 VHF
  • Solid Oxygen：Leaky Feeder
  • Transport Package：Plate
  • Specification：CE, ROSHS, SGS
  • Trademark：Libo cable
  • Origin：Zhejiang, China
  • HS Code：854420
  • Production Capacity：10000kms,Month

Description


NO.ItemsTechnical Requirements1Inner conductor CU2.31±0.03mm2Dielectric FPE9.50±0.20mm3Outer conductor CU16*0.60mm4Inner jacket PE13.0±0.30mm5Outer jacket PVC15.5±0.50mm6impedance75±3Ω7Frequency5-500 MHz8DC resistance inner conductor≤4.1Ω/km9DC resistance outer conductor≤3.9Ω/km10Capacitance Pf/m51±211Insulation resistance>10.4Ω/km12MIN. bend radius150mm13Coupling loss(50%), dB65±1014Operating temperature-40 to +70 centigrade
15

Attenuation@20ºC
≤dB/100m
85 MHz≤3.4dB150 MHz≤4.2dB160 MHz≤4.8dB450 MHz≤6.1dB

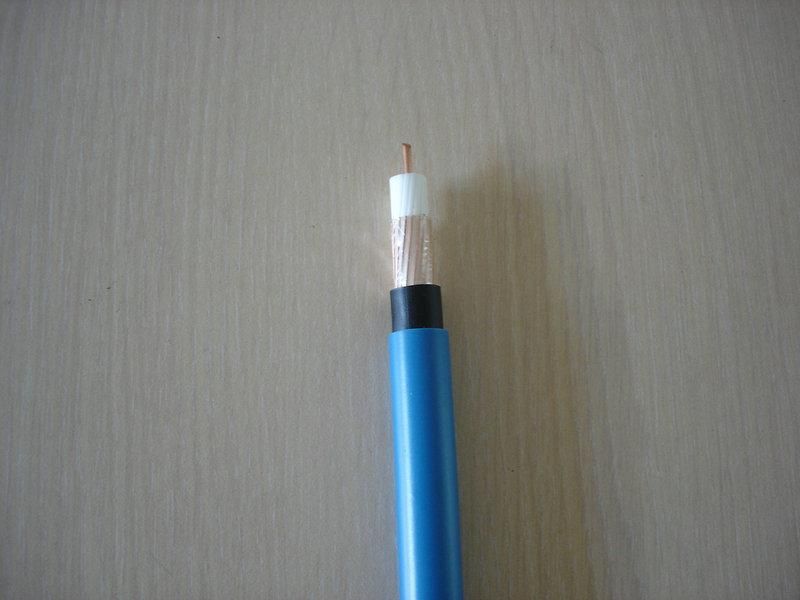

 Leaky Feeder Cable of Slywv Bare Copper Wire Braiding Fire Retardant


Competitive Advantage:

Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.
Over 10 years of experience on leaky feeder cable, big market share in oversea leaky feeder cable industry.
