UL1569 PVC Insulated Electronic Wire
Ningbo A-Line Cable & Wire Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：UL-1569
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, UL, RoHS
- Materials：PVC
- Conductor：Copper
- Environmental Standard：RoHS
- Reference Standard：UL758 UL1581
- Color：as Per Customer′s Requirement
- Length of Cable：as Per Customer′s Requirement
- Testing：Passes UL VW-1 Vertical Flame Test
- Rated Voltage：300V
- Transport Package：in Export Carton
- Specification：RoHS
- Trademark：A-Line
- Origin：China
- HS Code：3320962150
- Production Capacity：3000000 Meters,Month
Description
Maximum
Resistance
At 20ºC
Ω/kmPacking Spec
AWG Conductor
construction
No./φmm Diameter
(mm) Nominal
thickness
(mm) Nominal outer
diameter
(mm) M/Coils 30 7/0.102 0.3 0.40 1.10 381 610 28 7/0.127 0.38 0.41 1.20 239 610 26 7/0.16 0.48 0.41 1.30 150 610 24 11/0.16 0.61 0.40 1.40 94.2 610 22 17/0.16 0.76 0.42 1.60 59.4 610 20 26/0.16 0.94 0.43 1.80 36.7 610 18 41/0.16 1.18 0.46 2.10 23.2 610 16 26/0.254 1.49 0.46 2.40 14.6 305 14 41/0.254 1.88 0.41 2.7 8.96 305 12 65/0.254 2.36 0.42 3.2 5.64 305 10 105/0.254 3.00 0.45 3.9 3.546 305

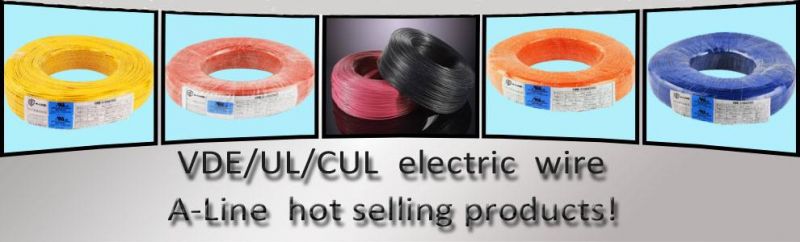

seller products
certification

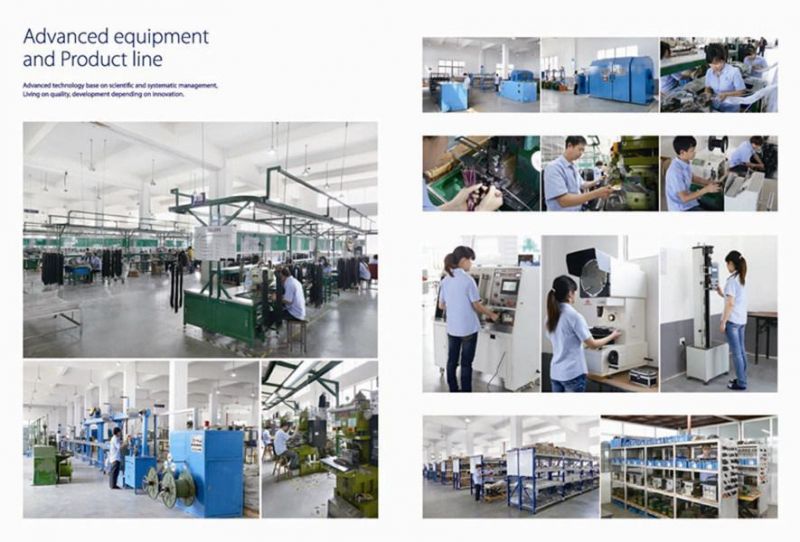

work shop
Please attention
1. Factory direct price.
2. Small order welcome
3. Quality is the soul of an enterprise.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge
Q: What is your terms of payment?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance, balance before shipment.
Why choose us?
1. Advanced process equipment
2. Competitive price and high quality
3. Excellent after-sale service
4. Attractive design and various styles
5. Strict quality assurance system and perfect testing means
6. Advanced process equipment
7. Delivery on time
8. Have a good reputation in the domestic and overseas.
