• Model NO.：LIHCH
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

APPLICATION

Flexible cables are used as power and control cables for electro-acoustic and tone-frequency systems.
They are intended for the transfer of momentum and the data in electronics, computer technology, control, and measurement and regulation techniques.
Cable LiHCH has the same application as the cable LiYCY, but without halogen.
Halogen free cable in case of fire:
- do not spread flame,
- fire products do not contain toxic compounds,
- have a low density of smoke in the process of fire,
- release a small amount of corrosive gases.

DESCRIPTION

Standard:    PSN
Nominal voltage:    250 V
Test voltage:    1500 V

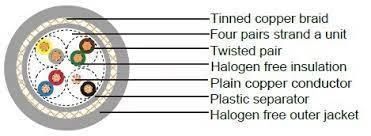

CONSTRUCTION

Conductor: fine stranded copper conductor, class 5, in compliance with DIN VDE 0295
Insulation: slow fuel - based on the polyolefin or the corresponding synthetic polymers.
Separator: Polyester foil.
Screen: tinned copper wire braid.
Sheath: slow fuel - based on the polyolefin or the corresponding synthetic polymers.
