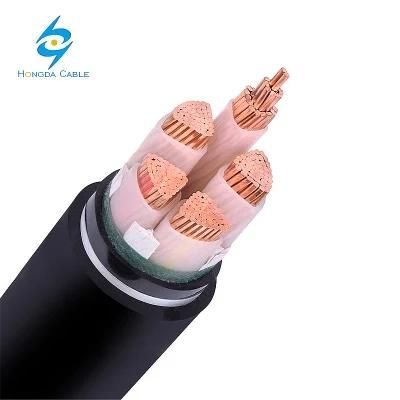

N2xy 4 Core PVC XLPE Flame Retardant Power Cable 4X70mm2
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Cable 4x70mm2
- Wire Core Material：Aluminum
- Certification：ISO, CCC
- Model：Na2xy
- Brand：OEM
- Transport Package：Wooden Drum
- Specification：1.5mm2 to 400mm2
- Trademark：OEM
- Origin：China(Mainland)
- HS Code：8544492100
- Production Capacity：500 Kilometer,Month
Description
Colour Code (2)
Other colours can be manufactured upon request.
Assembly / Inner Covering
The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores,
a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder
is permitted before application of an extruded inner covering. The materials used for inner coverings and fillers shall be
suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables,
the inner covering and fillers shall also be halogen free compound.
Outer Sheath
Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free
compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available
on request.
