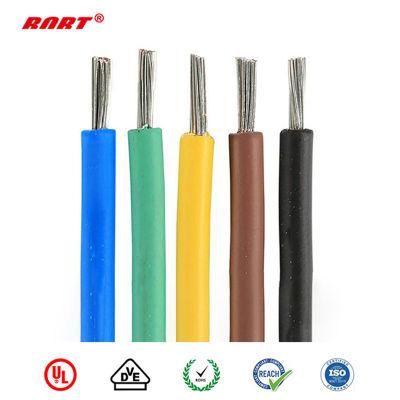

UL1015 24AWG Tinned Copper PVC Insulation Hook up Wire

B&T (Zhangzhou) Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Insulation Material：PVC
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant

Base Info

  • Model NO.：UL1015
  • Certification：ISO9001, UL, RoHS
  • Rated Temperature：80 ºC
  • Rated Voltage：12-14V
  • According to：UL Subject758, UL1581, C22.2
  • Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
  • Performance：for General Purpose Internal Wiring of Appliance
  • Conductor：Stranded, Tinned or Bare Copper Conductor
  • Capacity：300,000km Annual
  • Color：Could Be Customized Color
  • Delivery Time：7-15days
  • Package：Coil or Spool Packing
  • Transport Package：610feet in Roll
  • Specification：2pin 20 AWG 2 Conductors
  • Trademark：B&T
  • Origin：Xiamen, Fujian
  • HS Code：8544492100
  • Production Capacity：300, 000km

Description

Rated Temperature105ºC  InsulatedPVC insulationStandardAWGNO.of CondInsulation Thick.Outside Thick.Packingmmmmmmm/rΩ/mm307/0.10.79 1.90 610354.33 287/0.1270.79 2.00 610223.75 267/0.160.79 2.05 610139.76 2411/0.160.79 2.20 61088.36 2217/0.160.79 2.40 61060.16 2021/0.1780.79 2.55 61038.58 1834/0.1780.79 2.75 61022.98 1626/0.2540.79 3.10 30515.06 1441/0.2540.79 3.50 3059.65 1265/0.2540.79 3.95 3056.07 1065/0.3200.79 5.00 3053.73 855/0.451.20 6.50 3052.23 261/0.4040.792.00 610142.79 241/0.5110.792.10 61089.39 221/0.6430.792.25 61054.30 201/0.8130.792.40 61033.90 181/1.0240.792.65 61021.40
