Thw-90 Cable 12AWG 8AWG Tw Wires & Cables

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：Bare
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：TW,THW
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC
  • Model：Thw
  • Brand：Hongda
  • 1.5 - 10 Sqmm：Solid Conductor
  • 16 - 400 Sqmm：Non Compacted Circular Stranded
  • Transport Package：100m Per Roll,Reel, or as Customer Requirement
  • Specification：1.5mm2 to 400mm2
  • Trademark：Hongda Cable
  • Origin：Made in China
  • HS Code：8544492900
  • Production Capacity：1800km,Month

Description

Basic Info.

Model NO. TW/THW Wire Core Material Bare Copper Wire Certification ISO, CCC Model Thw Brand Hongda 1.5 - 10 Sqmm Solid Conductor 16 - 400 Sqmm Non Compacted Circular Stranded Transport Package 100m Per Roll/Reel, or as Customer Requirement Specification 1.5mm2 to 400mm2 Trademark Hongda Cable Origin Made in China HS Code 8544492900 Production Capacity 1800km/Month

Product Description

THW-90 Cable 12AWG 8AWG TW wires & cables

Application generally in fixed installation, wet and heat resistant.

STANDARDS
International :  IEC 60227-2; IEC 60228; IEC 60332-1
National :  NTP 370.250; NTP 370.252; UL 2556

Thw-90 Cable 12AWG 8AWG Tw Wires & Cables

DESCRIPTION

Application:
In fixed installations, in buildings, dry or wet indoor locations, control board connections and generally in all installations requiring a current capacity greater than TW-80 cable.

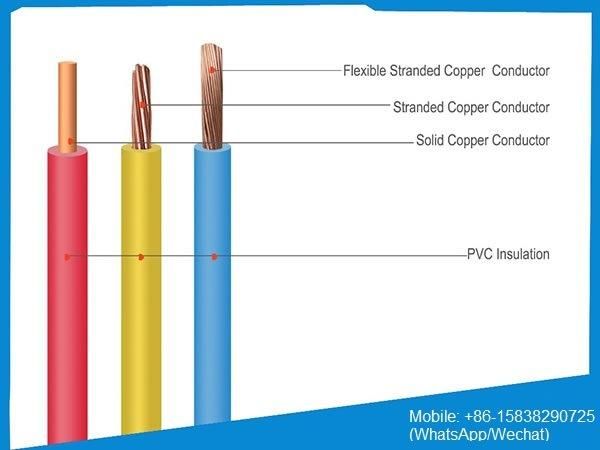

Construction:
1. Conductor: Copper, class B.
2. Insulation: Compound polyvinyl chloride PVC in double layer.

Main characteristics:
Good dielectric strength, resistance to moisture, grease, oil and heat up to serving temperature. Flame retardant.

Gauge:
From 14 AWG up to 8 AWG.

Marking:
THW-90 450/750 V Section.

CONSTRUCTION CHARACTERISTICS
Conductor materialCopper
Insulating materialPVC double layer
ColourYellow / Blue / White / Black / Red / Green
Lead freeYes
DIMENSIONAL CHARACTERISTICS
Total number of wires7
ELECTRICAL CHARACTERISTICS
Rated Voltage Uo/U (Um)450 / 750 V
USAGE CHARACTERISTICS
Flame retardantIEC 60332-1
Oil resistanceGood
Maximum operating temperature90°C

National standards
NTP 370.250: Conductors of insulated cables.
NTP 370.252: Thermoplastic and thermoset insulated cables of rated voltages up to and including 450/750 V.
UL 2556: Wire and Cable Test Methods.

International standards
IEC 60228: Conductors of insulated cables.
IEC 60227-2: Polyvinyl chloride insulated cables of rated voltages up to and including 450/750 V - Test methods.
IEC 60332-1: Test for vertical flame propagation for a single insulated wire or cable.

SIZE
AWG O
MCM 		CROSS SECTION
AL
mm2 		STRANDING
Number of wire x diameter mm. 		INSULATION THICKNESS
mm. 		EXTERNAL DIAMETER
mm 		TOTAL WEIGHT
Kg/Km 		AMPACITY
for  1 conductor in free air
Amp. 		AMPACITY
for  3 conductors in conduit
Amp. 		PACKAGING
142,081 x 1,631,143,9131,603020A,B
123,311 x 2,051,144,3344,503525A,C
105,261 x 2,591,144,8764,405035A,D
88,341 x 3,261,526,30104,507050A,B

142,087 x 0,621,144,1433,203020A,B
123,317 x 0,781,144,6246,903525A,C
105,267 x 0,981,145,2267,505035A,D
88,377 x 1,231,526,73116,607050A,B,E
613,307 x 1,551,527,69170,409565A,E
421,157 x 1,961,528,92255,5012585A,E
3 7x2.21,52
233,627 x 2,471,5210,45388,90170115A,E
142,367 x 2,782,0312.4482,90195130A,D,E

1/053,4919 x 1,892,0313,51621,00230150D,E,Z
2/067,4319 x 2,122,0314,66778,00265175D,E,Z
3/085,0119 x 2,392,0316,01934,00310200D,E,Z
4/0107,2019 x 2,682,0317,461159,00360230D,E,Z

250127,0037 x 2,092,4119,451368,00405255Z
300152,0037 x 2,292,4120,851623,00445285Z
350177,0037 x 2,472,4122,111876,00505310Z
400203,0037 x 2,642,4123,302128,00545335Z
500253,0037 x 2,952,4125,472631,00620380Z
600304,0037 x 3,232,7928,193174,00690420Z
650329,0037 x 3,372,7929,173345,00725440Z
700355,0037 x 3,492,7930,013609,00755460Z

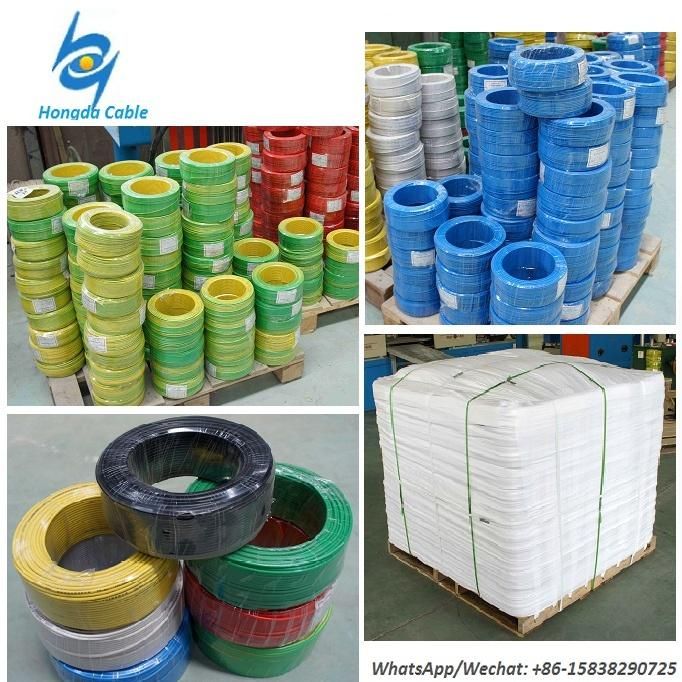

PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.

Thw-90 Cable 12AWG 8AWG Tw Wires & Cables
