Aerial Cable Copper Conductor XLPE Insulated

Guangdong Vango Cable Industry Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Material Shape：Round Wire
  • Transport Package：Wooden Reel, Steel Reel
  • Specification：0.5-630 mm2

Base Info

  • Model NO.：JKYJ JKTRYJ JKLYJ JKLGYJ
  • Trademark：GDYG
  • Origin：Guangdong, China
  • Production Capacity：20000km Per Month

Description

Cable should keep some distance from trees when it is being laid, and it can touch the trees frequently when it is on operation. JKYCopper conductor PE insulated aerial cable JKTRYSoft copper conductor PE insulated aerial cable JKLYAluminum conductor PE insulated aerial cable JKLYJ/QAluminum conductor thin XLPE insulated light aerial cableUsed for fixed installation. JKLGYJ/QSteel core aluminum conductor XLPE insulated light aerial cable  JKLY/QAluminum conductor thin PE insulated light aerial cable Cable should keep some distance from trees when it is being laid, but it can touch the trees frequently when it is on operation.
 Features
1.The rated voltage (U/Um) is 10kv. These cables can be used in the system where the single phase earting fault duration is not more than 1 min, the maximum fault duration is not more than 8h each time and total fault duration are not more than 125h one year.
2.The installation temperature of cable shall be not lower -20ºC
3.The maximum short circuit (maximum duration is not more than 5s) temperature:
-XLPE insulated cable: 250ºC
-HDPE insulated cable: 150ºC
4.The minimum installated bended radius shall be not less than:
-Single core cable--20(D+d)
-Multicore cable--15(D+d)
(D--diameter of cable, mm; d--Nominal diameter of conductor)

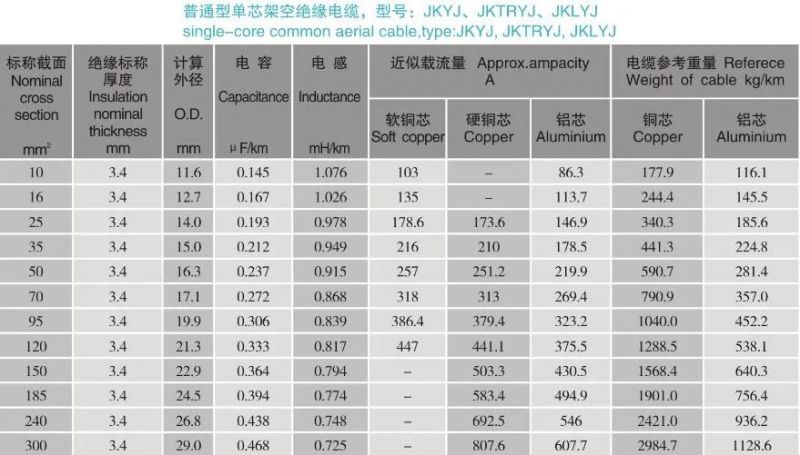

Main Technical Parameter
Aerial Cable Copper Conductor XLPE Insulated
