• Model NO.：Network Cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, CCC, ETL,CPR
• Model：Cat5e U,UTP Duplex Network Cable
• Brand：Risun or OEM
• Insulation：HDPE
• UV：Available
• Frame Returdant：Available
• Conductor：24AWG
• Transport Package：305m,Wooden Drum
• Origin：Hangzhou, Zhejiang, China
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. Network Cable Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model Cat5e U/UTP Duplex Network Cable Brand Risun or OEM Insulation HDPE UV Available Frame Returdant Available Conductor 24AWG Transport Package 305m/Wooden Drum Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

CAT5e U/UTP Duplex Network Cable

Cable Construction

Conductor	24AWG (0.50mm)CCA/Bare Copper
Insulation	0.90mm HDPE
Ripcord	Yes
Sheath	(5.0X10.0)mm PVC / PE / LSZH

Electrical Properities


Conductor Resistance	Max.9.38Ω/100m	Capacitance Unbalance	Max.330pF/100m
Resistance Unbalance	Max.2%	Impedence	100±15Ω
Insulation Resistance	Max.150Ω/km	Spark Test	2000V
Mutual Capacitance	Max.5600pF/100m	Velocity of Propagation	67%

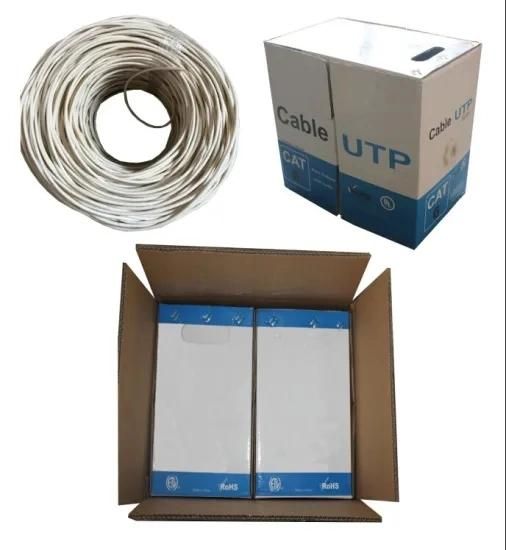

 packing

1) packing lengths: 305m/wooden drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.



company profile

risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.in the past 13 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.


process of production:
FAQ

Q1: What is the MOQ order ?
A1: MOQ is 10000meters.
If you have different and special demands, please contact with us, we'll provide the best solutions to you.

Q2: How to shipping? Is there cheap shipping cost to import to our country ?
A2:The best choice is shipping By sea. Because network cable is very heavy, it's too expensive by air.

By Sea: If you have freight forwarder, they can handle shipping for you. If you don't have it, we can provide the cheapest shipping cost to you, or send our freight forwarder information to you contact directly.

Q3. How to know recycle and new jacket materials ?
A3: Except for conductor price, the jacket materials is the main factors affecting price. Some supplier's price is crazy, because they use recycle materials in production.
Recycle material: The jacket will have bubble, especially tenacity is very bad, it's easy to tear. So the cable's lifetime is short, fire retardant & cold resistance is bad too.
New material: Tenacity is very good, it's hard to tear, and with good fire retardant & cold resistance.

Q4: Can you make OEM ?
Yes, we can supply OEM service to our international clients. It can be marking your brand or any printing that you want. Except for international famous brand.
