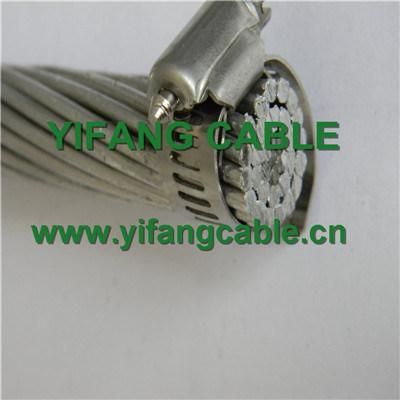

ASTM B232 Standard Bare ACSR Patridge 266.8mcm Conductor
YIFANG ELECTRIC GROUP INC.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：None
- Insulation Material：None
Base Info
- Model NO.：ACSR Patridge
- Material Shape：Round Wire
- Range of Application：Overhead Distributing Line
- Certification：ISO9001, CE, UL, CCC
- Brand：Yifang Cable
- Section Area：266.8mcm
- Code Name：ACSR Patridge
- Material：Aluminum Condcutor
- Strands：26+7 Strands
- Standards：ASTM B232
- Transport Package：Wooden Drum
- Specification：1.1m size Drum
- Trademark：Yifang Cable
- Origin：China
- HS Code：7614100000
- Production Capacity：800km Per Month
Description
TECHNICAL DATA OF ACSR CONDUCTORNO DESCRIPTION UNIT DATA 1 Type/ code name -- Patridge 2 Material -- Aluminium,
Galvanized Steel 3 Reference Standard -- ASTM B 232 4 Cross Section Area -- 266MCM 5 Conductor construction Aliuminum Wire No. No.s 26 Nominal Al wire dia. mm 2.57 Steel Wire No. No.s 7 Nominal Steel wire dia. mm 2.0 6 Approx. Overall Diameter mm 16.28 7 Approx. Weight kg/km 544 8 Rated tensile strength KN 50.22 9 Max. D.C. Resistant 20ºC Ω/km 0.214 10 Current rating A 460
Galvanized Steel
