• Model NO.：AXMK
• Certification：ISO, CCC, HD 603.5D
• Model：Axmk
• Brand：Boan
• Rated Voltage：0.6,1kv
• Standard：HD 603.5D
• Insulation：XLPE Insulation
• Conductor：Alulminum
• Certificate：ISO9001,ISO14001 ,Ohsas18001,CCC
• Sheath：PVC
• Type：Round Solid , Round Stranded , Sector-Shaped Stran
• Flame Retardant：En 60332-1-2
• Inner Covering：EPDM or Plastic Tape
• Transport Package：Fumigated Steel-Wooden Drum,Wooden Drum
• Origin：China Mainland
• HS Code：8544492100

Number
of cores x
nominal
cross section  (mm²)Max. conductor
resistance(Ω/km)Current rating
in the ground¹)
(A)Current ratingin the air¹)(A)Outer
diameter(mm) ca.Total
weight
(kg/km) ca.Standardlenghts/
packing
(m)4 x 16 RE1.910917718.94981000 T4 x 25 RM1.2001129223.77641000 T4 x 35 SM0.86813511223.56891000 T4 x 50 SM0.64115813326.58661000 T4 x 70 SM0.44319616931.01,2391000 T4 x 95 SM0.32023420534.71,5481000 T4 x 120 SM0.25326823938.82,0091000 T4 x 150 SM0.20630027143.22,336500 TPackaging & Shipping

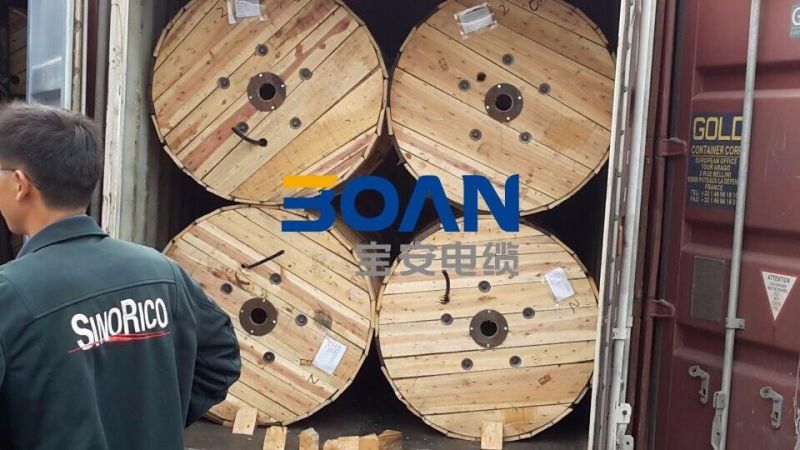

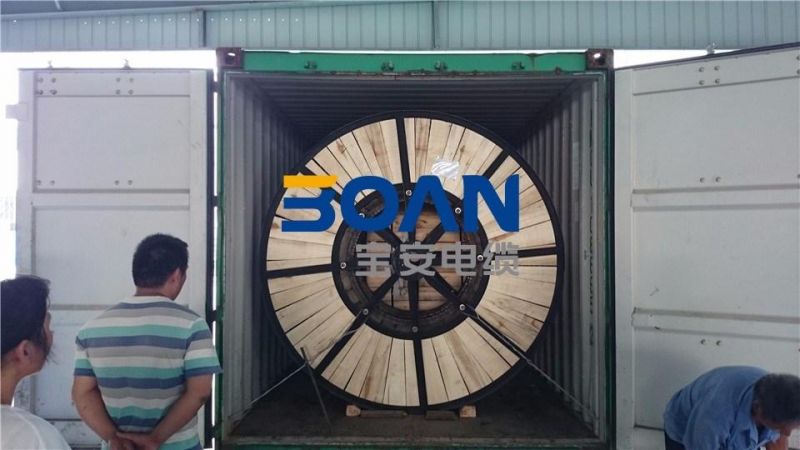

Fumigated Steel-Wooden Drum/Wooden Drum
Company Information
Jiangsu Boan Cable Co., Ltd. was founded in 1996 with a registered capital of 216 million RMB. It is one of key enterprises of China wire and cable industry, the national high-tech enterprises, the innovation and development pilot enterprises of Jiangsu Province, the private technology enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-grade credit enterprise. We have also passed ISO9001 Quality System, ISO14001 Environment Management System Certificate and GB/T28001 Occupational Health and Safety Management System Certificate.
