12/20 (24) KV Al/XLPE/HDPE Twisted Cable for West Africa
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：HDPE
- Material Shape：Round Wire
Base Info
- Model NO.：AL,XLPE,HDPE Cable
- Wire Core Material：Al , Cu
- Certification：ISO, CCC, CE, RoHS, KEMA
- Model：Cis Cable
- Brand：Yifang
- Core：1core, 3core
- Sheath Colour：Black
- Standard：NFC 33226
- Metallic Screen：Aluminum Plastic Tape
- Transport Package：Drum
- Specification：1X150mm2
- Trademark：Yifang
- Origin：Zhengzhou, Henan, China
- HS Code：8544601200
- Production Capacity：150km Per Month
Description
Basic Info.
Model NO. AL/XLPE/HDPE Cable Wire Core Material Al , Cu Certification ISO, CCC, CE, RoHS, KEMA Model Cis Cable Brand Yifang Core 1core, 3core Sheath Colour Black Standard NFC 33226 Metallic Screen Aluminum Plastic Tape Transport Package Drum Specification 1X150mm2 Trademark Yifang Origin Zhengzhou, Henan, China HS Code 8544601200 Production Capacity 150km Per MonthProduct Description

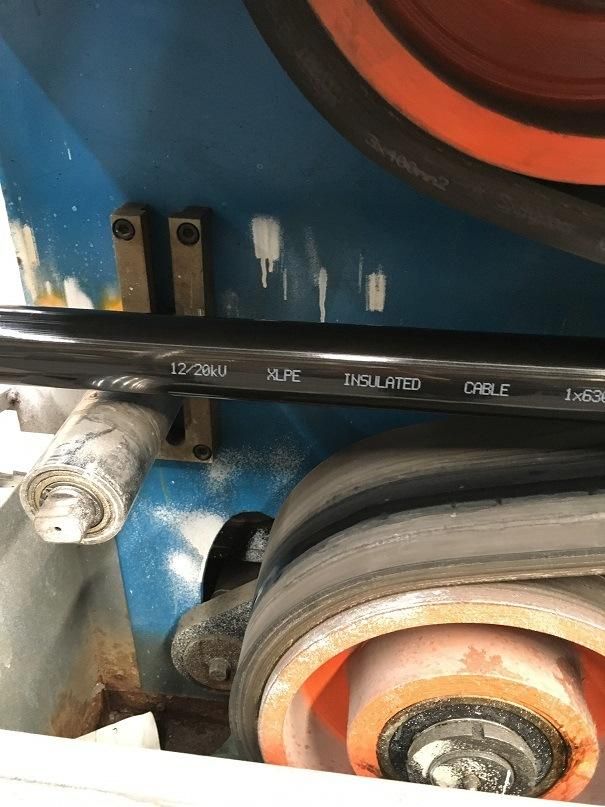

12/20 (24) kV Al/XLPE/HDPE Twisted Cable for West AfricaApplication: The underground power cable is used for power transmission.
Standard: NFC 33-226
Rated voltage: 12/20 (24)KV ,18/30(36)KV
Number of cores: 1 or 3 cores
Commonly Used Size: 50mm2, 95mm2, 120mm2, 150mm2, 240mm2, 630mm2
Construction:
- Conductor: Compacted, circular and stranded aluminum wire, class 2 .(Copper conductor is also optional.)
- Conductor screen: Extruded semi-conducting compound layer
- Insulation: XLPE or TR-XLPE
- Insulation screen: Extruded semi-conducting compound layer with groove
- Material used for longitudinal water tightness: Swelling power
- Metallic screen layer: Longitudinal aluminium tape
- Sheath: PE sheath ,black

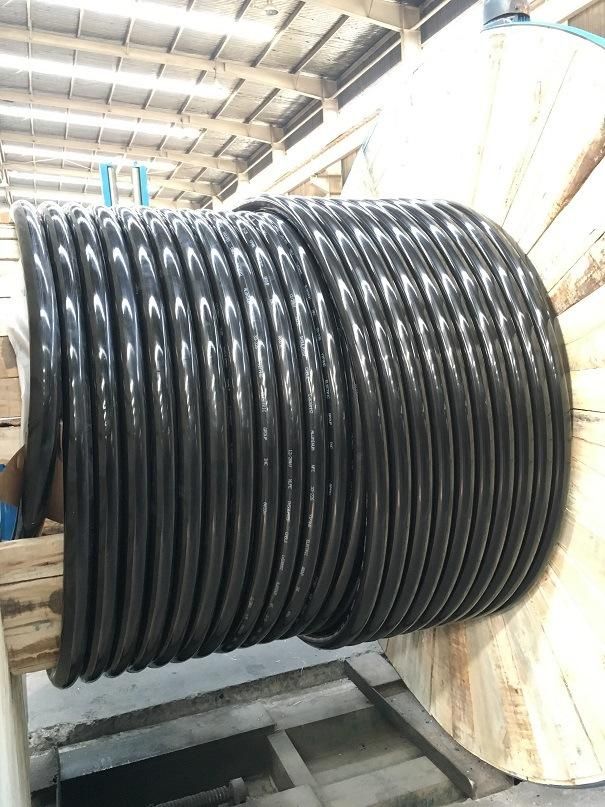

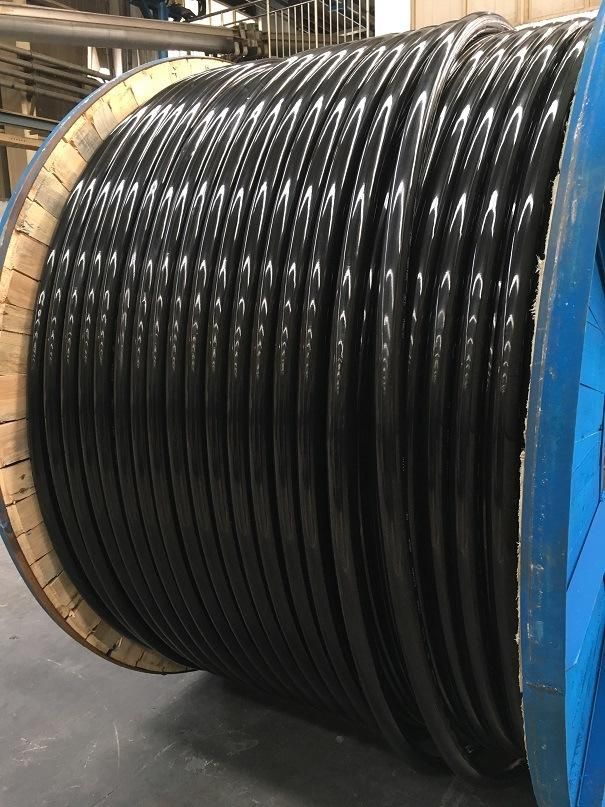

Package: 500m/drum, 1000m/drum ,2000m/drum. It depend on clients' requirement.
Pls feel free to contact us if you need more details.
