• Model NO.：YJLV
• Wire Core Material：Aluminum
• Certification：ISO, CCC
• Model：Yjlv
• Brand：OEM
• Transport Package：in Drum or in Coil
• Specification：10 16 25 35 50 70 95 120 150 185 240
• Trademark：OEM
• Origin：Henan
• HS Code：8544492100
• Production Capacity：10000 M Per Day

Basic Info.

Model NO. YJLV Wire Core Material Aluminum Certification ISO, CCC Model Yjlv Brand OEM Transport Package in Drum or in Coil Specification 10 16 25 35 50 70 95 120 150 185 240 Trademark OEM Origin Henan HS Code 8544492100 Production Capacity 10000 M Per Day

Product Description

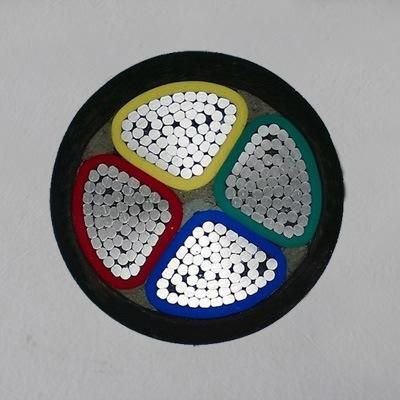

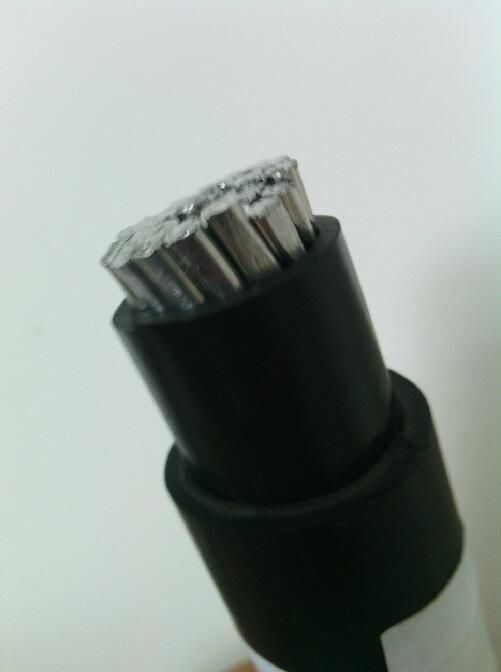

Power Cable 0.6/1kv PVC/XLPE Insulated Sheathed Steel Tape/Wire/AL Wire Armoured Low Voltage waterproof electrical cable

 waterproof electrical cable

600/1000 PVC inuslated and sheathed power cable:

Rated voltage: 600/1000V

Conductor: BS 6360 Class 2, standard copper or alminum(IEC 60228)

Insulation: BS 6746 TI I PVC comppound

Insulation Color: Standard

Sheath(jacket): BS6746 TM1 PVC Compound

Operating temperature:70 °c

Mini bending radius: 10*overall insulated diameter

Standard: BS 6346 and IEC 60502

600/1000 XLPE inuslated and PVC sheathed power cable:

Rated voltage: 600/1000V

Conductor: BS 60228 Class 2, standard copper or alminum(IEC 6360)

Insulation: Cross linked polyethylene(XLPE)

Insulation Color: Standard

Sheath(jacket): BS6746 TM1 PVC Compound

Operating temperature: 90 °c

Mini bending radius: 10*overall insulated diameter

Standard: BS5467 and IEC 60502

600/1000 PVC inuslated and sheathed, steel wire armoured power cable:

Rated voltage: 600/1000V

Conductor: BS 6360 Class 2, standard copper or alminum(IEC 60228)

Insulation: BS 6746 TI I PVC comppound (XLPE Optional)

Insulation Color: Standard

Armouring: Single layer of galvanized steel wire(BS 1442, 443)

Sheath(jacket): BS6746 TM1 PVC Compound

Operating temperature: 70°c

Mini bending radius: 15*overall insulated diameter

Standard: BS6346 and IEC 60502

600/1000 PVC inuslated and sheathed, steel tape armoured power cable:

Rated voltage: 600/1000V

Conductor: BS 6360 Class 2, standard copper or alminum(IEC 60228)

Insulation: BS 6746 TI I PVC comppound (XLPE Optional)

Insulation Color: Standard

Armouring: Double layer galvanized steel tape

Sheath(jacket): BS6746 TM1 PVC Compound

Operating temperature: 70°c

Mini bending radius: 15*overall insulated diameter

Standard: BS6346 and IEC 60502

600/1000 XLPE inuslated and sheathed, aluminum wire armoured power cable:

Rated voltage: 600/1000V

Conductor: BS 60885 Class 2, standard copper or alminum(IEC 60228)

Insulation: Cross linked polythylene(XLPE)

Insulation Color: Standard

Armouring: Round aluminum wire

Sheath(jacket): BS6746 TM1 PVC Compound

Operating temperature: 90°c

Mini bending radius: 15*overall insulated diameter

Standard: BS6346 and IEC 60502
