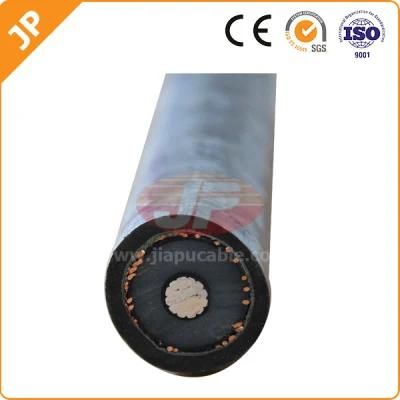

• Model NO.：6,10kv XLPE
• Wire Core Material：Aluminium Wire
• Certification：ISO, CCC, SABS
• Model：6,10kv XLPE
• Brand：Jiapu
• Transport Package：Export Steel Wooden or Wooden Drum
• Specification：50mm2, 70mm2, 95mm2, as demand
• Trademark：JP
• Origin：China
• HS Code：8544601200
• Production Capacity：5000 Kilometers,Month

MV(6 to 35kv) Power CableModel and DescriptionNo.of CoreConductor cross-section area(mm2)xlpe insulation1        3 10 16 25 35 70 95 120 150 185 240 300 400 500 630 800 1000Cu coreAl CoreYJV;PVC sheathed power cableYJLV;PVC sheathed power cableYJV22;steel tape armoured,PVC sheathed power cableYJLV22;steel tape armoured,PVC sheathed power cableYJV32,YJV42;steel wire armoured ,PVC sheathed power cableYJLV32,YJLV42;steel wire armoured ,PVC sheathed power cablepvc insulationCu CoreAl CoreVV(VY);PVC(PE)sheathed power cableVLV(VLY);PVC(PE)sheathed power cableVV22(VV23);steel tape armoured,PVC(PE)sheathed power cableVLV22(VLV23);steel tape armoured,PVC(PE)sheathed power cableVV32(VV33),VV42(VV43);steel wire armoured ,PVC(PE)sheathed power cableVLV32(VLV33),VLV42(VLV43);steel wire armoured ,PVC(PE)sheathed power cable


Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
                   15 x cable O.D for single-core armoured cables
                    15 x cable O.D for multi-core non-armoured cables
                   12 x cable O.D for multi-core armoured cables

Certificates
CE, RoHS, CCC, KEMA and more others at request
SpecificationsFor laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.YJLVAl. Conductor, XLPE Insulated, PVC Sheathed Power CableYJYCopper Conductor, XLPE Insulated, PE Sheathed Power CableFor laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.YJLYAl. Conductor, XLPE Insulated, PE Sheathed Power CableYJV22XLPE Insulated,Steel Tape Armored,PVC Sheathed Power CableSuitable for burying in ground, Able to bear external mechanical forces but large pulling forces.YJLV22Al. Insulated,Steel Tape Armored,PVC Sheathed Power CableYJV32Copper Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power CableApply to shafts,water and soil,able to bear the larger positive pressure.YJLV32Al.Conductor, XLPE Insulated, Fine Steel Wire Armored,PVC Sheathed Power CableYJV42Copper Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power CableFor laying in shaft, water underground and large diference of level, able to bear external mechanical pressure and moderate pulling force.YJLV42Al.Conductor, XLPE Insulated,Thick Steel Wire Armored,PVC Sheathed Power Cable
