Electric Wire Cable Roll Building Wire
Luoyang Asian Sun Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：electric wire
- Material Shape：Round Wire
- Range of Application：as The Costumer Request
- Certification：ISO9001, CE, UL, CCC
- Brand：Asian Sun
- Transport Package：Rolls
- Specification：as the costumer request
- Trademark：Asian Sun
- Origin：Henan, China
- HS Code：8544110000
- Production Capacity：50000meters Per Day
Description
Copper Building Wire Type THHN Specification
Item | THHN |
Place of Origin | China |
Brand Name | customized |
Type | insulated |
Application | Underground/water |
Conductor Material | Copper |
Conductor Type | Solid & Strands |
Voltage | 600V |
Jacket | Nylon |
Insulation | PVC |
Rated Temperature | -20~90 |
AWG Size | Nominal Section (mm²) | No. / Dia of Conductor (mm) | Insulation Thickness (mm) | Nylon Thickness (mm) | Overall Dia (mm) |
20 | 0.519 | 1X0.813 | 0.38 | 0.10 | 1.77 |
18 | 0.823 | 1X1.020 | 0.38 | 0.10 | 1.98 |
16 | 1.310 | 1X1.290 | 0.38 | 0.10 | 2.25 |
14 | 2.080 | 1X1.630 | 0.38 | 0.10 | 2.59 |
12 | 3.310 | 1X2.050 | 0.38 | 0.10 | 3.01 |
10 | 5.260 | 1X2.590 | 0.51 | 0.10 | 3.81 |
8 | 8.340 | 1X3.260 | 0.76 | 0.13 | 5.04 |
16 | 1.31 | 19X0.30 | 0.38 | 0.10 | 2.46 |
16 | 1.31 | 7X0.49 | 0.38 | 0.10 | 2.43 |
14 | 2.08 | 19X0.38 | 0.38 | 0.10 | 2.86 |
14 | 2.00 | 7X0.60 | 0.38 | 0.10 | 2.86 |
12 | 3.31 | 19X0.47 | 0.38 | 0.10 | 3.32 |
12 | 3.50 | 7X0.80 | 0.38 | 0.10 | 3.36 |
10 | 5.26 | 19X0.60 | 0.51 | 0.10 | 4.22 |
10 | 5.50 | 7X1.00 | 0.51 | 0.10 | 4.22 |
8 | 8.37 | 19X0.75 | 0.76 | 0.13 | 5.53 |
8 | 8.37 | 7X1.23 | 0.76 | 0.13 | 5.47 |
6 | 13.30 | 19X0.95 | 0.76 | 0.13 | 6.53 |
6 | 13.30 | 7X1.55 | 0.76 | 0.13 | 6.43 |
4 | 21.15 | 19X1.19 | 1.02 | 0.15 | 8.29 |
4 | 21.15 | 7X1.96 | 1.02 | 0.15 | 8.22 |
2 | 33.62 | 19X1.50 | 1.02 | 0.15 | 9.84 |
2 | 33.62 | 7X2.47 | 1.02 | 0.15 | 9.75 |
0 | 42.36 | 19X1.69 | 1.27 | 0.18 | 11.35 |
0 | 42.36 | 7X2.78 | 1.27 | 0.18 | 11.24 |
1/0 | 53.49 | 19X1.89 | 1.27 | 0.18 | 12.35 |
2/0 | 67.43 | 19X2.12 | 1.27 | 0.18 | 13.50 |
3/0 | 85.01 | 19X2.39 | 1.27 | 0.18 | 14.85 |
4/0 | 107.20 | 19X2.68 | 1.27 | 0.18 | 16.30 |
250 | 127.00 | 37X2.09 | 1.52 | 0.20 | 18.07 |
300 | 152.00 | 37X2.29 | 1.52 | 0.20 | 19.47 |
350 | 177.00 | 37X2.47 | 1.52 | 0.20 | 20.73 |
Luoyang Asian Sun wire & cable Co., Ltd., founded in 2006 and located in the Industrial Cluster area of Yichuan, Luoyang, covers an area of more than 60, 000 square meters, is an independent export-oriented enterprise, professionally engaged in design, manufacturing and trade.
We specialize in the production and supply Aluminum rod, Aluminum stranded cable, Bare conductor, Overhead insulated cable etc, OEM also accepted.
The expanded business of our Group includes industry, Hardware, electromagnetically device, new energy equipment and auxiliary products, as well as the manufacturing and trade of municipal rescue supporting materials.

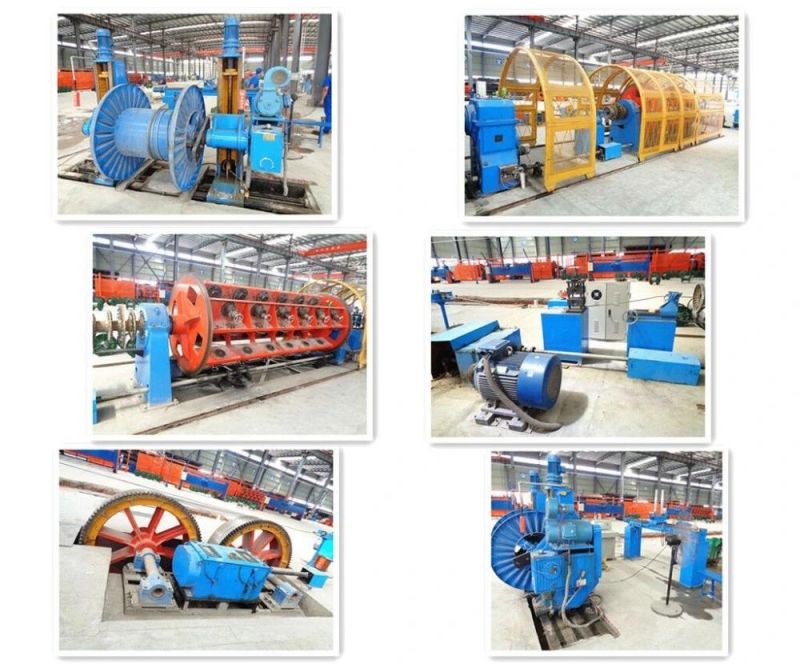

Luoyang Asian Sun wire & cable has over 200 employees, five modern management workshops and 37 advanced production equipments, Aluminum rod annual output of 200, 000 tons and Cable products annual sales over 500 million.
We keep diverse products according to customer and market demand. With superior quality products, reasonable prices and quick delivery, our company has attained a great reputation among our customers. Our products are export to in America, Asia, Africa, Australia etc, more than 50 countries such as Canada, India, Pakistan, Thailand, Malaysia, Algeria, South Africa, Botswana, Mali, Senegal, Djibouti, Ethiopia, Egypt, Argentina, Australia, New Zealand, Russia, Bolivia, Georgia and etc. We welcome more friends to cooperate with us in the near future.
We regard integrity management and pursuit excellence principle as enterprise tenet, Eagle-like individual and Geese-like team as spirit, with reliable quality and efficient service, forever with you!
Customer Visit
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.
Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C.
Welcome to place order immediatel !
