2*16 Twisted Service Drop Cables Aluminium Conductor XLPE/PVC Insulated
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Insulation Material：XLPE
- Material Shape：Round Wire
Base Info
- Model NO.：2*16 twisted service drop cables
- Certification：CE, CCC, RoHS
- Insulation：XLPE,PE,PVC
- Core：2
- Standard：IEC,NFC33-209
- Quality Guarantee：10 Years
- Sheath Color：Black
- Mark：Laser Type
- Manufacture：Yes
- Sample：Yes
- Cable Parts：Yes
- Transport Package：Wooden Drum
- Specification：4CORE ABC cable
- Trademark：Hongda
- Origin：China, Henan
- HS Code：8544492100
- Production Capacity：3000km,Per Months
Description
1,2,4,3+k16-240 JKLV Aluminum conductor PVC insulated aerial cable 16-240 JKY Copper conductor PE insulated aerial cable 16-240 JKLY Aluminum conductor PE insulated aerial cable 16-240 JKYJ Copper conductor XLPE insulated aerialcable 16-240 JKLYJ Aluminum conductor XLPE insulated aerial cable 16-240
Low Voltage Aerial Bundled Cable/ Low Voltage ABC Cable
The basic construction is as follows:
3 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.
Standards:
(1). BS 7870-5: Part 5: Polymeric insulated aerial bundled conductors (ABC) of rated voltage 0.6/1 kV for overhead distribution
Packaging&Delivery
| Nom.Cross sec(mm²) | Insulation Thickness(mm) | Outer Diameter Approx.(mm) | Conductor Resistance at 20 ºC(Ω/KM) | Test Voltage(KV/min) | Breaking Load(N) | Permissible ampacity at 25ºC(In Air)(A) |
| 10 | 1 | 6 | ≤3.08 | 3.5/1 | ≥1650 | 65 |
| 16 | 1.2 | 7.4 | ≤1.91 | 3.5/1 | ≥2517 | 86 |
| 25 | 1.2 | 8.5 | ≤1.20 | 3.5/1 | ≥3762 | 111 |
| 35 | 1.4 | 9.8 | ≤0.868 | 3.5/1 | ≥5177 | 128 |
| 50 | 1.4 | 11.1 | ≤0.641 | 3.5/1 | ≥7011 | 154 |
| 70 | 1.4 | 12.8 | ≤0.443 | 3.5/1 | ≥10354 | 193 |
| 95 | 1.6 | 14.8 | ≤0.320 | 3.5/1 | ≥13727 | 236 |
| 120 | 1.6 | 16.2 | ≤0.253 | 3.5/1 | ≥17339 | 274 |
| 150 | 1.8 | 17.8 | ≤0.206 | 3.5/1 | ≥21033 | 316 |
| 185 | 2 | 20.2 | ≤0.164 | 3.5/1 | ≥26732 | 355 |
| 240 | 2.2 | 22.8 | ≤0.125 | 3.5/1 | ≥34679 | 419 |
| 300 | 2.2 | 25 | ≤0.100 | 3.5/1 | ≥43349 | 526 |
| 400 | 2.2 | 28 | ≤0.0778 | 3.5/1 | ≥55707 | 599 |
Low Voltage Aerial Bundled Cable/ Low Voltage ABC Cable
The basic construction is as follows:
3 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.
Standards:
(1). BS 7870-5: Part 5: Polymeric insulated aerial bundled conductors (ABC) of rated voltage 0.6/1 kV for overhead distribution
Packaging&Delivery

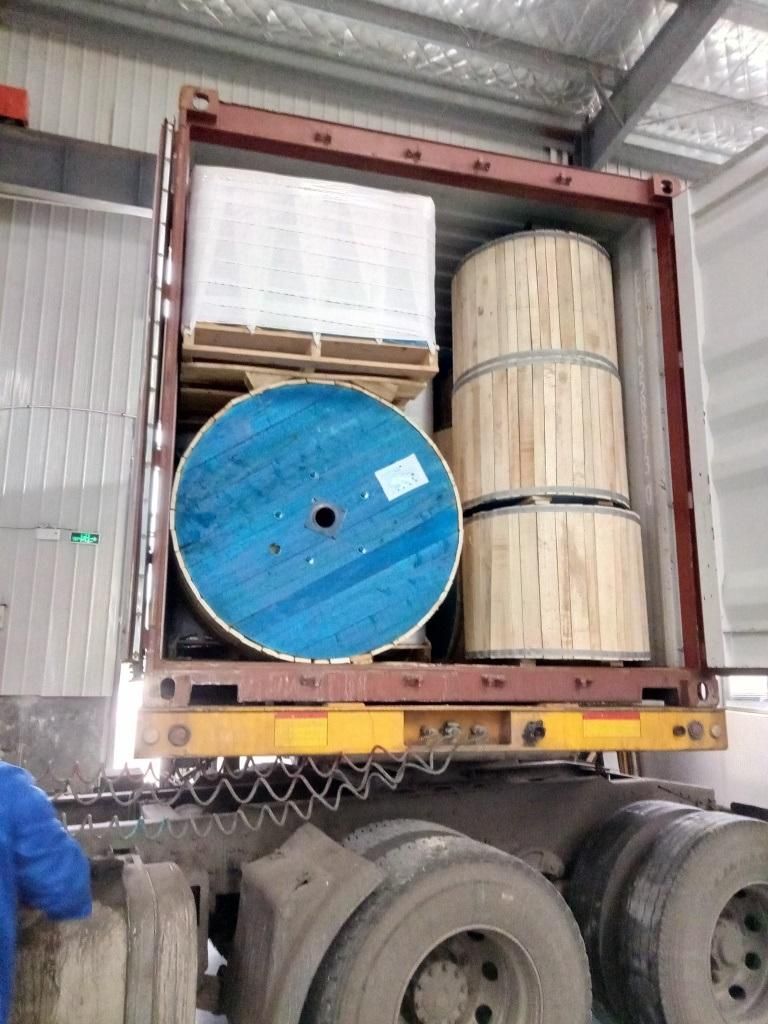

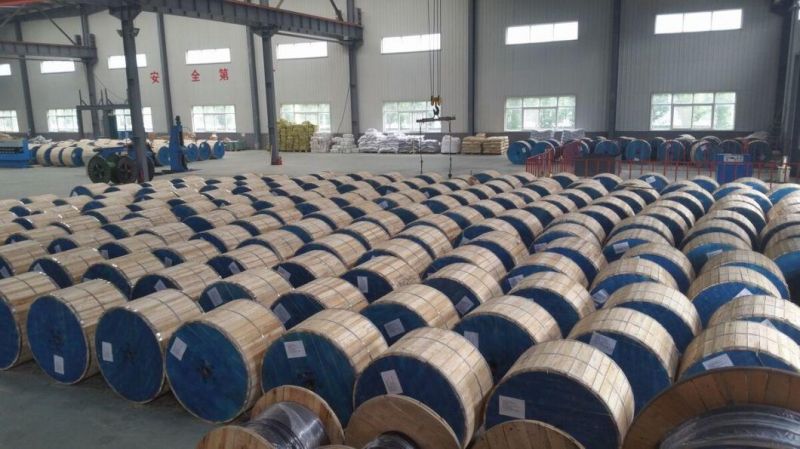

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 10 days (detailly depend on the order quantity)
Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.
