Duplex Triplex Quadruplex ABC Cable
HENAN BAOFENG CABLE CO., LTD.- Transport Package:Wooden Drum,Ply-Wood Drum,Rolls
- Specification:50mm2 70mm2 95mm2 120mm2
- Trademark:HNBF
- Origin:Zhengzhou, Henan
Base Info
- Model NO.:ABC Cable
- HS Code:8544492100
- Production Capacity:25000km,Year
Description
Code wordSize No. of Wires Insulation Thickness Nominal Diameter Rated Strength Nominal Weight Ampacity AWG or Kcmil mm kg/km mm Bare O.D. kg AL or ALLoy LDPE HDPE XLPE A AAC Quince 1/0 7 1.524 9.347 12.395 903 147.48 203.70 206.14 206.14 240 Haw 1/0 19 1.524 9.474 12.522 980 147.48 204.49 209.96 209.96 240 Orange 2/0 7 1.524 10.513 13.561 1139 147.48 257.90 261.02 261.02 280 Ironwood 2/0 19 1.524 10.643 13.691 1211 186.02 250.41 253.21 253.21 280 Fig 3/0 7 1.524 11.801 14.849 1377 233.64 315.53 319.08 319.08 320
Operating Features
Rated voltage Uo/U 0.6/1kV
Max. Continuouspermissive working temperature of conductor: PVC insulation should be not more than 70 ºC, and XLPE insulation should be not less than 90 ºC.
The installation temperature of cable should be not less than -20ºC.
When overall diameter of cable(D) is less than 25mm, permissive bending radius of cable should be not less than 4D. When overall diameter(D)of cable is equal to and above 25mm, permissive bending radius of cable should be not less than 6D.
Our Certifications

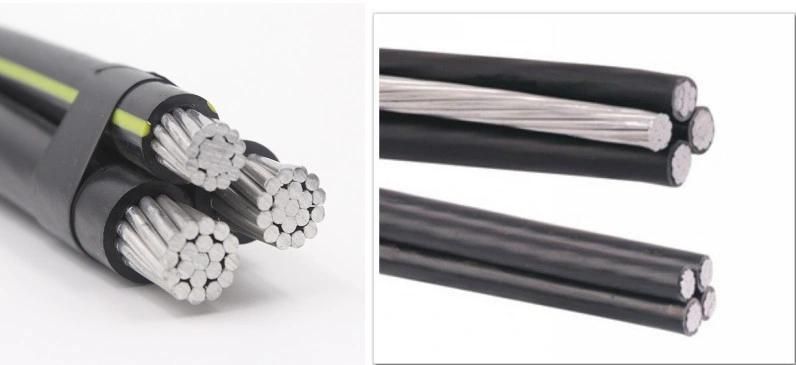

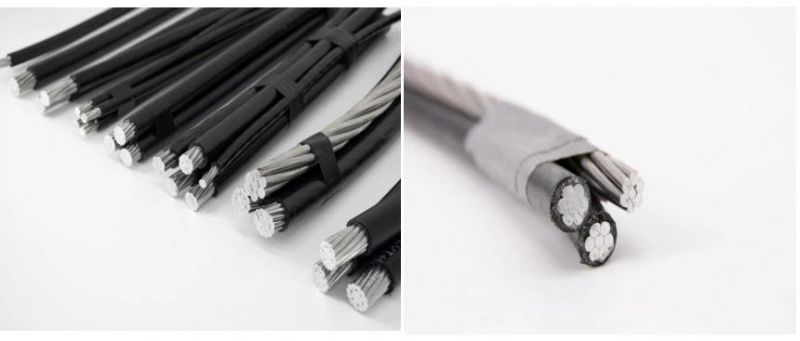

Detailed Photos

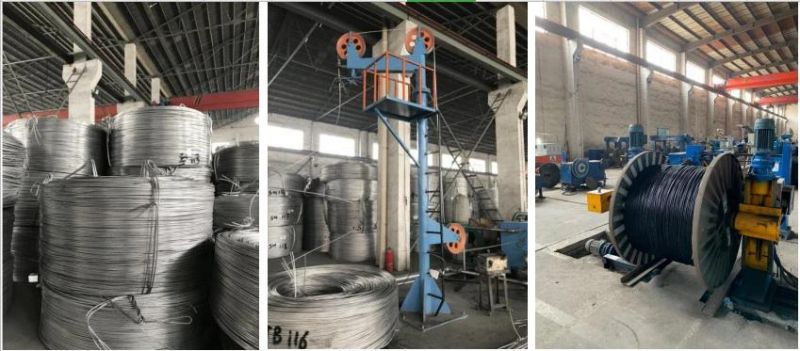

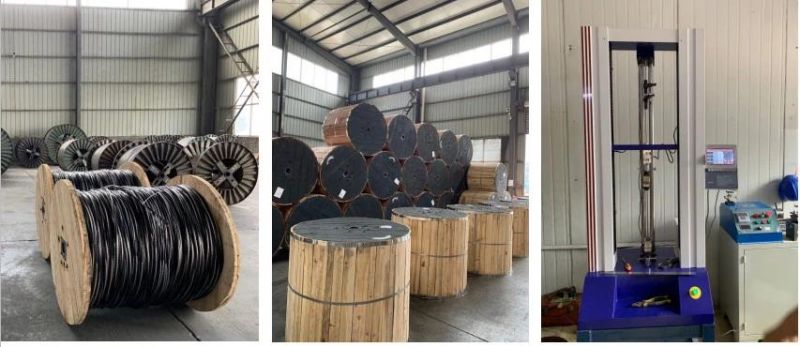

Our Factory
Our Team
Why Choose Us1. Strict quality control system, excellent quality with reasonable price.

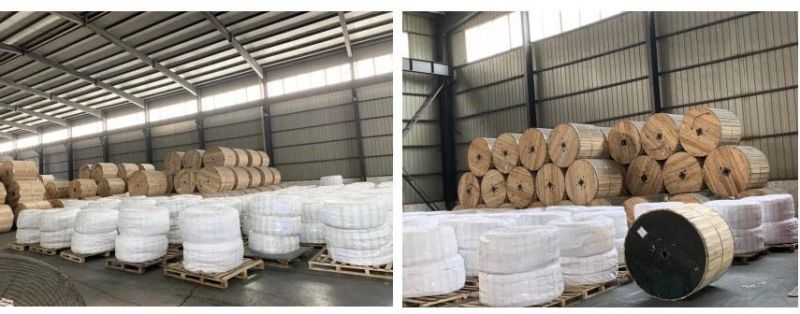

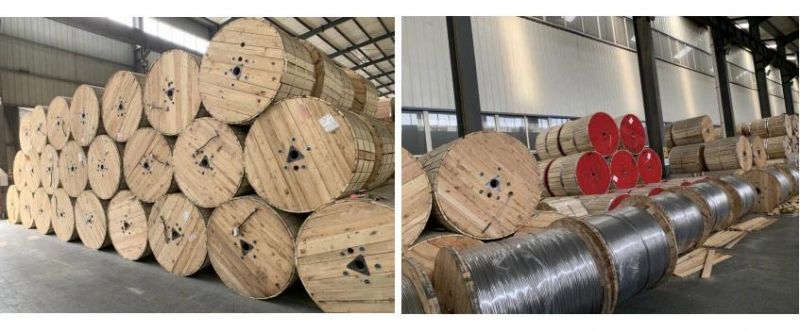

Packing
wooden package
soft package
Operating Features
Rated voltage Uo/U 0.6/1kV
Max. Continuouspermissive working temperature of conductor: PVC insulation should be not more than 70 ºC, and XLPE insulation should be not less than 90 ºC.
The installation temperature of cable should be not less than -20ºC.
When overall diameter of cable(D) is less than 25mm, permissive bending radius of cable should be not less than 4D. When overall diameter(D)of cable is equal to and above 25mm, permissive bending radius of cable should be not less than 6D.
Our Certifications

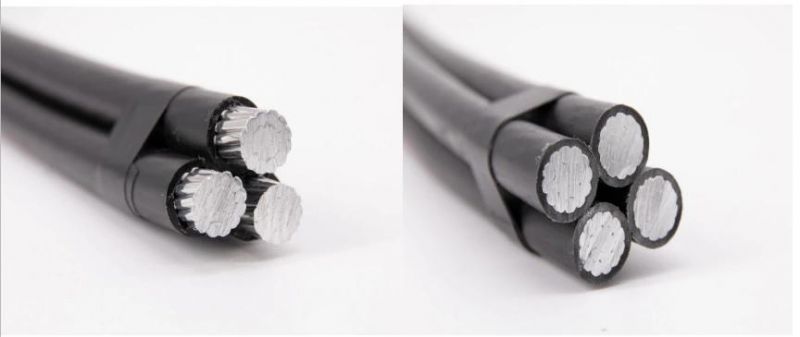

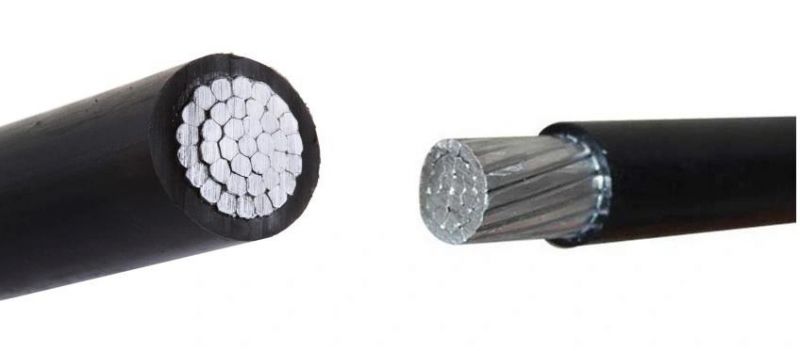

Detailed Photos
Our Factory
Our Team
Why Choose Us
1. Strict quality control system, excellent quality with reasonable price.
2. Strong and Professional R&D team to meet your specific needs.
3. Rapid delivery and feedback. Faster lead time than our competitors.
4. OEM service available based on official & legal authorization.
5. Free sample is available.
6. Appointed shipping company is acceptable.
Packingwooden package
soft package
