• Model NO.：Thhn Thwn Xhhw Thw Electrical Wire And Cable
• Material Shape：Round Wire
• Range of Application：LSOH
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• 1.5 - 10 Sqmm：Solid Conductor
• 16 - 400 Sqmm：Non Compacted Circular Stranded
• Transport Package：100m Per Roll,Reel, or as Customer Requirement
• Specification：12awg
• Trademark：Hongda Cable
• Origin：Made in China
• HS Code：8544492900
• Production Capacity：1800km,Month

Basic Info.

Model NO. Thhn Thwn Xhhw Thw Electrical Wire And Cable Material Shape Round Wire Range of Application LSOH Certification ISO9001, CCC, SGS Brand Hongda 1.5 - 10 Sqmm Solid Conductor 16 - 400 Sqmm Non Compacted Circular Stranded Transport Package 100m Per Roll/Reel, or as Customer Requirement Specification 12awg Trademark Hongda Cable Origin Made in China HS Code 8544492900 Production Capacity 1800km/Month

Product Description

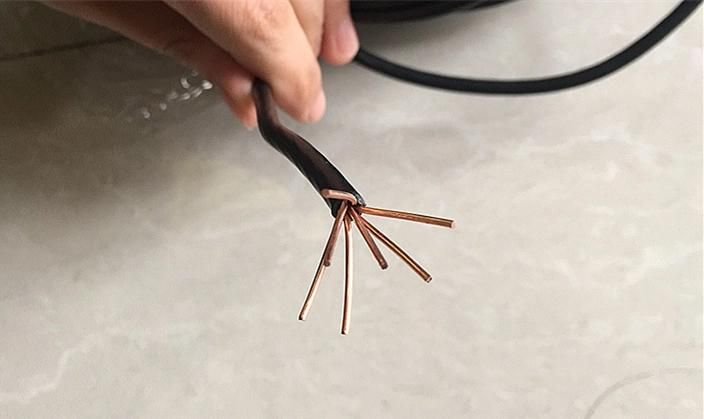

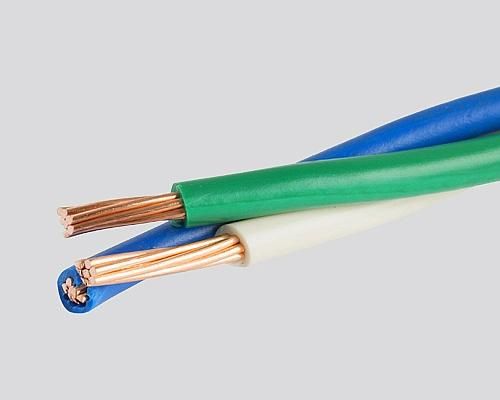

750Mcm 500Mcm 350 Mcm 250Mcm Thhn Thwn Xhhw Thw Electrical Wire And Cable

60227 IEC 01 (THW)
450/750 V 70°C solid and stranded conductor PVC insulated, single core

THW Applications:
The copper conductors type THW are used for power and lighting circuits in industrial, commercial and residential facilities where it is required of more security, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places; its maximum temperature of operation is of 75 ºC and its voltage of service for all the applications it is 600 V.



THW Specification:

SIZE AWG O MCM	CROSS SECTION AL mm2	STRANDING Number of wire x diameter mm.	INSULATION THICKNESS mm.	EXTERNAL DIAMETER mm	TOTAL WEIGHT Kg/Km	AMPACITY for  1 conductor in free air Amp.	AMPACITY for  3 conductors in conduit Amp.	PACKAGING
14	2,08	1 x 1,63	1,14	3,91	31,60	30	20	A,B
12	3,31	1 x 2,05	1,14	4,33	44,50	35	25	A,C
10	5,26	1 x 2,59	1,14	4,87	64,40	50	35	A,D
8	8,34	1 x 3,26	1,52	6,30	104,50	70	50	A,B
14	2,08	7 x 0,62	1,14	4,14	33,20	30	20	A,B
12	3,31	7 x 0,78	1,14	4,62	46,90	35	25	A,C
10	5,26	7 x 0,98	1,14	5,22	67,50	50	35	A,D
8	8,37	7 x 1,23	1,52	6,73	116,60	70	50	A,B,E
6	13,30	7 x 1,55	1,52	7,69	170,40	95	65	A,E
4	21,15	7 x 1,96	1,52	8,92	255,50	125	85	A,E
3		7x2.2	1,52
2	33,62	7 x 2,47	1,52	10,45	388,90	170	115	A,E
1	42,36	7 x 2,78	2,03	12.4	482,90	195	130	A,D,E
1/0	53,49	19 x 1,89	2,03	13,51	621,00	230	150	D,E,Z
2/0	67,43	19 x 2,12	2,03	14,66	778,00	265	175	D,E,Z
3/0	85,01	19 x 2,39	2,03	16,01	934,00	310	200	D,E,Z
4/0	107,20	19 x 2,68	2,03	17,46	1159,00	360	230	D,E,Z
250	127,00	37 x 2,09	2,41	19,45	1368,00	405	255	Z
300	152,00	37 x 2,29	2,41	20,85	1623,00	445	285	Z
350	177,00	37 x 2,47	2,41	22,11	1876,00	505	310	Z
400	203,00	37 x 2,64	2,41	23,30	2128,00	545	335	Z
500	253,00	37 x 2,95	2,41	25,47	2631,00	620	380	Z
600	304,00	37 x 3,23	2,79	28,19	3174,00	690	420	Z
650	329,00	37 x 3,37	2,79	29,17	3345,00	725	440	Z
700	355,00	37 x 3,49	2,79	30,01	3609,00	755	460	Z

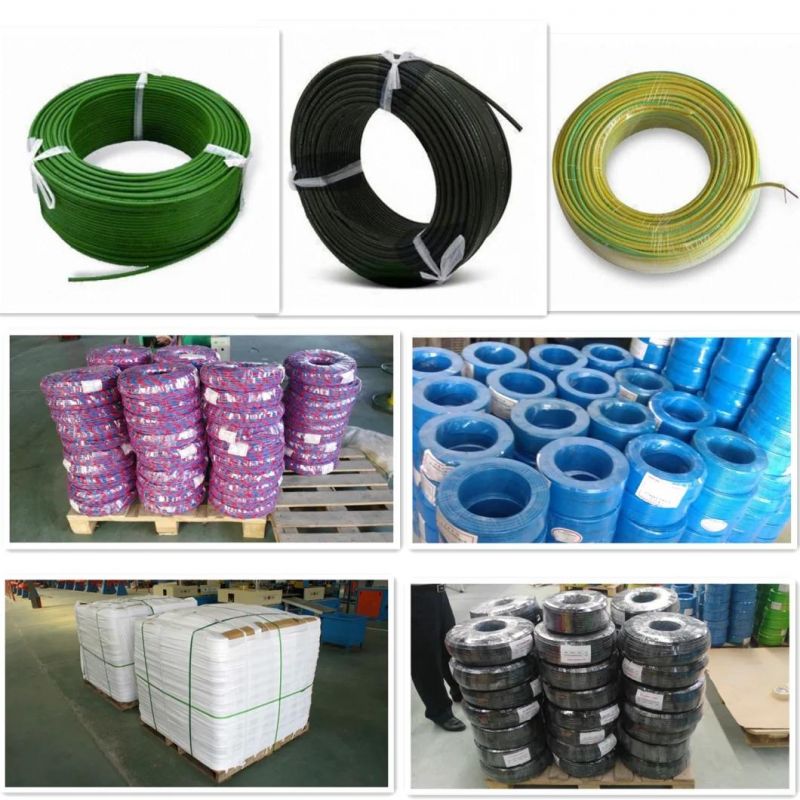

PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.




Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
