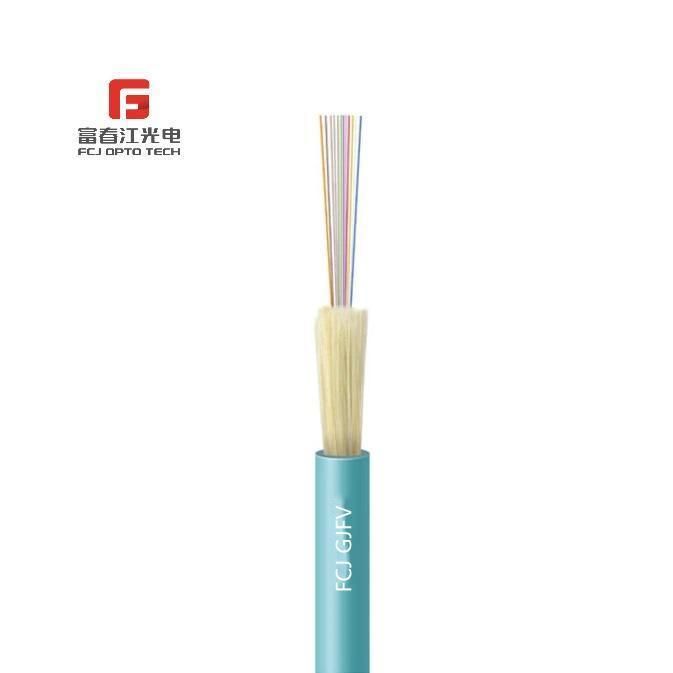

FTTH Gjfv Multi-Cores Mini Round Fiber Optic Cable
Zhejiang Fuchunjiang Photoelectric Science Technology Co., Ltd.- Application：Communication
- Type：Multi-mode Fiber
- Connection Structure：Can Be Customized
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
- Core：Single Core
Base Info
- Model NO.：Gjfv
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Fcj Opto Tech
- Sheath Material：Crosslinking
- Jacked Color：Blue, Orange, Green, White etc.
- Temperature Range：-20~70 Degree
- Transport Package：Carton Box
- Specification：2KM, 3KM
- Trademark：Fcj Opto Tech.
- Origin：China
- HS Code：854470000
- Production Capacity：8000km,Month
Description

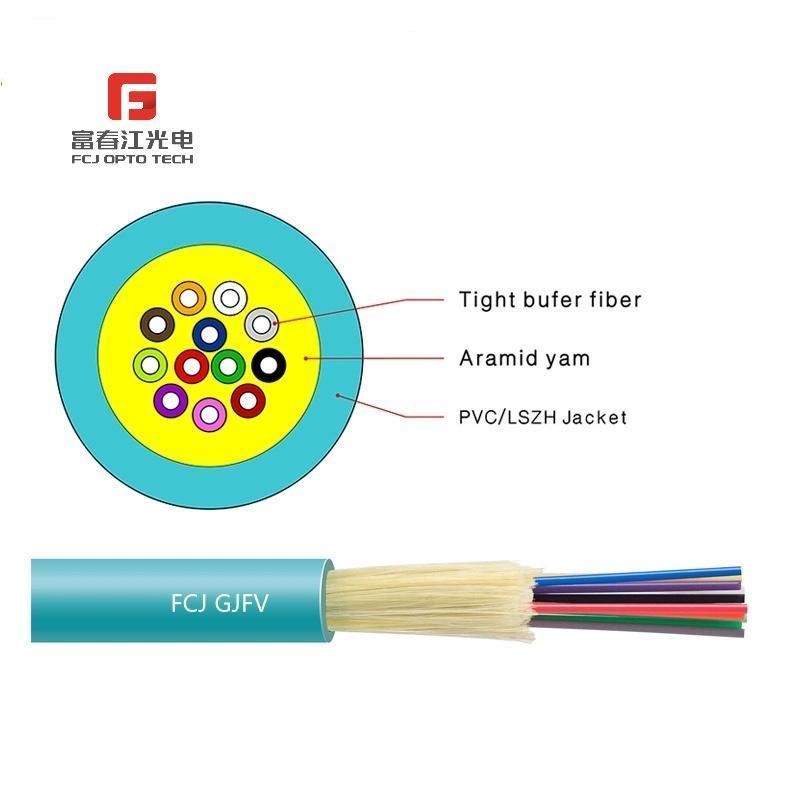

DescriptionIndoor distribution tight buffer cable are used for LAN connections, patch cords, MTP/MPO, pigtails and internal point-to-point links(data cabinets, equipment rooms, wall outlets and computers).
with 250um fibre, the cable is suitable for industry standard connectors and can be easily made
into assemblies for MTP/MPO patch cords.
they can also be supplied in PVC (OFNR & OFNP) or LSZH jackets
Products Features:
1.Good uniformity of the outer diameter of tight buffer fiber and excellent strippability.
2.Good performance of flame-retardant
3.Steady performance both in extremely high and low temperature.
4.Excellent geometrical dimension of the fiber.
Products Application:
1.Used in indoor/outdoor cabling
2.Used as drop cable
Storage/Operating Temperature : -20ºC to + 60ºC
| Parameters of fiber | Unit | SM G652 | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 |
| Waveband | nm | 1310/155 | 1310/155 | 850/1300 | 850/1300 | 850/1300 |
| Attenuation | dB/km | 0.36/0.23 | 0.36/0.23 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
