Electric Naked Conductor Copper AWG Size 2 Copper Wire 120mm 7/2.59mm
Henan Hongda Cable Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Copper
- Sheath Material：No Sheath
- Insulation Material：No Sheath
Base Info
- Model NO.：BCC COPPER CONDUCTOR
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CE, CCC
- Brand：Hongda
- Transport Package：Wooden Drum
- Specification：10mm 35mm
- Trademark：hongda
- Origin：China Henan
- HS Code：7413000000
- Production Capacity：20km , Day
Description
Basic Info.
Model NO. BCC COPPER CONDUCTOR Material Shape Round Wire Range of Application Overhead Certification ISO9001, CE, CCC Brand Hongda Transport Package Wooden Drum Specification 10mm 35mm Trademark hongda Origin China Henan HS Code 7413000000 Production Capacity 20km / DayProduct Description
electric naked conductor copper awg size 2 copper wire 120mm 7/2.59mm
We can supply the copper wire strand according to different recognized standards, such as IEC61089, BS215, BS EN 50182: 2001, STM B231, CSA C49, DIN480201, JIS C3109, customer special specification also can be satisfied.

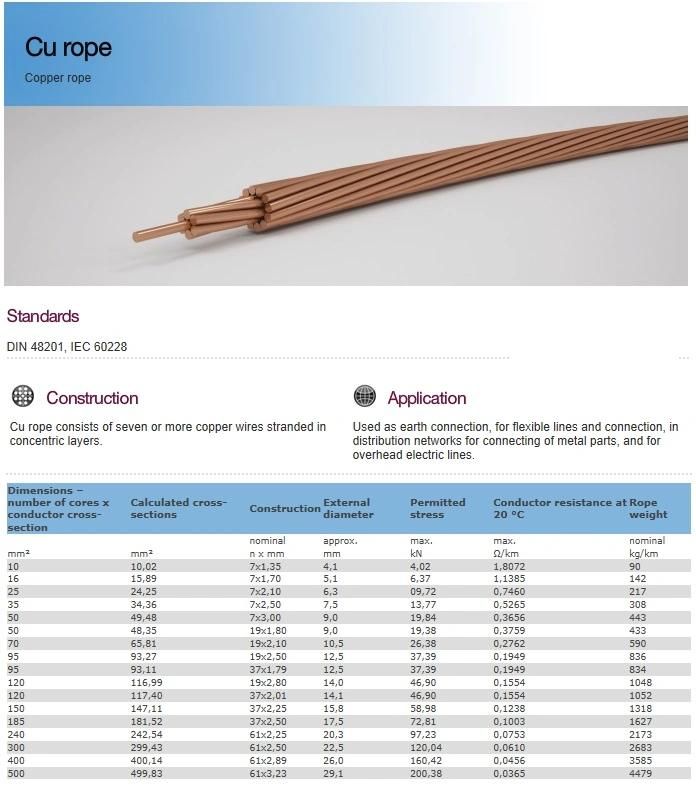

Construction:
*Solid or Concentric stranded bare Soft or Annealed Copper.
Installation:
*Soft drawn copper conductor can be installed in air.
Specification: Bare Copper Conductor, Stranded Copper Conductor
Standard: BS128, BS125, DIN48201, ASTM245, AS/NZS5000.1 IEC 60228
Package: Wooden Drum Package
Application: Overhead transmission system, overhead traction system, transformer system

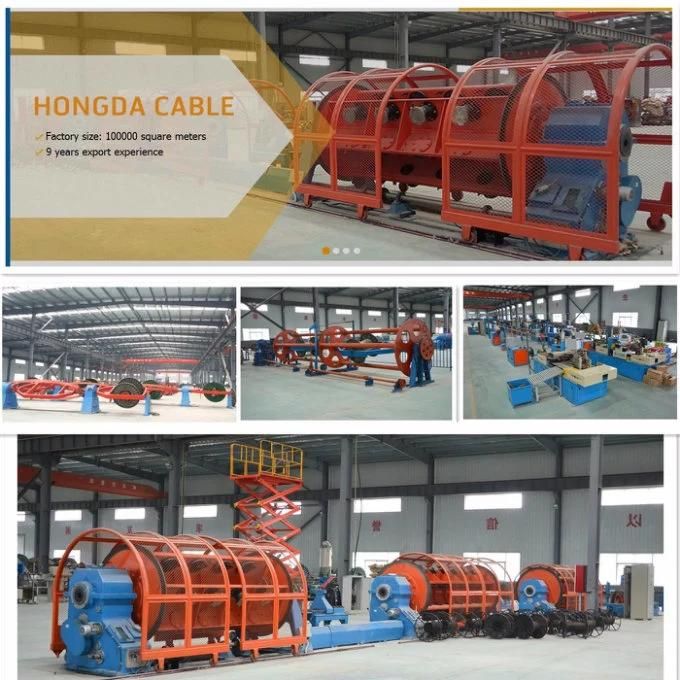

Factory information:
More information and other cable inquiry, pls contact us as follows:
Amy yang
HENEN HONGDA CABLE CO., LTD.
Factory: Huijin Rd & Changping Rd, East Development Zone, Zhandian, Jiaozuo 454950, China.
