Freetox Halogen-Free N2xoh 0, 6/1 Kv 3X120+1X70 mm2 Multipolar Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：LSZH
  • Material Shape：Round Wire

Base Info

  • Model NO.：N2XOH
  • Wire Core Material：Red Copper Wire
  • Certification：ISO, CCC, SGS
  • Model：Cable N2xoh
  • Brand：Hongda
  • Rated Voltage：0.6,1kv
  • Transport Package：500m,1000m Per Drum
  • Specification：2.5 to 630mm2
  • Trademark：Hongda,OEM
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：400km,Month

Description

Conductor materialCopper SoftInsulation materialXLPEExternal coverHalogen Free Thermoplastic CompoundCover colorBlackFree of halogensIEC 60754-1Halogen FreeYes
DIMENSIONAL CHARACTERISTICSNumber of phases3Section of Conductor120mm2Earth conductor. Section70mm2Conductor diameter13.0mmMinimum insulation thickness1.2Minimum Thickness insulation Conductor. Earth1.1Minimum thickness of cover1.6Diameter on cover39.1Total number of wires37Approximate weight4901kg/km
ELECTRICAL CHARACTERISTICSNominal service voltage Uo / U0.6/1kVTest Voltage3.5kVMaximum conductor resistance in DC at 20º C0,153Ohm/kmDuct Amperage at 20ºC295AAmperage buried at 20ºC345AAmperage in air at 30ºC355A
USE CHARACTERISTICS
Maximum operating temperature 90 ° C
Emergency overload temperature 130 ° C
Maximum temperature of the conductor in short-circuit 250 ° C

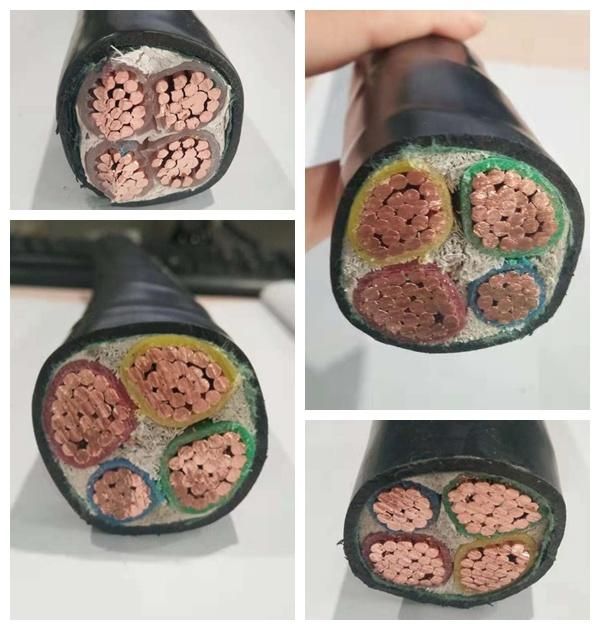

Freetox Halogen-Free N2xoh 0, 6/1 Kv 3X120+1X70 mm2 Multipolar Cable
