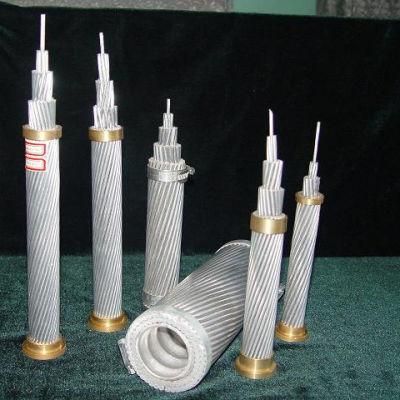

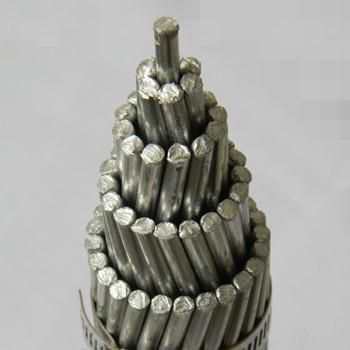

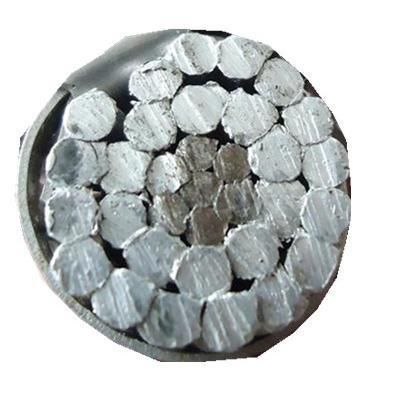

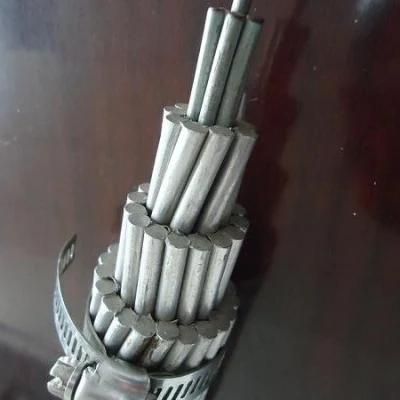

BS 215 Dingo Wolf 150mm2 ACSR Aluminium Conductor Steel Reinforce
YIFANG ELECTRIC GROUP INC.- Application：Power Station
- Voltage：High Voltage Cable
- Current：DC & AC
- Insulation Material：Bare
- Sheath Material：No
- Material Shape：Round Wire
Base Info
- Model NO.：ACSR
- Wire Core Material：Aluminium Conductor Steel Reinforced
- Certification：ISO, CCC
- Model：ACSR
- Brand：Yifang
- Strandard：BS 215
- Transport Package：Treated Wooden Drum
- Specification：Dingo Wolf 150mm2
- Trademark：YIFANG
- Origin：China
- HS Code：8544609000
- Production Capacity：10000m Per Week
Description
Overall
diameter Total Al. No. Al. Dia. St. No. St. Dia mm2 mm2 mm kg/km Mole 10 6 1.50 1 1.50 10.62 12.39 4.50 43 Squirrel 20 6 2.11 1 2.11 20.94 24.43 6.33 85 Gopher 25 6 2.36 1 2.36 26.24 30.62 7.08 106 Weasel 30 6 2.59 1 2.59 31.61 36.88 7.77 128 Fox 35 6 2.79 1 2.79 36.66 42.77 8.37 149 Ferret 40 6 3.00 1 3.00 42.41 49.48 9.00 172 Rabbit 50 6 3.35 1 3.35 52.88 61.70 10.05 214 Mink 60 6 3.66 1 3.66 63.18 73.71 10.98 255 Skunk 60 12 2.59 7 2.59 63.27 100.30 12.95 465 Beaver 70 6 3.99 1 3.99 74.82 87.29 11.97 302 Horse 70 12 2.79 7 2.79 73.37 116.20 13.95 538 Racoon 75 6 4.10 1 4.10 79.20 92.40 12.30 320 Otter 80 6 4.22 1 4.22 83.88 97.86 13.98 339 Cat 90 6 4.50 1 4.50 95.40 111.30 15.90 386 Hare 100 6 4.72 1 4.72 105.00 122.50 17.50 425 Dog 100 6 4.72 7 1.57 105.00 118.50 14.15 394 Hyena 100 7 4.39 7 1.93 105.80 126.20 14.57 450 Leopard 125 8 5.28 7 1.75 131.30 148.10 15.81 492 Coyote 125 26 2.54 7 1.91 132.10 152.20 15.89 522 Congar 125 18 3.05 1 3.05 130.30 137.50 15.25 419 Tiger 125 30 2.36 7 2.36 131.10 161.70 16.52 602 Dingo 150 18 3.35 1 3.35 158.70 167.50 16.75 506 Wolf 150 30 2.59 7 2.59 158.10 194.90 18.13 726 Caracal 175 18 3.61 1 3.61 184.30 194.50 18.05 587 Lynx 175 30 2.79 7 2.79 183.40 226.20 19.53 842 Jaguar 200 18 3.86 1 3.86 210.60 222.30 19.30 671 Panther 200 30 3.00 7 3.00 212.10 261.50 21.00 974 Lion 225 30 3.18 7 3.18 238.50 294.20 22.26 1095 Bear 250 30 3.35 7 3.35 264.00 325.60 23.45 1213 Goat 300 30 3.71 7 3.71 324.30 400.00 25.97 1489 Sheep 350 30 3.99 7 3.99 374.10 461.40 27.93 1718 Antilope 350 54 2.97 7 2.97 373.10 421.50 26.73 1411 Bizon 350 54 3.00 7 3.00 381.80 431.30 27.00 1444 Deer 400 30 4.27 7 4.27 429.30 529.50 28.89 1971 Zebra 400 54 3.18 7 3.18 428.90 484.50 28.62 1621 ELK 450 30 4.50 7 4.50 477.00 588.30 31.50 2190 Camel 450 54 3.35 7 3.35 475.20 536.80 30.15 1777 Moose 500 54 3.53 7 3.53 528.70 597.20 31.77 1999 Finch 500 54 3.65 19 2.29 564.70 642.90 33.35 2243
diameter
