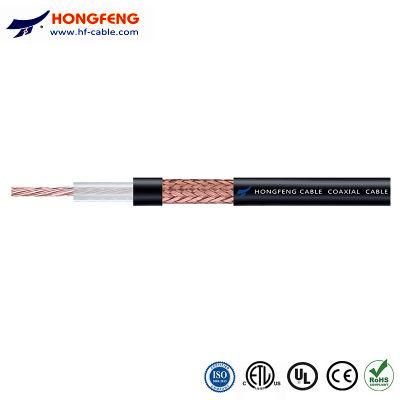

RG6 Coaxial Cable (CE RoHS UL ISO9001)
Hangzhou Hongfeng Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：RG6
- Wire Core Material：Tinned Wire
- Certification：CE, ISO, RoHS, UL
- Brand：Hongfeng
- HS Code：8544491100
- Production Capacity：30, 000piece,Year
Description
@ Frequency MHz
dB/100 ft. (MAX.)
dB/100 meters (MAX.)
5 MHz
0.58 dB
2.65 dB
55 MHz
1.60 dB
5.25 dB
83 MHz
1.95 dB
6.40 dB
187 MHz
2.85 dB
9.35 dB
211 MHz
3.05 dB
10.00 dB
250 MHz
3.30 dB
10.82 dB
300 MHz
3.55 dB
11.64 dB
350 MHz
3.85 dB
12.63 dB
400 MHz
4.15 dB
13.61 dB
450 MHz
4.40 dB
14.43 dB
500 MHz
4.66 dB
15.29 dB
550 MHz
4.90 dB
16.08 dB
600 MHz
5.10 dB
16.73 dB
750 MHz
5.65 dB
18.54 dB
865 MHz
6.10 dB
20.01 dB
1000 MHz
6.55 dB
21.49 dB
4. Application:
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.
5. Packing:
1) Packing Lengths:100/roll,200m/roll,300m/roll.305m/roll
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients'request
