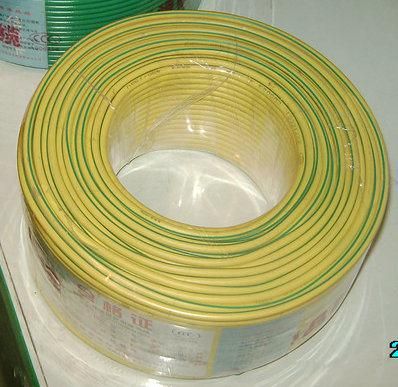

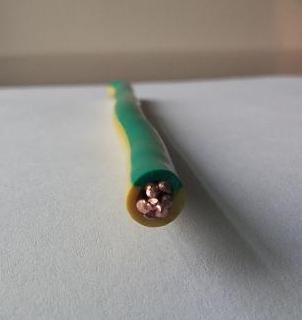

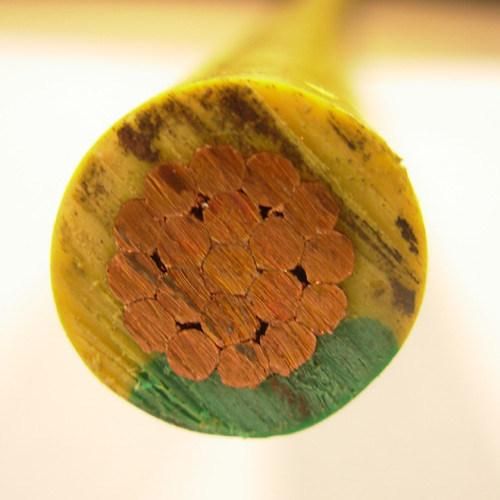

PVC Insulated Cable Copper Conductor Yellow Green Wire Grounding Wire
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：bv
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE
- Model：YJLV22
- Brand：Yifang
- Sheath Color：Black
- Transport Package：Drums or Circles or According to Your Request
- Specification：16mm2--630mm2
- Trademark：Yifang
- Origin：Zhengzhou, China
- HS Code：8544492100
- Production Capacity：500, 000 Kilometers Per Month
Description
Nominal Cross Section mm 2Main cores 2.5 4 6 10 16 25 35 50 Neutral cores 1.5 2.5 4 6 10 16 16 25 Nominal Cross Section mm 2 Main cores 70 95 120 150 185 240 300 400 Neutral cores 35 50 70 70 95 120 150 185
| Nominal Cross Section mm 2 | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 25 |
| Cu core Ohm/km | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 | 0.727 |
| Al core Ohm/km | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.91 | 1.2 |
| Nominal Cross Section mm 2 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Cu core Ohm/km | 0.524 | 0.387 | 0.268 | 0.193 | 0.153 | 0.124 | 0.0991 |
| Al core Ohm/km | 0.868 | 0.641 | 0.443 | 0.32 | 0.253 | 0.206 | 0.164 |
| Nominal Cross Section mm 2 | 240 | 300 | 400 | 500 | 630 | 800 | 1000 |
| Cu core Ohm/km | 0.0754 | 0.06 | 0.047 | 0.0366 | 0.0283 | 0.0221 | 0.0176 |
| Al core Ohm/km | 0.125 | 0.1 | 0.0778 | 0.0605 | 0.0469 | 0.0367 | 0.0291 |
