• Model NO.：H05VV-F Cable
• Material Shape：Round Wire
• Range of Application：Indoor or Outdoor Housing
• Certification：ISO9001, CE, UL, CCC, VDE
• Brand：Yifang
• Standards：BS 6500,BS7919,309 Y,Ts 9760, IEC 227, VDE 0281
• Conductor：Stranded Copper
• Cores Number：Two Core
• Color：Grey, Black or as Your Requirement
• Standard：IEC 60227 ,BS 6004
• Jacket：PVC Compound
• Transport Package：Coil, Roll, Reel, Drum. 100m,Roll or More
• Specification：3x1.5mm2
• Trademark：Yifang cable
• Origin：China
• HS Code：8544492100
• Production Capacity：60000km,Year

Basic Info.

Model NO. H05VV-F Cable Material Shape Round Wire Range of Application Indoor or Outdoor Housing Certification ISO9001, CE, UL, CCC, VDE Brand Yifang Standards BS 6500/BS7919/309 Y,Ts 9760, IEC 227, VDE 0281 Conductor Stranded Copper Cores Number Two Core Color Grey, Black or as Your Requirement Standard IEC 60227 ,BS 6004 Jacket PVC Compound Transport Package Coil, Roll, Reel, Drum. 100m/Roll or More Specification 3x1.5mm2 Trademark Yifang cable Origin China HS Code 8544492100 Production Capacity 60000km/Year

Product Description

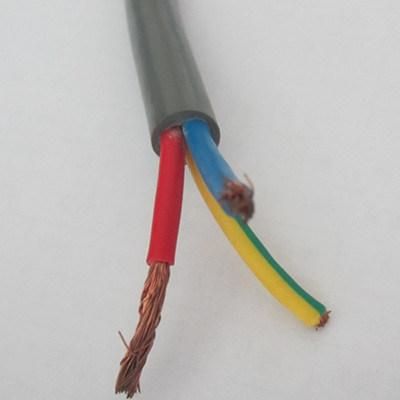

300/500V H05VV-F 2.5mm2 4mm2 CU/PVC Building Flexible Cable

Specifications:

Twin and Earth cable is a general fixed wiring and lighting cable, containing three conductors.

Standards:
BS 6500

Structure:

Conductor

Annealed copper class 5 flexible condcutor according to IEC60228(BS EN 60228)

Insulation

PVC

Sheath

PVC

Physical and Thermal Properties
Voltage Rating: 300V/500V
Test Voltage: 2000V
Temperature range During operation: 0C - +70°C
Short Circuit: 160°C
Minimum bending radius: 6 X Overall Diameter

Insulation resistance: 20 MΩ x km

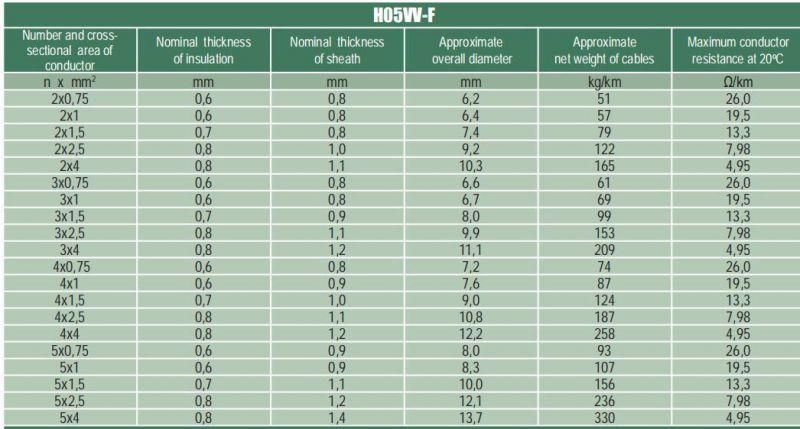

Cable Parameter:
