2*10 4*10mm2 0.5mm2 Service Cable with Communication Wires
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：YJV
- Brand：OEM,Hongda
- Color：as Your Need
- Transport Package：in Drum or in Coil
- Specification：16
- Trademark：OEM
- Origin：Henan
- HS Code：8544492100
- Production Capacity：10000 M Per Day
Description
Basic Info.
Wire Core Material Bare Copper Wire Certification ISO, CCC Model YJV Brand OEM/Hongda Color as Your Need Transport Package in Drum or in Coil Specification 16 Trademark OEM Origin Henan HS Code 8544492100 Production Capacity 10000 M Per DayProduct Description
| ITEM | SPECIFICATION (PARTICULARS | UNIT | Data |
| 1 | Insulation Voltage | V | 600/1000 |
| 2 | Conductor size | mm² | 16 |
| 3 | Phase Conductor material | N/A | Hard drawn Aluminium conductor -Single core |
| 4 | Insulation Material | N/A | XLPE |
| 5 | Earth wire material type | N/A | Bare Aluminium conductor |
| 6 | Rip Chord | N/A | Nylon |
| 7 | Reference Standards | N/A | SANS 1507, NRS 063, IEC 60502/228 ESI 09-7 |
| 8 | Phase conductor Insulation thickness | mm | 1.0 |
| Construction (Phase conductor) | |||
| 9 | Structure | mm | Single core |
| 10 | Insulation Thickness | mm | 1.0 |
| 11 | Reference Insulation O.D | mm | 7.1 |
| Construction (Earth Wire) | |||
| 12 | Structure | Numbers | 12 |
| 13 | Wire structure | N/A | 12/1.7 |
| Construction (Pilot/Communication Wires) | |||
| 14 | Structure | mm² | 4X0.5 |
| 15 | Reference Insulation O.D | mm | 1.13 |
| 16 | Conductor material | N/A | Copper |
| 17 | Insulation Material | N/A | LLPDE/XLPE |
| 18 | Number of conductors | Numbers | 4 |
| Construction (Sheath) | |||
| 19 | Nominal Thickness | mm | 1.6 |
| 20 | Reference Insulation O.D | mm | 14.5 |
| 21 | Sheath Material | N/A | LLPE Black UV stable/HQ PVC |
| Insulation material colours | |||
| 22 | Phase conductor | N/A | Red |
| 23 | Pilot wires (04) | N/A | Red, Green, White, Blue |
| 24 | Sheath | N/A | Black |
| Performance (Electrical Characteristics) | |||
| 25 | Phase Conductor - Maximum resistance at | ≤1.91 | |
| 26 | Earth Wires - - Maximum resistance at | ≤7.40 | |
| 27 | Pilot Wires - Maximum resistance at 20 | ≤36 |

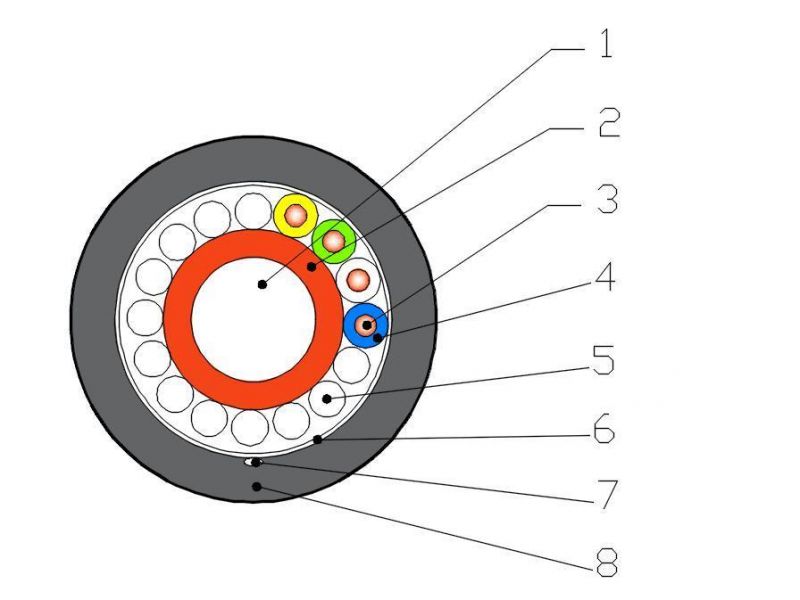

1.Phase conductor:Solidal 16sqm aluminum wire (diameter 4.50mm)
2.Insulation :XLPE (nominal thickness :1.0mm,color :red)
3.Pilot core plain annealed copper wire 0.5sqm(diameter 0.8mm )
4.Pilot core insulation diameter min 1.13(the actual approximation :1.7mm) LLDPE
5.Neutral conductor :solidal aluminum wire (12/1.31)
6.Binder tape :non-hygroscopic tape
7.Ripcord
8.Sheathed:LLDPE (nominal thickness :1.6mm, color black )
