4 Core Copper Rubber Sheathed Yz Yzw Chinese Power Cable Aluminium Control Electric Wire Waterproof Rubber Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground, Indoor Fixed Installations in Dry Locations
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：Rubber
Base Info
- Model NO.：YZW YZ
- Material Shape：Round Wire
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Rate Voltage：300,500V
- Temperature Range：-25 Degree Till +60 Degree
- OEM：Yes
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper
- Trademark：Feiya
- Origin：China
Description
Flexible Rubber Insulated Cable
Application:
H07RN-F flexible rubber cable is a heavy-duty rubber sheathed cable for use on heavy equipment, such as machine tools and agricultural machinery, cabel h07rn-f is exposed to high stress in dry and damp rooms as well as outdoors and in damp industrial environments. Constant, operational movements, the use of these cables in moving cable carriers, respectively on motor drum guides or a stress of more than 15 N/mm² is not permitted.
Standard:
EN 50525-2-21, EN 60228
Flame Retardant according toIEC/EN60332-1-2
Conductor: Class 5 flexible copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: PCP (Polychloroprene)
Voltage Rating (Uo/U): 450/750V
Temperature Rating :
Fixed: -30°C to +60°C
Fixed protected installations: +85°C
Flexed: -15°C to +60°C
Minimum Bending Radius:
Fixed: 4 x overall diameter
Flexed: 6 x overall diameter
H07RN-F Single Core Type 450/750V EPR/PCP Trailing Rubber Cable
| Core and Size (mm2) | Stranding (Number of Strand / Strand Diameter) | Thickness of Sheath (mm) | Nominal Overall Diameter (mm) | Approx Weight (kg/km) |
| 1x1.5 | 30/0.25 | 0.8 | 6 | 49 |
| 1x 2.5 | 50/0.25 | 0.9 | 6.6 | 63 |
| 1x4 | 56/0.30 | 1 | 7.6 | 92 |
| 1x6 | 84/0.30 | 1 | 8.3 | 115 |
| 1x10 | 80/0.40 | 1.2 | 10.7 | 189 |
| 1x16 | 126/0.40 | 1.2 | 12 | 260 |
| 1x25 | 196/0.40 | 1.4 | 14.1 | 369 |
| 1x35 | 276/0.40 | 1.4 | 15.8 | 500 |
| 1x50 | 396/0.40 | 1.6 | 18.3 | 689 |
| 1x70 | 360/0.50 | 1.6 | 20.7 | 918 |
| 1x95 | 475/0.50 | 1.8 | 23.4 | 1202 |
| 1x120 | 608/0.50 | 1.8 | 25.6 | 1489 |
| 1x150 | 756/0.50 | 2 | 28.3 | 1824 |
| 1x185 | 925/0.50 | 2.2 | 31 | 2202 |
| 1x240 | 1221/0.50 | 2.4 | 34.5 | 2847 |
| 1x300 | 1525/0.50 | 2.6 | 37.7 | 3495 |
| 1x400 | 2013/0.50 | 2.8 | 37.7 | 3495 |
| 1x500 | 1769/0.60 | 3 | 37.7 | 3495 |
| 1x630 | 2257/0.60 | 3 | 37.7 | 3495 |
H07RN-F 2 Core Type 450/750V EPR/PCP Trailing Rubber Cable
| Core and Size (mm2) | Stranding (Number of Strand / Strand Diameter) | Thickness of Sheath (mm) | Nominal Overall Diameter (mm) | Approx Weight (kg/km) |
| 2 X 1.0 | 32/0.20 | 0.8 | 8.4 | 98 |
| 2 X 1.5 | 30/0.50 | 0.8 | 9.4 | 116 |
| 2 X 2.5 | 50/0.25 | 0.9 | 11 | 164 |
| 2 X 4.0 | 56/0.30 | 1 | 12.8 | 232 |
| 2 X 6.0 | 84/0.30 | 1 | 14.2 | 297 |
| 2 X 10.0 | 80/0.40 | 1.2 | 20.4 | 573 |
| 2 X 16.0 | 126/0.40 | 1.2 | 23 | 774 |
| 2 X 25.0 | 196/0.40 | 1.4 | 27.4 | 1110 |
| 2 X 35.0 | 276/0.40 | 1.4 | 30.8 | 1474 |
H07RN-F 3 Core Type 450/750V EPR/PCP Trailing Rubber Cable
| Core and Size (mm2) | Stranding (Number of Strand / Strand Diameter) | Thickness of Sheath (mm) | Nominal Overall Diameter (mm) | Approx Weight (kg/km) |
| 3 X 1.0 | 32/0.20 | 0.8 | 9 | 108 |
| 3 X 1.5 | 30/0.50 | 0.8 | 10.3 | 141 |
| 3 X 2.5 | 50/0.25 | 0.9 | 11.8 | 200 |
| 3 X 4.0 | 56/0.30 | 1 | 13.7 | 285 |
| 3 X 6.0 | 84/0.30 | 1 | 15.2 | 371 |
| 3 X 10.0 | 80/0.40 | 1.2 | 21.9 | 712 |
| 3 X 16.0 | 126/0.40 | 1.2 | 24.7 | 971 |
| 3 X 25.0 | 196/0.40 | 1.4 | 29.4 | 1394 |
H07RN-F 4 Core Type 450/750V EPR/PCP Trailing Rubber Cable
| Core and Size (mm2) | Stranding (Number of Strand / Strand Diameter) | Thickness of Sheath (mm) | Nominal Overall Diameter (mm) | Approx Weight (kg/km) |
| 4 X 1.0 | 32/0.20 | 0.8 | 10 | 134 |
| 4 X 1.5 | 30/0.25 | 0.8 | 11.2 | 174 |
| 4 X 2.5 | 50/0.25 | 0.9 | 12.6 | 249 |
| 4 X 4.0 | 56/0.30 | 1 | 15.1 | 361 |
| 4 X 6.0 | 84/0.30 | 1 | 16.9 | 480 |
| 4 X 10.0 | 80/0.40 | 1.2 | 24 | 890 |
| 4 X 16.0 | 126/0.40 | 1.2 | 27 | 1225 |
| 4 X 25.0 | 196/0.40 | 1.4 | 32.6 | 1792 |
| 4 X 35.0 | 276/0.4 | 1.4 | 36.5 | 2380 |
| 4 X 50.0 | 396/0.4 | 1.6 | 42 | 3635 |
| 4 X 70.0 | 360/0.5 | 1.6 | 49 | 4830 |
| 4 X 95.0 | 475/0.5 | 1.8 | 55 | 6320 |
H07RN-F 5 Core Type 450/750V EPR/PCP Trailing Rubber Cable
| Core and Size (mm2) | Stranding (Number of Strand / Strand Diameter) | Thickness of Sheath (mm) | Nominal Overall Diameter (mm) | Approx Weight (kg/km) |
| 5 X 1.0 | 32/0.20 | 0.8 | 11 | 170 |
| 5 X 1.5 | 30/0.50 | 0.8 | 12.3 | 218 |
| 5 X 2.5 | 50/0.25 | 0.9 | 14.5 | 309 |
| 5 X 4.0 | 56/0.30 | 1 | 16.9 | 450 |
| 5 X 6.0 | 84/0.30 | 1 | 18.8 | 595 |
| 5 X 10.0 | 80/0.40 | 1.2 | 26.5 | 1100 |
| 5 X 16.0 | 126/0.40 | 1.2 | 30 | 1528 |
| 5 X 25.0 | 196/0.40 | 1.4 | 36 | 2200 |
| 5 X 35.0 | 276/0.40 | 1.4 | 40 | 2925 |
H07RN-F Multicore Type 450/750V EPR/PCP Trailing Rubber Cable
| Core and Size (mm2) | Stranding (Number of Strand / Strand Diameter) | Thickness of Sheath (mm) | Nominal Overall Diameter (mm) | Approx Weight (kg/km) |
| 7 X 1.5 | 30/0.50 | 0.8 | 14.6 | 295 |
| 7 X 2.5 | 50/0.25 | 0.9 | 16.6 | 410 |
| 12 X 1.5 | 30/0.50 | 0.8 | 18.9 | 500 |
| 12 X 2.5 | 50/0.25 | 0.9 | 22 | 720 |
| 19 X 1.5 | 30/0.50 | 0.8 | 22.5 | 715 |
| 19 X 2.5 | 50/0.25 | 0.9 | 26 | 1030 |
| 24 X 1.5 | 30/0.50 | 0.8 | 25 | 900 |
| 24 X 2.5 | 50/0.25 | 0.9 | 29 | 1350 |
| 27 X 1.5 | 30/0.50 | 0.8 | 29 | 1100 |
| 27 X 2.5 | 50/0.25 | 0.9 | 33 | 1521 |
| 37 X 1.5 | 30/0.50 | 0.8 | 29.8 | 1300 |
| 37 X 2.5 | 50/0.25 | 0.9 | 36 | 1900 |

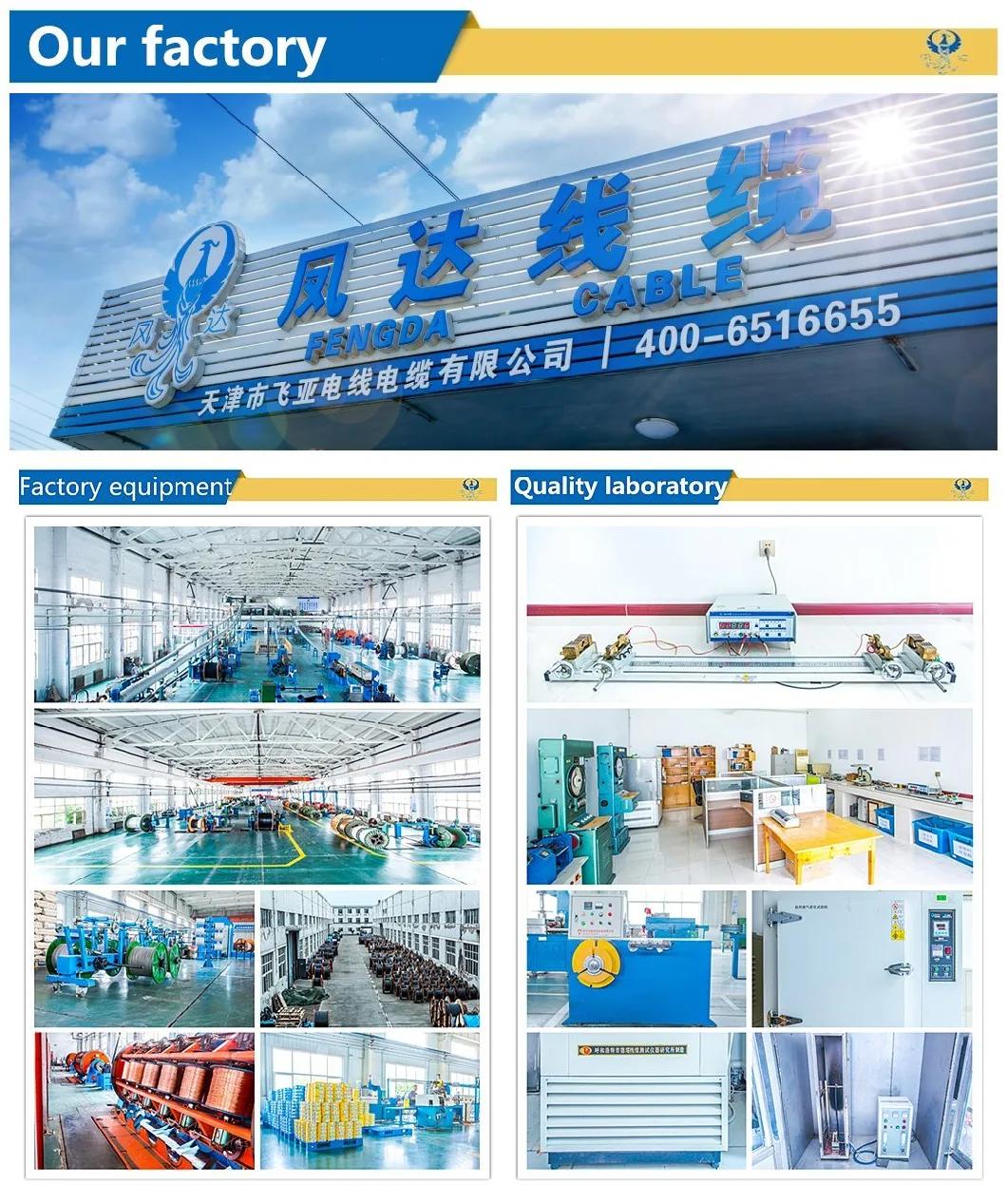

Tianjin Feiya Wire & Cable Co., Ltd was founded in 1998, and is headquartered in Tianjin, the Chinese port metropolis. The company occupies an area of 50,000 square meters, has a registered capital of 101 million yuan and 200 employees, among whom there are 20 engineering and technical employees.
The company has 4 subsidiary companies and over 300 agencies. We are a professional cable developer and manufacturer in China.
Our products mainly cover low, medium and high voltage (KV) XLPE insulated power cables, PVC insulated power cables, PVC insulated wires (construction cables), control cables, signal cables, rubber cables, coal mine cables, welding cables, ship cables and other relevant customized cables. These cables are used in various fields including electric power metallurgy, petrochemical industry, national defense power stations, mines, port and construction engineering, etc.
