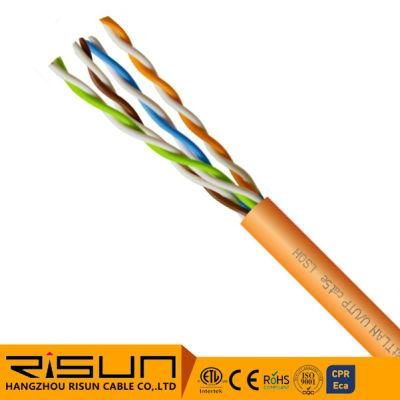

Best Price CCA Cat5e UTP Network Cable with Colorful Sheath

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC,LSZH,PE
  • Type：Cat5e
  • Material Shape：Round Wire
  • Conductor Type：Solid, Strand

Base Info

  • Model NO.：UTP Cat5e Cable
  • Wire Core Material：CCA
  • Certification：CE, ISO, RoHS, ETL SGS CPR
  • Brand：Risun or OEM
  • Color：as Your Request
  • Transport Package：305m,Pull Box, 2 Pull Box,CTN.
  • Trademark：OEM or Risun
  • Origin：Hangzhou, China(Mainland)
  • HS Code：8544491100
  • Production Capacity：20000box,Month

Description

Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10MPa


Electrical Properties:

Conductor Resistance≤9.5 Ω/100mResistance Unbalance≤2%Insulation Resistance≥5000 MΩ·KMCapacitance≤5.6 nF/100mImpedance100 ± 15 ohmSpark Test2000VVelocity of Propagation69%


Technical Performance:

Frequency         Attenuation         RL    Next        PS Next    (MHz)          (≤dB/100M)        (≥dB)    (≥dB)         (≥dB)       4               4.1        23.0    56.3          53.3       8               5.8        24.5    51.8          48.8      10               6.5        25.0    50.3          47.3      16               8.2        25.0    47.2          44.2      20               9.3        25.0    45.8          42.8      25              10.4        24.3    44.3          41.3   31.25              11.7        23.6    42.9          39.9     62.5              17.0        21.5    38.4          35.4     100              22.0        20.1    35.3          32.3





Best Price CCA Cat5e UTP Network Cable with Colorful Sheath

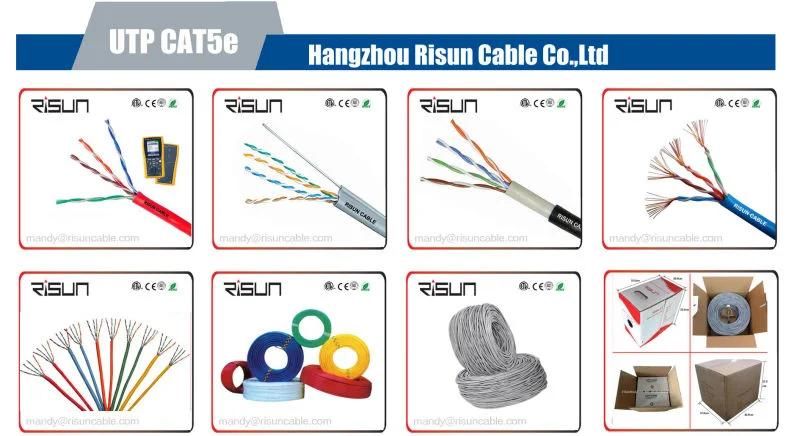

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.




Best Price CCA Cat5e UTP Network Cable with Colorful Sheath
Best Price CCA Cat5e UTP Network Cable with Colorful Sheath

 WELCOME TO RISUN


Risun is a manufacturer and exporter of high quality Lan cable/Network cable,coaxial cable, alarm cable and telephone cable in China.

95% of our goods for the export market. 17 years of experience in this field makes us very familiar with export handling. We have already get ETL, CE, Rohs, ISO9001 certification.


Why Risun?
1. We have already provided cables for More than 100 customers in 40 countries in the past 10 years. It makes us very familiar with exporting rules.
2. Factory audited by SGS, INTERTEK.
3. Products through CE , ETL & RoHS certification.
4. Manufacturer's direct pricing.
5. Custom Design and Packaging

Our Tenet: If we can not be the best, we be the most suitable.
