• Transport Package：Drum Circles or According to U Request
• Specification：Iec Bs ASTM DIN CSA as and So on
• Trademark：YIFANG CABLE
• Origin：Zhengzhou, China
• HS Code：8544492100
• Production Capacity：500, 000kilometers Per Month

Basic Info.

Transport Package Drum Circles or According to U Request Specification Iec Bs ASTM DIN CSA as and So on Trademark YIFANG CABLE Origin Zhengzhou, China HS Code 8544492100 Production Capacity 500, 000kilometers Per Month

Product Description

Aire Bundled Conductor ABC Cable

Product Details:
Insulation Material XLPE
Application Overhead
Jacket NON SHEATH
Conductor Material Aluminum
Type Low Voltage
Place of Origin Henan China
Brand Name YIFANG
Model Number DUPLEX, TRIPLEX, QUADRUPLEX

Payment & Shipping Terms:
Payment Terms: L/C, T/T

1. Application of Aerial Bundle Cable:
Aerial Bundle Cable are used for electric power transmission, extensively used for rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.

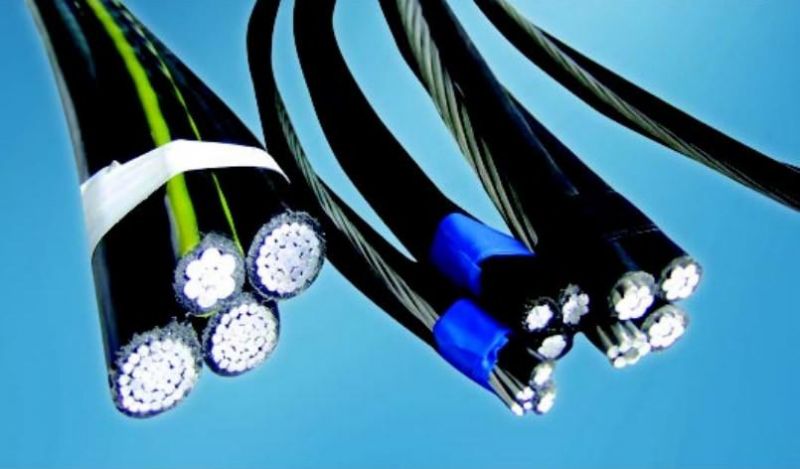

2. Type of Aerial Bundle Cable:
Aerial Bundle Cable covers mainly three types:

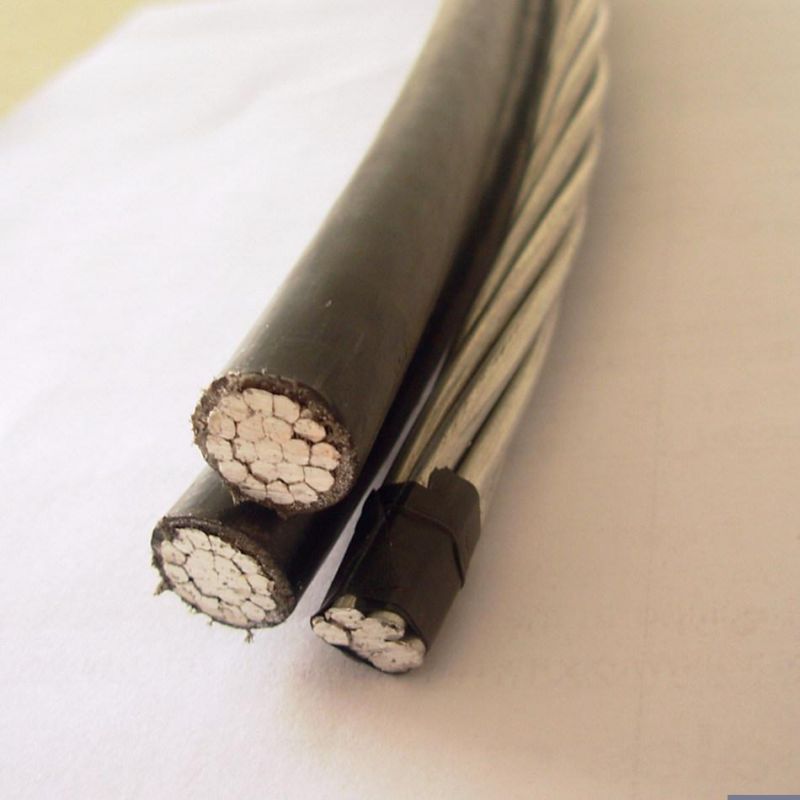

Two core(Duplex Service Drop)
Three core(Triplex Service Drop)
Four core(Quadruplex Service Drop)
The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor, etc. And we can still produce the cables according to the request of customers.

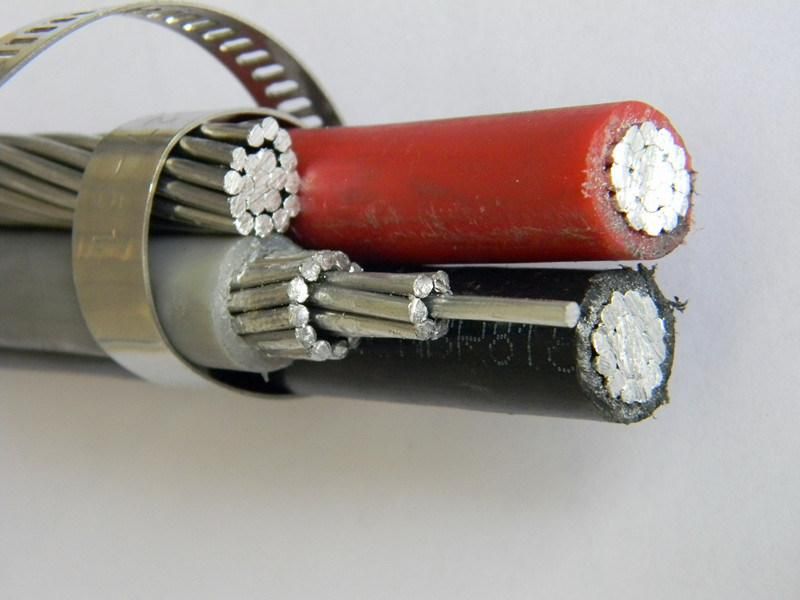

3. Construction of Aerial Bundle Cable:
Rated voltage 0.6/1kv
Phase conductor: Aluminium conductor
Insulation: PVC or PEe or XLPE
Neutral Bare Conductor: AAC, ACSR, AAAC.

Nominal Cross Section mm 2	1.5	2.5	4	6	10	16	25
Cu core Ohm/km	12.1	7.41	4.61	3.08	1.83	1.15	0.727
Al core Ohm/km	18.1	12.1	7.41	4.61	3.08	1.91	1.2
Nominal Cross Section mm 2	35	50	70	95	120	150	185
Cu core Ohm/km	0.524	0.387	0.268	0.193	0.153	0.124	0.0991
Al core Ohm/km	0.868	0.641	0.443	0.32	0.253	0.206	0.164
Nominal Cross Section mm 2	240	300	400	500	630	800	1000
Cu core Ohm/km	0.0754	0.06	0.047	0.0366	0.0283	0.0221	0.0176
Al core Ohm/km	0.125	0.1	0.0778	0.0605	0.0469	0.0367	0.0291

CertificationsProduction Equipment

Test Equipment
Our Services

1. Sufficient support for our tendering representatives.

2. Qualification documents support

3. OEM service available based on official & legal authorization.

4. Strict quality control system.

5. Faster lead time than our competitors.

6. Excellent quality with reasonable price.

7. Strong technical support (technical data, drawing, etc.)

8. Cable solutions to your particular requirements.

9. Free sample is available with economic express fee.

10. Factory acceptance test assistant

11. Container loading design and handling

FAQ

Why choose us ?

1. Geographical location and convenient transportation, saving transportation costs

2. Full range of products, good reputation.

3. The leading edge technology. Different dedicated engineers and technicians for factory production, domestic sales and foreign sales, service and other jobs.

4. The sophisticated management system and management team. ISO9001,14001 and GB / T28001 passed. Computer management system for sales and production, etc.

5. Advanced service concept and positive attitude.
