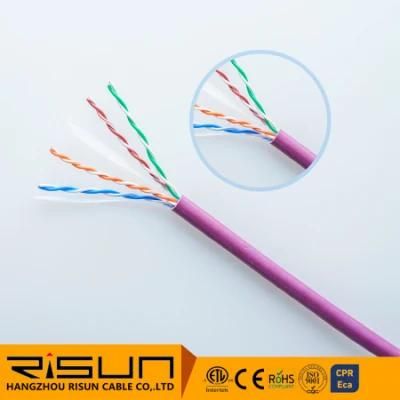

4 Pairs UTP CAT6 LAN Cable with Good Price
Hangzhou Risun Cable Co., Ltd.- Conductor Material：Bc, CCA, Tc,
- Cover Material：PVC,PE,LSZH
- Type：Cat 6
- Conductor Type：Solid
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, ETL SGS CPR
Base Info
- Model NO.：UTP Cat6
- Brand：Risun or OEM
- 23AWG：305m
- UTP CAT6：RJ45 Cable
- Patch Cord：Network Cable
- Transport Package：305m,Pull Box, 2boxes,CTN.
- Specification：ETL, CE, RoHS, SGS, ISO9001
- Trademark：RISUN or OEM
- Origin：Hangzhou, Zhejiang, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
ConstructionConductor 23AWG (Solid or Strand) CU/CCA Insulation HDPE 1.04 ± 0.03mm Cores/Pairs 8/4 Sheath 6.30+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE
| Mechanical Properties | |
| Elongation | Min. 300% |
| Temperature Range | -20 up to +75° C |
| Tensile strength | Min. 1.68Kg/mm2 |
| Electrical Properties (at 20°C) | |
| Conductor Resistance | Max. 9.38 ohm/100m |
| Resistance Unbalance | Max. 2% |
| Insulation Resistance | 150 ohm/KM |
| Mutual Capacitance | Max. 5600pF/100m |
| Cpacitance Unbalance | Max. 330pF/100m |
| Impendance | 100+/-15 ohm |
| Spark Test | 2000V |
| Velocity Propagation | 67% |
| Attenuation | RL | Next | PS Next | |
| (MHz) | (db/100m) | (db) | (db) | (db/100m) |
| 1MHz | 2.0 | 20 | 65.3 | 63.5 |
| 4MHz | 4.1 | 23 | 56.3 | 54.2 |
| 8MHz | 5.8 | 24.5 | 52.4 | 50.5 |
| 10MHz | 6.6 | 25 | 51.3 | 49.2 |
| 16MHz | 8.2 | 25 | 49.3 | 47.4 |
| 20MHz | 9.3 | 25 | 48.8 | 46.9 |
| 25MHz | 10.4 | 24 | 45.3 | 43.4 |
| 31.25MHz | 11.7 | 23 | 43.0 | 41.8 |
| 62.5MHz | 17.0 | 21 | 39.2 | 37.2 |
| 100MHz | 22.0 | 20 | 36.3 | 34.4 |
| 155MHz | 28.1 | 19 | 35.5 | 33.6 |
| 200MHz | 32.4 | 19 | 31.8 | 29.9 |
| 240MHz | 36.0 | 18 | 30.6 | 28.7 |
| 300MHz | 41.0 | 18 | 29.2 | 27 |
| 350MHz | 44.9 | 17 | 28.0 | 25.6 |
