• Model NO.：SHIHM-150w-230v
• Material Shape：Round Wire
• Range of Application：LSOH

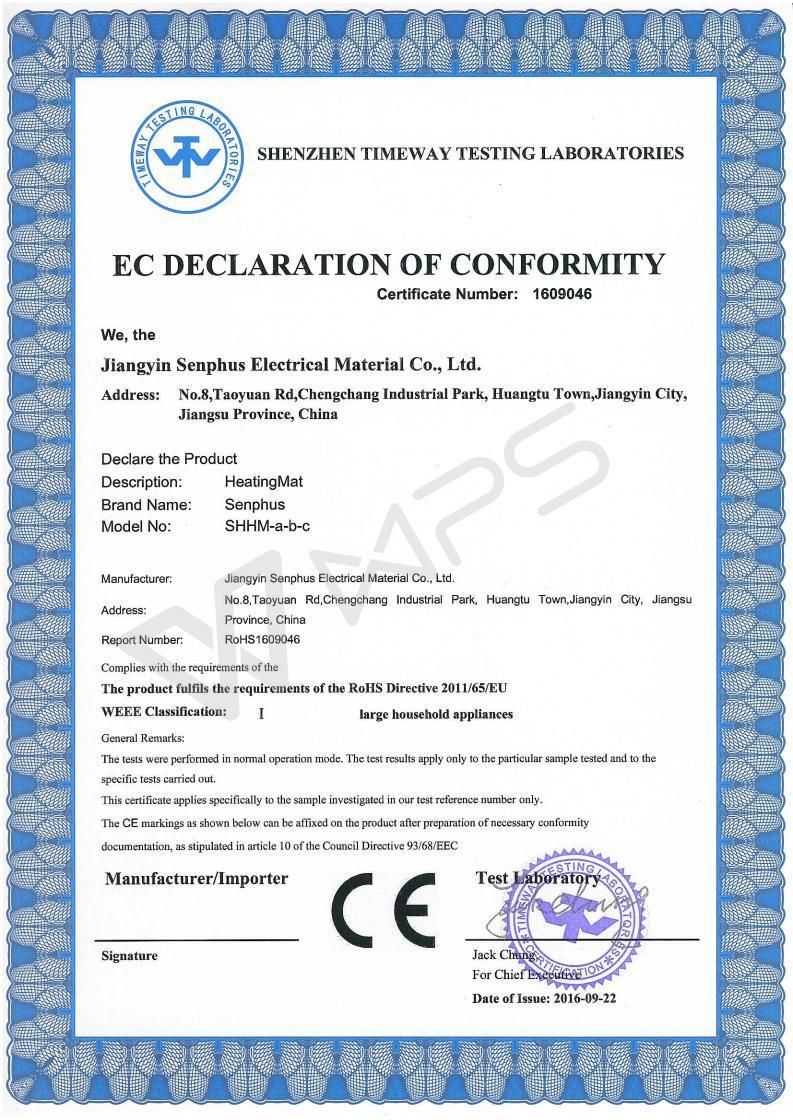

• Certification：ISO9001, CE, VDE
• Brand：Senphus
• Floor Heating Cable Color：White, Red, Yellow, etc. If You Need Other Color
• Power：1m 10W-25W You Choose
• Floor Heating Wire Cable Power：1 Square Meter 80W-200W You Choose
• Cold Cable Length：2m, 3m, 4m, etc.
• Electric Underfloor Heating Cable Models：3m, 5m, 7m, 9m, 15m, 20m, You Choose
• Heating Cable Color：Blue, Orange, Red, Purple, Rose, etc
• Transport Package：Caton-Woodcase-Pallet-Colourbox-White
• Specification：0.5*2-0.5*24
• Trademark：SENPHUS
• Origin：China
• HS Code：85168000
• Production Capacity：8000 Square Meter Per Day

Basic Info.

Model NO. SHIHM-150w-230v Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, VDE Brand Senphus Floor Heating Cable Color White, Red, Yellow, etc. If You Need Other Color Power 1m 10W-25W You Choose Floor Heating Wire Cable Power 1 Square Meter 80W-200W You Choose Cold Cable Length 2m, 3m, 4m, etc. Electric Underfloor Heating Cable Models 3m, 5m, 7m, 9m, 15m, 20m, You Choose Heating Cable Color Blue, Orange, Red, Purple, Rose, etc Transport Package Caton-Woodcase-Pallet-Colourbox-White Specification 0.5*2-0.5*24 Trademark SENPHUS Origin China HS Code 85168000 Production Capacity 8000 Square Meter Per Day

Product Description

Warm Floor Heating Systems CE and VDE approved
Senphus Group can produce all kinds of  warm floor heating systems with different materials and many different equipments and machines.
Custom is welcome.
At present, we only offer installation service in China.
if you have large quantities, and we can offer free installation service in abroad






Voltage	Square meters	Power	Ohm	Length(m)
230V	1	150	352.7	11.1
230V	1.5	225	235.1	16.65
230V	2	300	176.3	22.2
230V	2.5	375	141.1	27.75
230V	3	450	117.6	33.3
230V	3.5	525	100.8	38.85
230V	4	600	88.2	44.4
230V	4.5	675	78.4	49.95
230V	5	750	70.5	55.5
230V	5.5	825	64.1	61.05
230V	6	900	58.8	66.6
230V	7	1050	50.4	77.7
230V	8	1200	44.1	88.8
230V	9	1350	39.2	99.9
230V	10	1500	35.3	111
230V	12	1800	29.4	133.2







Installation advice

1.All electrical wiring must be done by a fully qualified electrician and in accordance with the current IEE.

2.The insulation Board must be installed if you have a wooden substrate.It is also commendatory with concrete substrates to optimize efficiency and reduce warming times(up to 50% more thermally efficient).

3.Always round down your floor space area e.g.2.6m²of floor will require 2m²of matting (To avoid surplus matting).

4.Never overlap the mat ,always ensure a min.50mm spacing between the wires for optimum heat distribution.

5.If there is a matting shortfall in your floor space then concentrate the heat mat in heavily trafficked areas.

6.A Residual Current Device (RCD) should be used with this system (must be bought separately).

7.Floor must be clean and free from dust &dirt.

8. Never cut the red wire or join two or more mats together in series, use a junction box.
Only use scissors when cutting the mesh.

9.The wire is tough but extra care must be taken when using sharp objects near the mat. A plastic trowel is advisable.

10.Check your system with a mufti-meter before tile installation.

11.Ensure your tile adhesive is suitable for use with under tile heating e.g.highly polymer modified (flexible).

Your substrate and floor covering,e.g.tile adhesive or screed, must be comm.Katelyn dry before switching on your system for the first time.
Wear gloves when handing the mat (to avoid irritation to skin).

Take care when tiling to ensure you do not dislodge or damage the wire from the mesh mat.

The insulation board is not suitable for floor strengthening and structural reinforcing.

Matting and Insulation Board should not be passed under permanent fixings e.g.bath,toilet etc.

Do not store objects on top of the matting during installation e.g.tiles.
Remove old floor coverings
